Inspection

Inspection

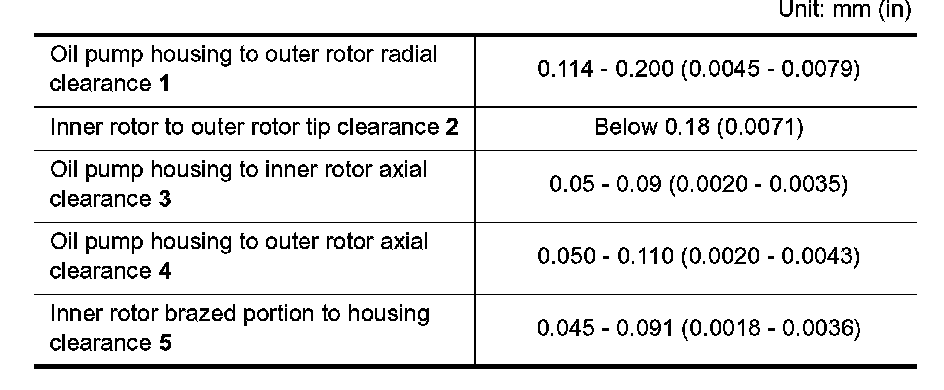

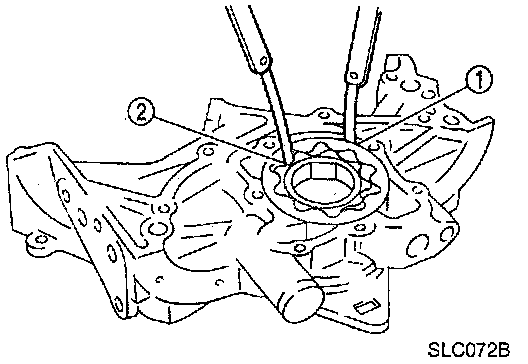

Using a feeler gauge, straightedge and micrometers, check the following clearances:
^ If the tip clearance (2) exceeds the limit, replace rotor set.

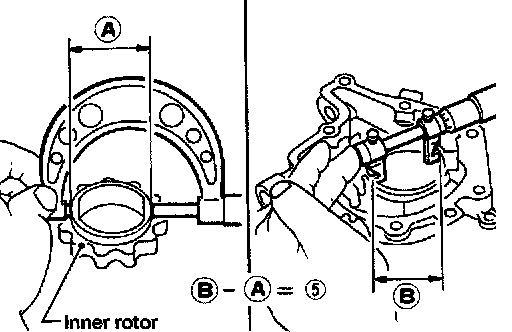

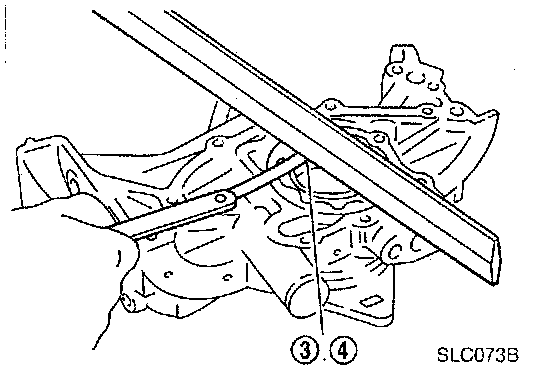

^ If body to rotor clearances (1, 3, 4, 5) exceed the limit, replace oil pump body assembly.
