Removal and Installation

Components

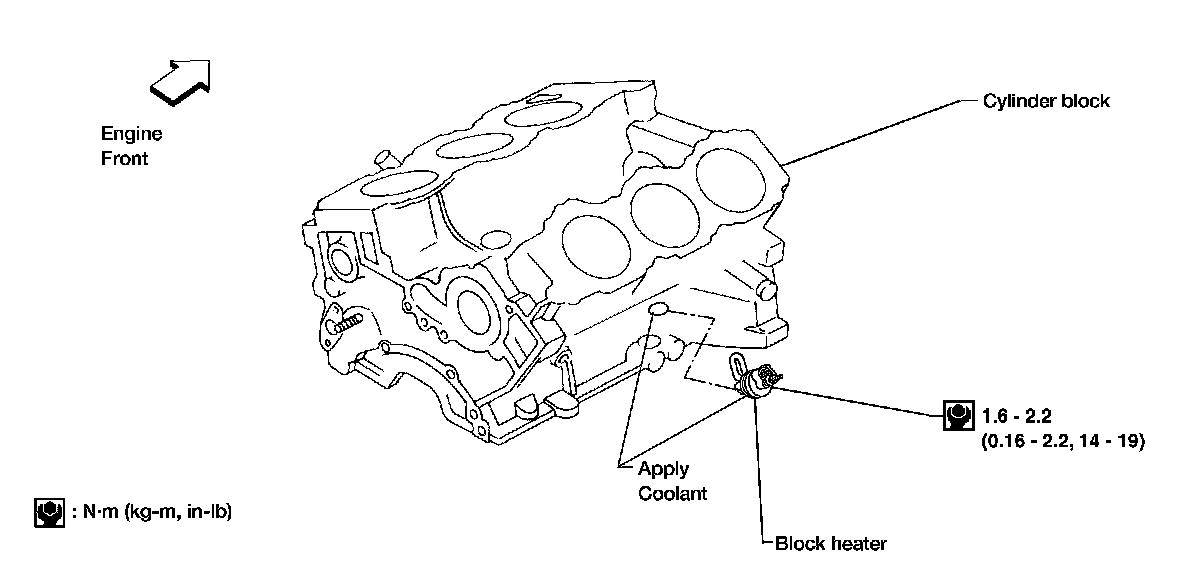

Canada Models-Block Heater

Removal and Installation

CAUTION:
^ When installing the sliding parts such as bearings and pistons, be sure to apply engine oil on the sliding surfaces.
^ Label the removed parts, such as bearings and bearing caps, in their proper order and direction for installation back in their original positions.
^ When installing the connecting rod bolts and main bearing cap bolts, apply new engine oil to the threads and seating surfaces.
^ Do not allow any magnetic materials to contact the ring gear teeth on the drive plate and rear plate.
