Brake Hose/Line
Brake Hose/Line

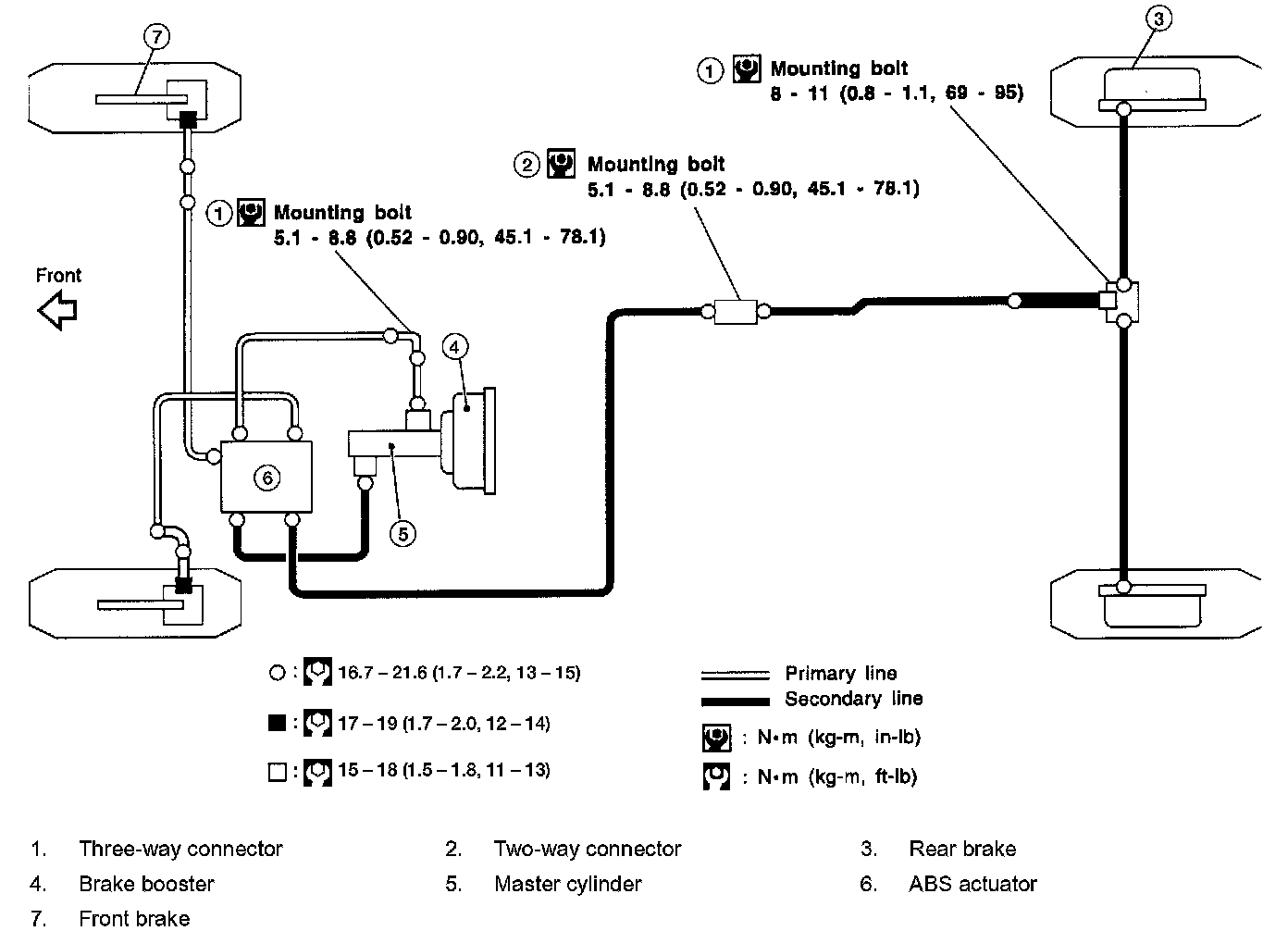

BRAKE PIPING AND HOSE / HYDRAULIC CIRCUIT (4x2 & 4x4 With M/T):

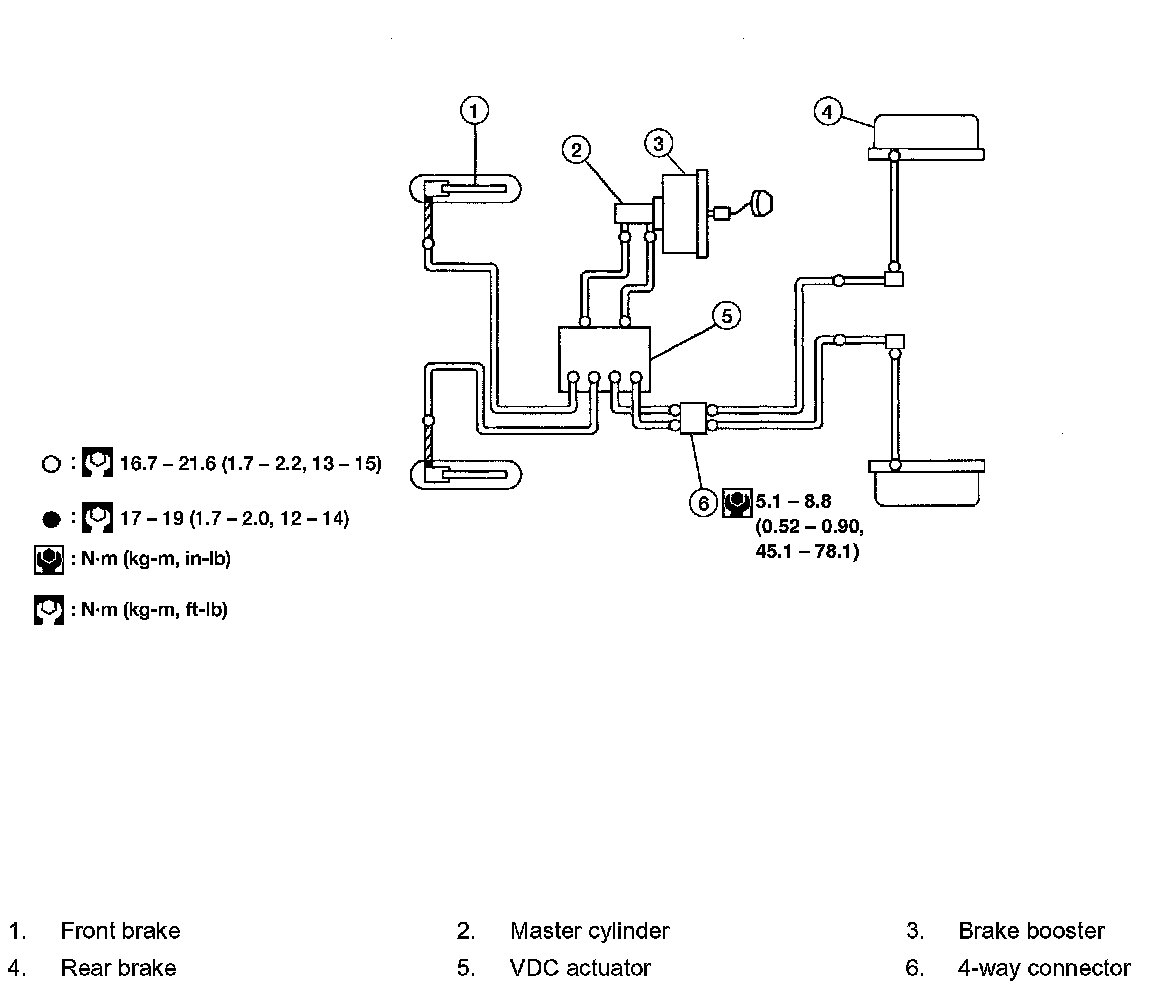

BRAKE PIPING AND HOSE / HYDRAULIC CIRCUIT (4x4 With A/T And VDC):
