Automatic Transmission/Transaxle
>>
Clutch, A/T
Clutch, A/T

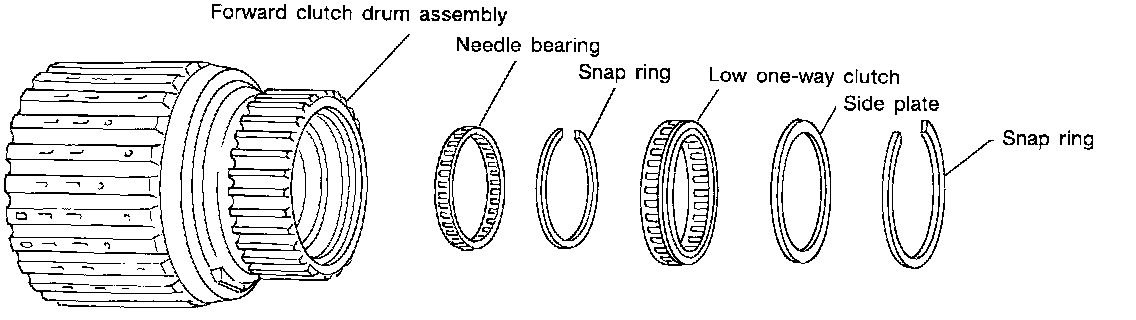

FORWARD CLUTCH DRUM ASSEMBLY:
FORWARD AND OVERRUN CLUTCHES:

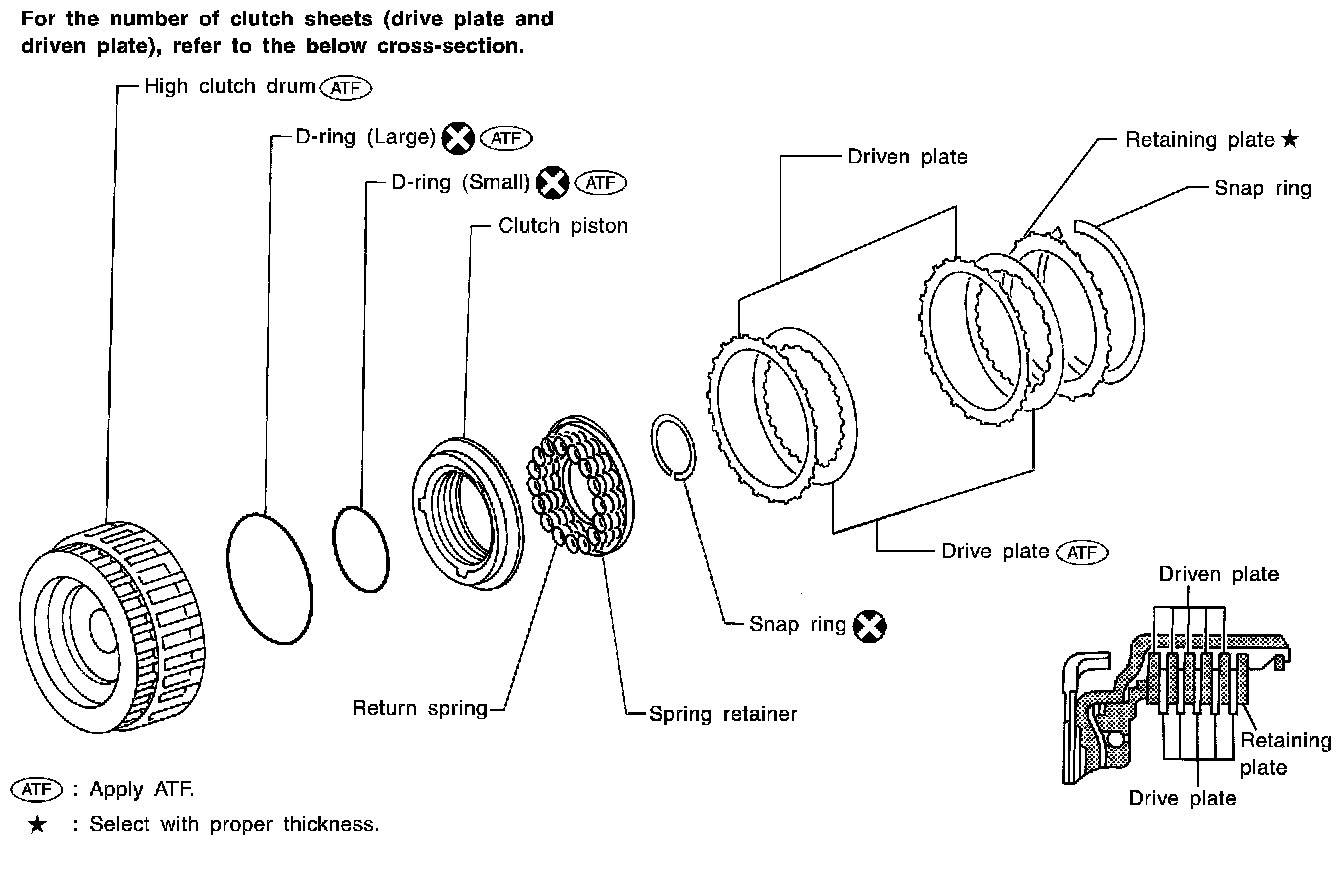

HIGH CLUTCH:

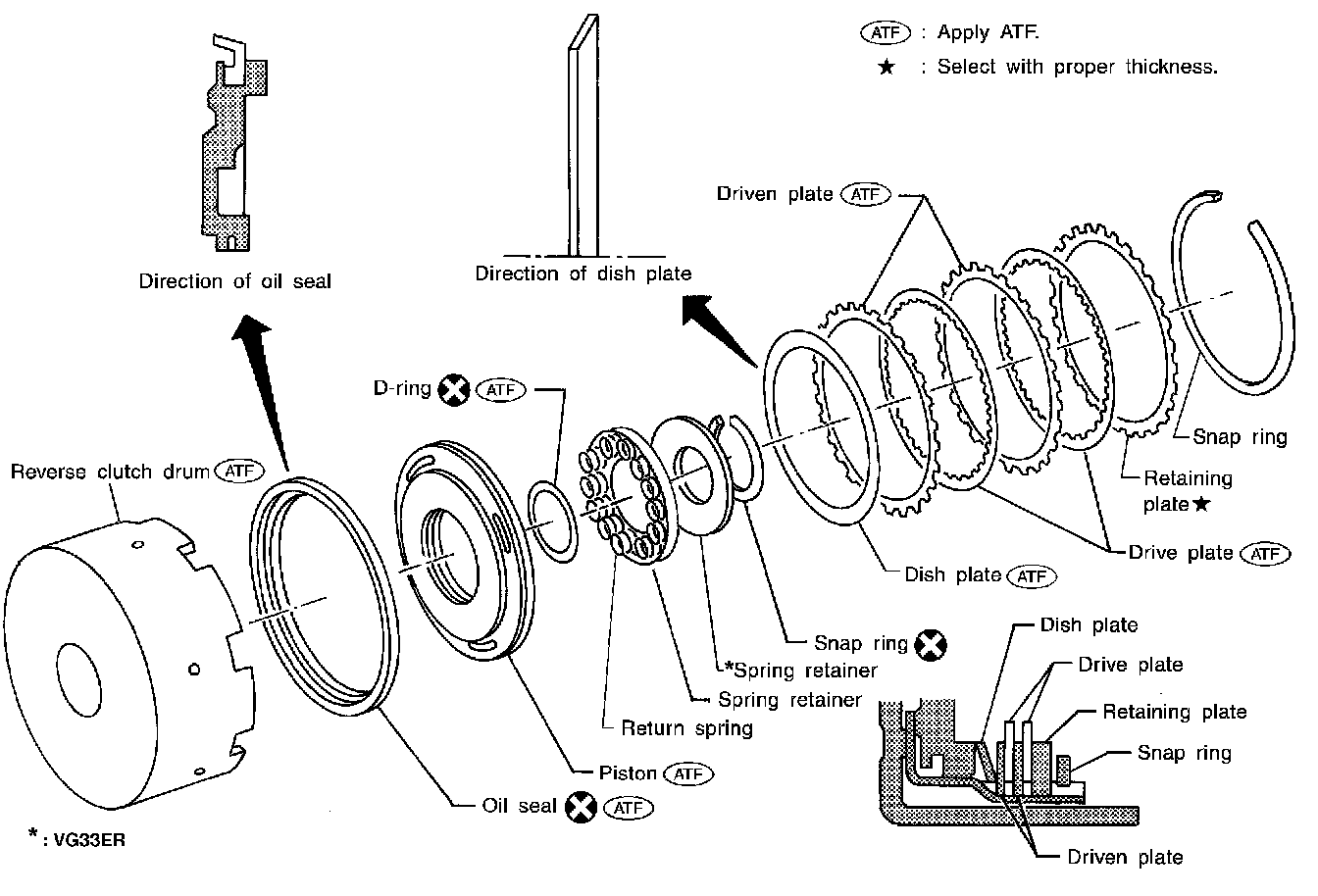

REVERSE CLUTCH:
