Tire Monitoring System

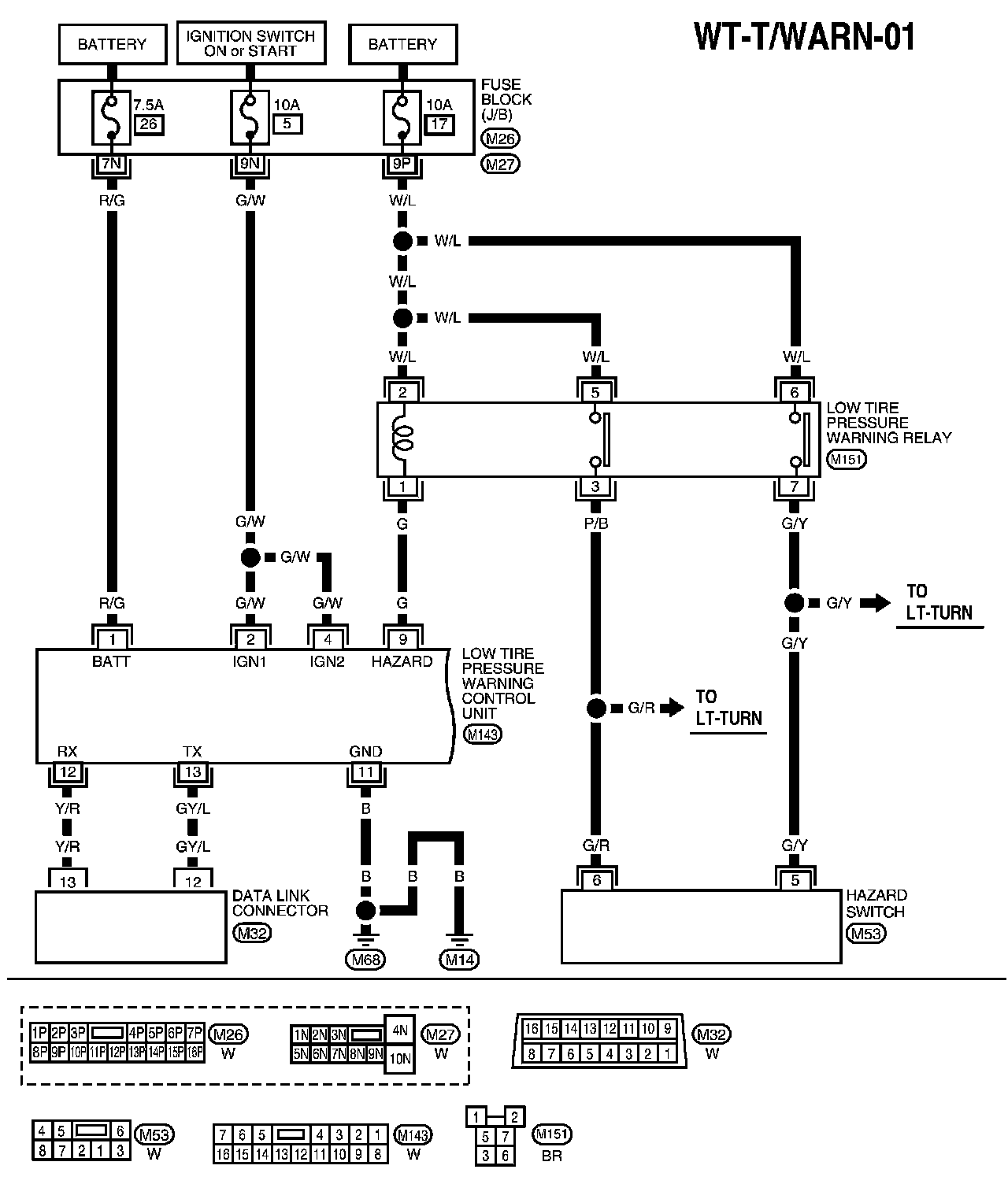

WT-T/WARN-01:

WT-T/WARN-02:

Wiring Diagrams-T/WARN

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
