DI-WARN

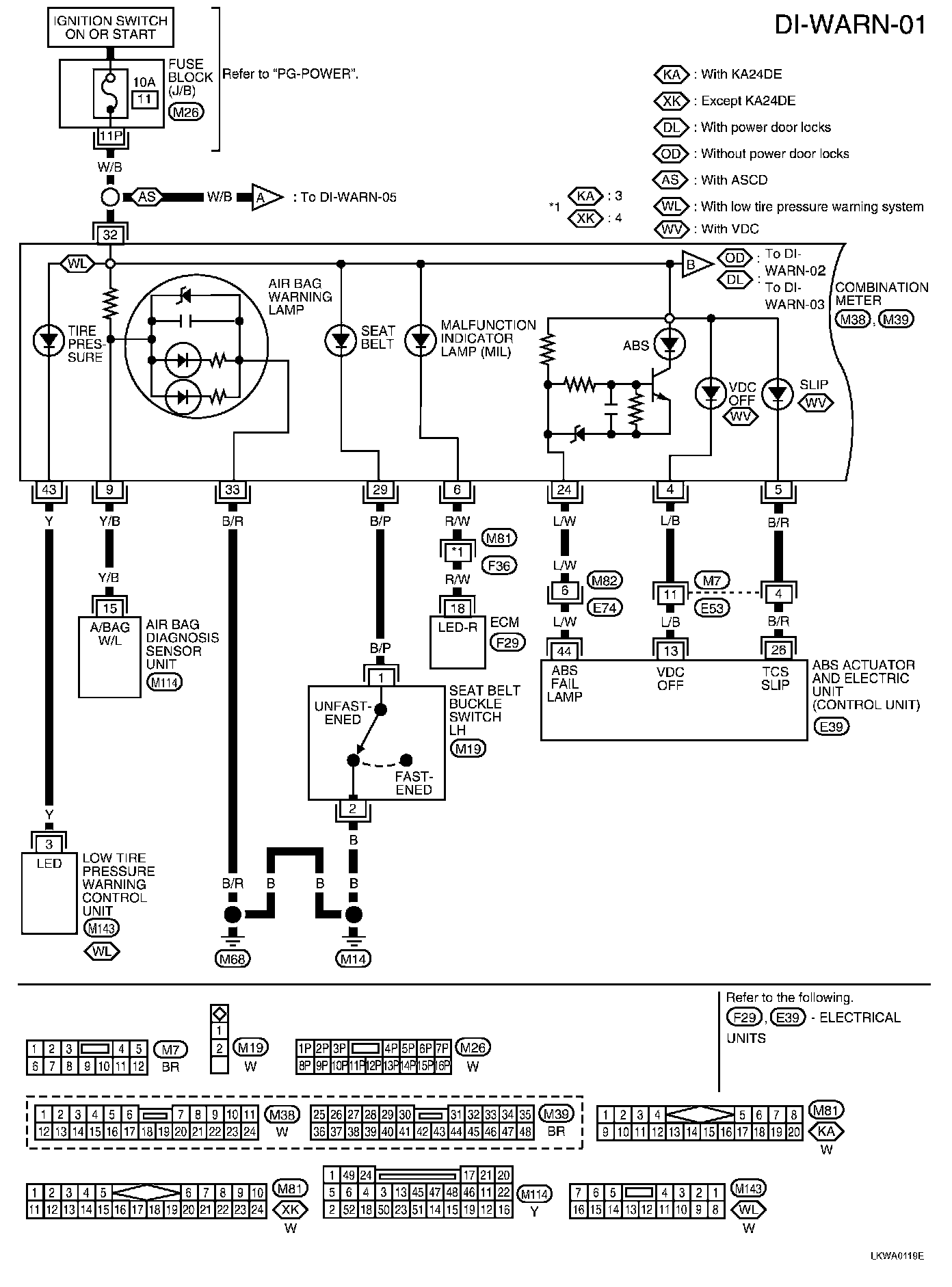

DI-WARN-01:

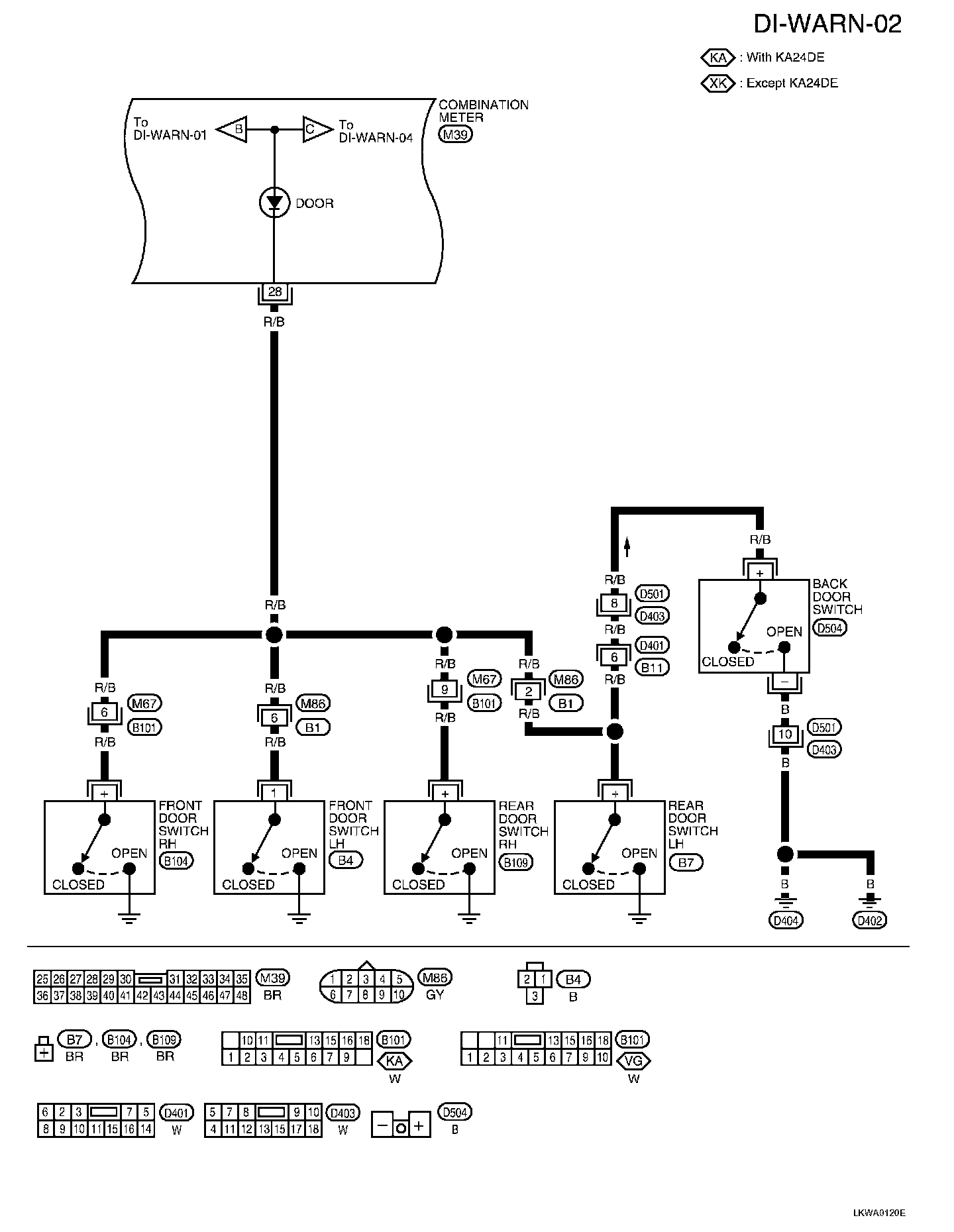

DI-WARN-02 (Models Without Power Door Locks):

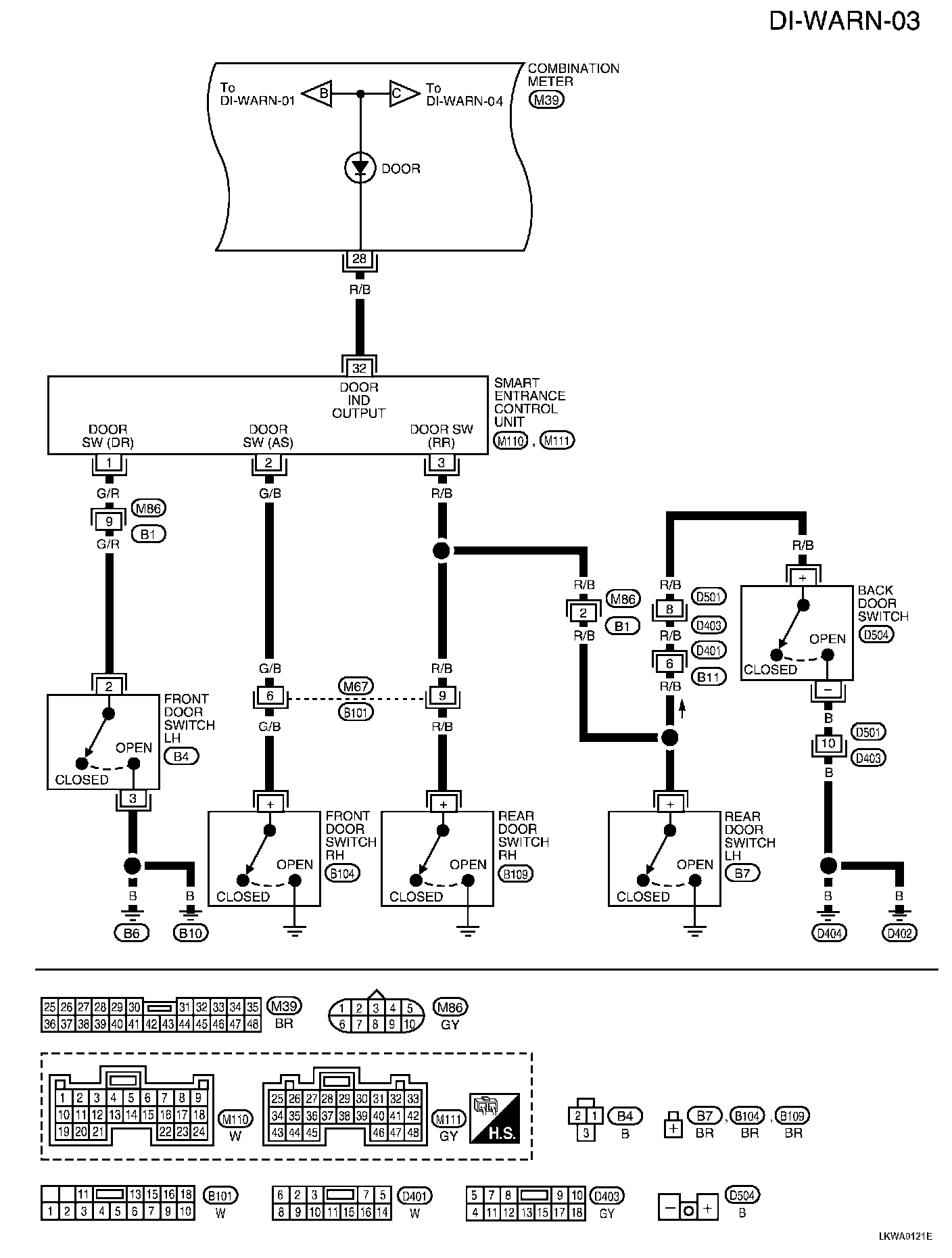

DI-WARN-03 (Models With Power Door Locks):

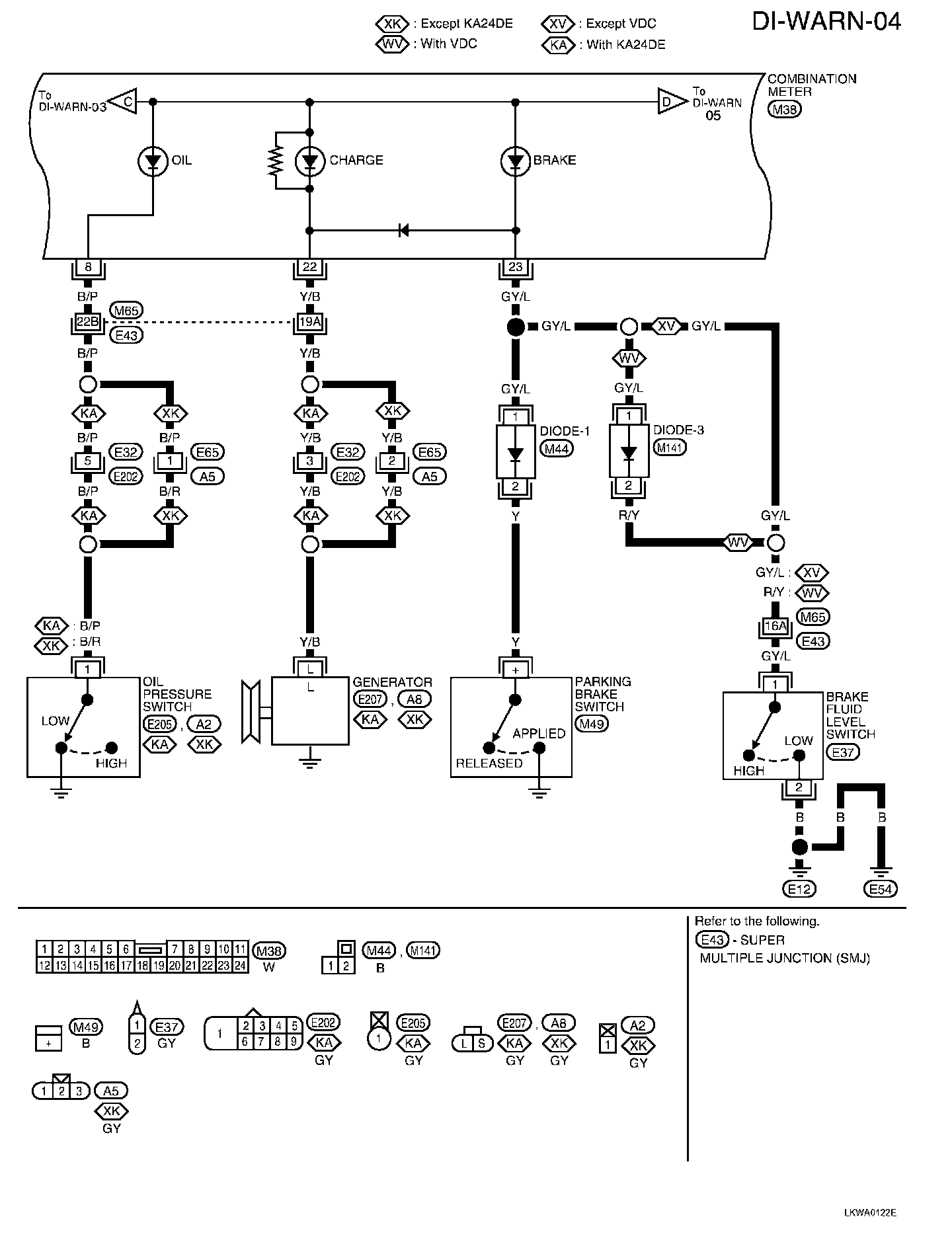

DI-WARN-04:

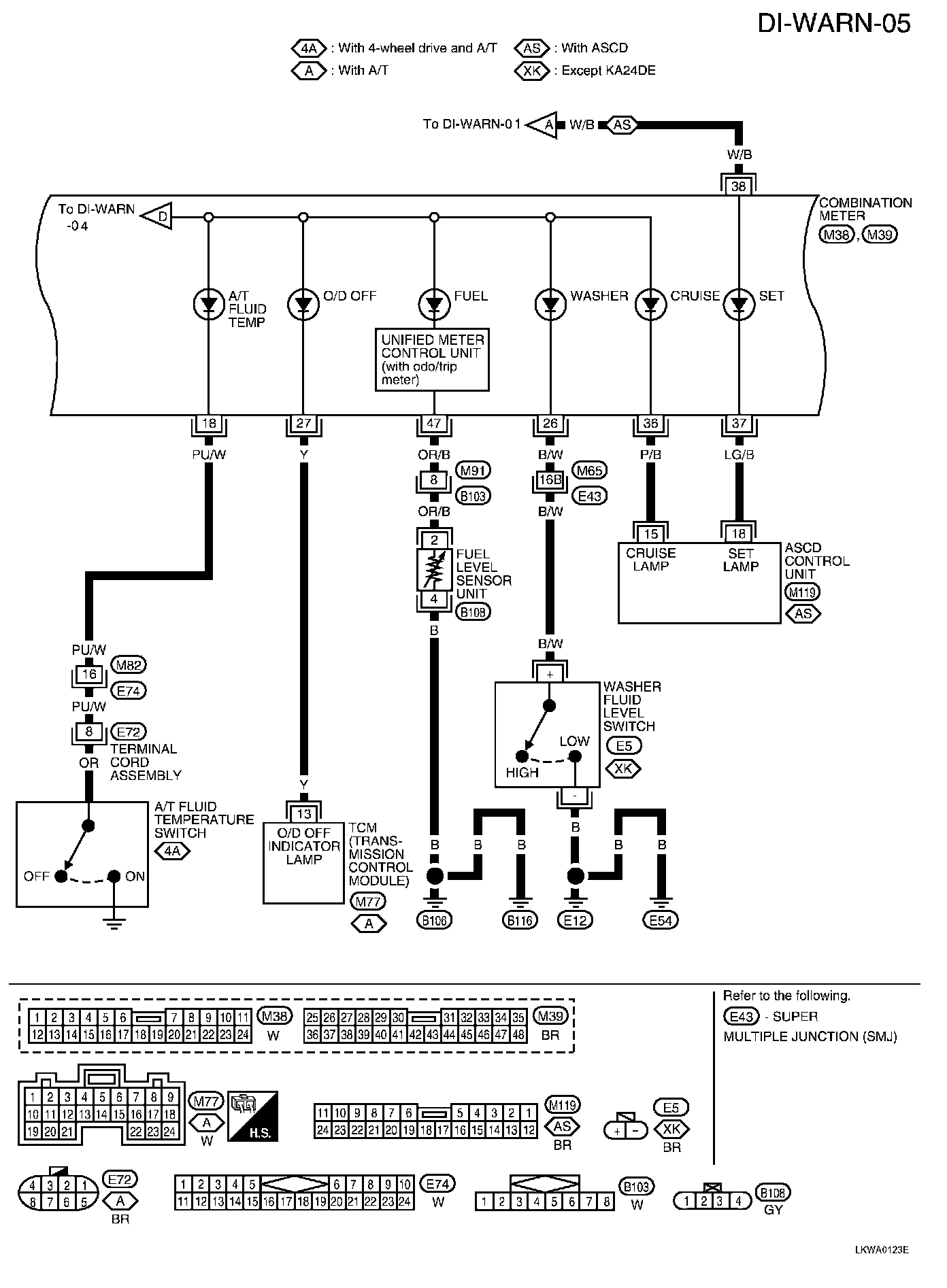

DI-WARN-05:

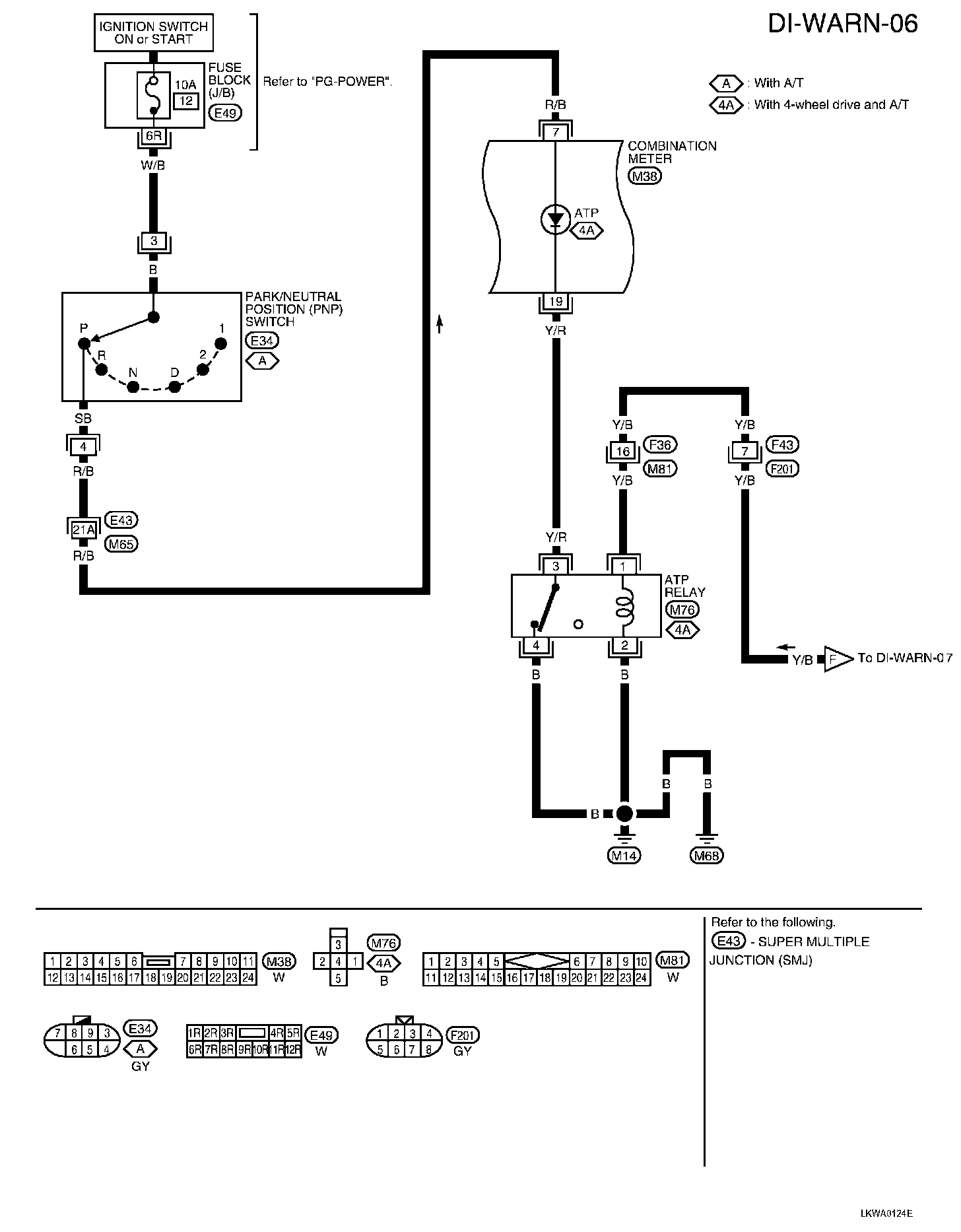

DI-WARN-06:

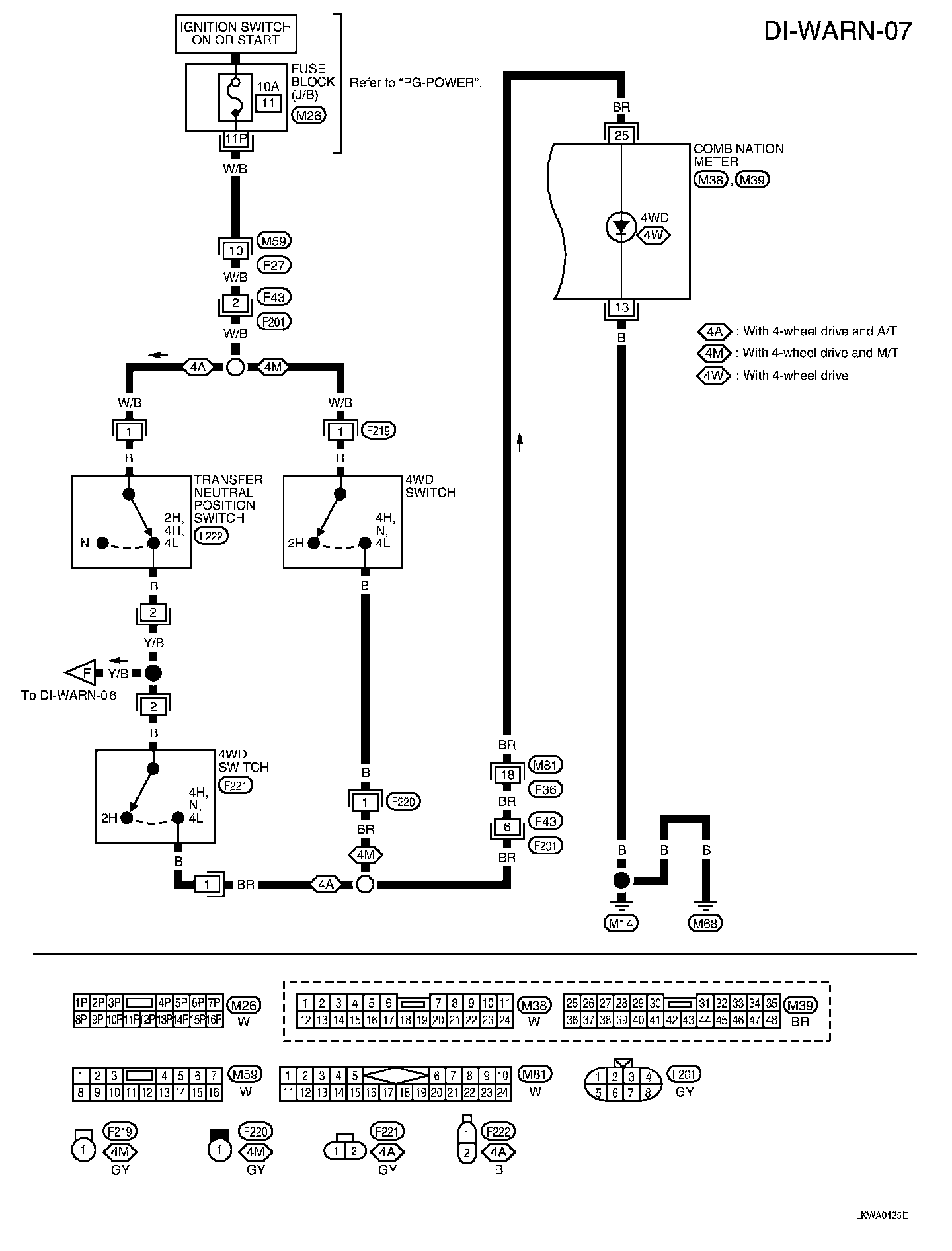

DI-WARN-07:
Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
