Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> WW Diagrams (Wiper, Washer & Horn) >> WW-CIGAR

WW-CIGAR

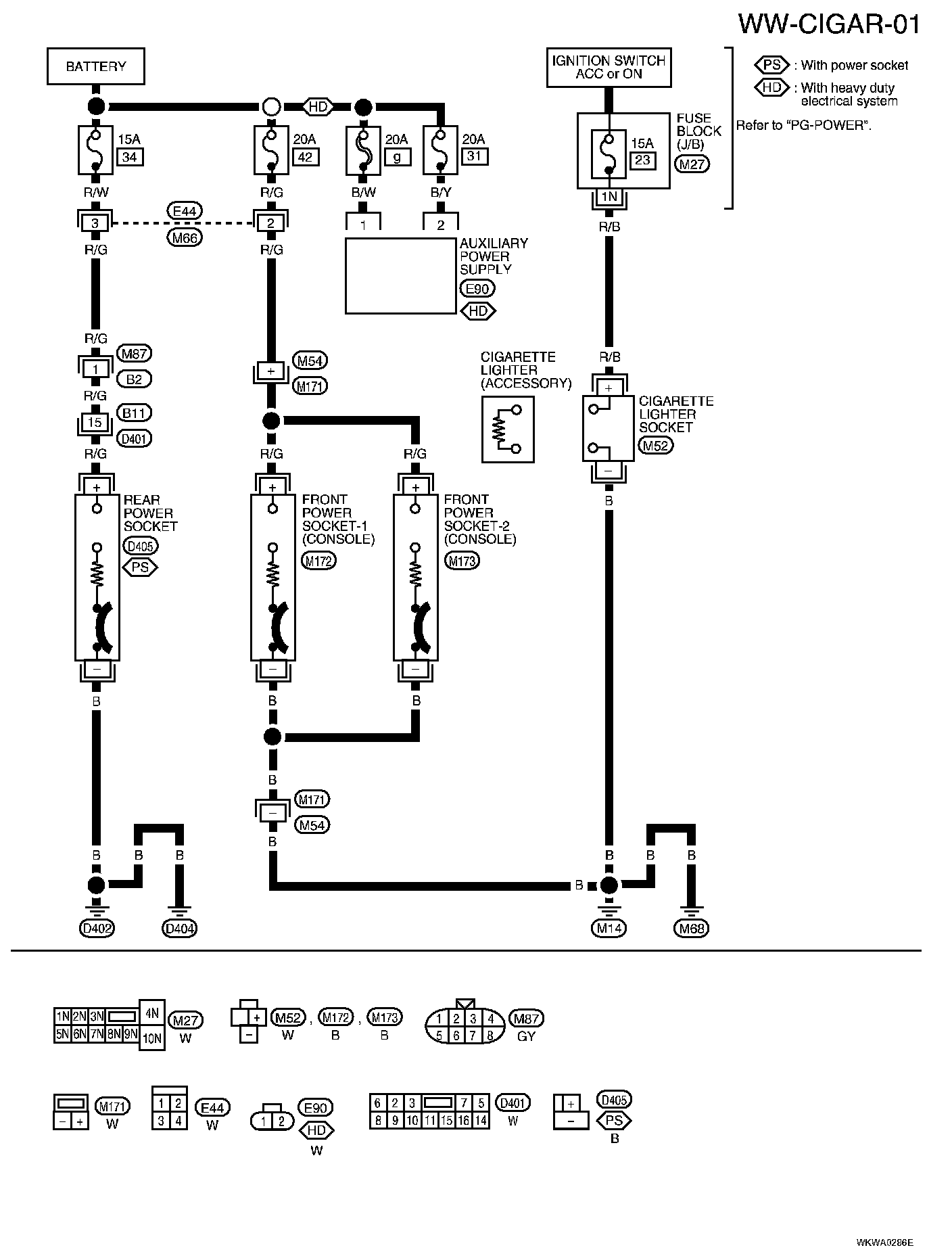

WW-CIGAR-01:
