Nissan-Datsun Truck
>>
2003
>>
Xterra 2WD V6-3.3L SC (VG33ER)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
LT Diagrams (Lighting System)
>>
LT-T/TOW
LT-T/TOW

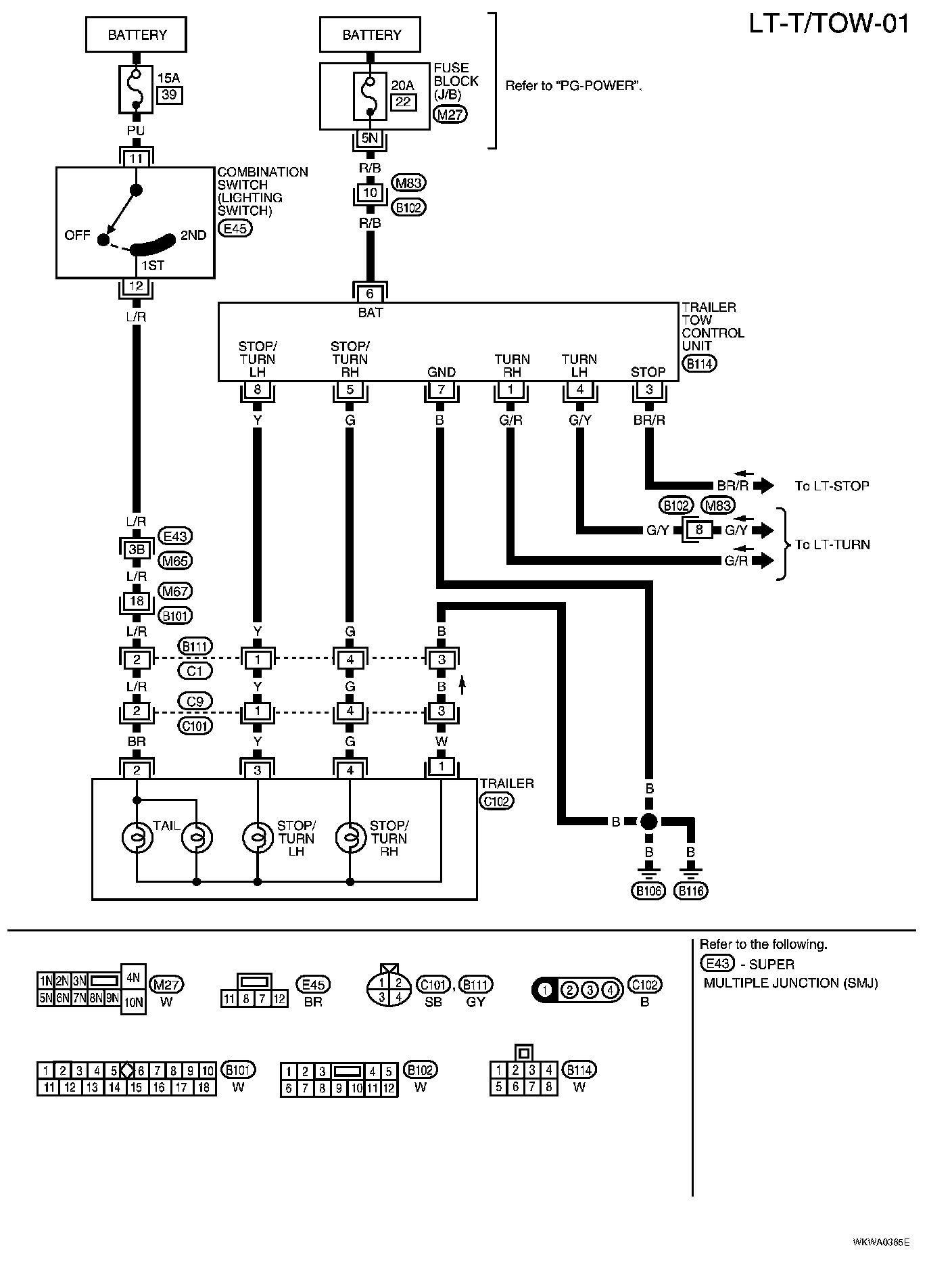

LT-T/TOW-01:
