Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> LT Diagrams (Lighting System) >> LT-BACK/L

LT-BACK/L

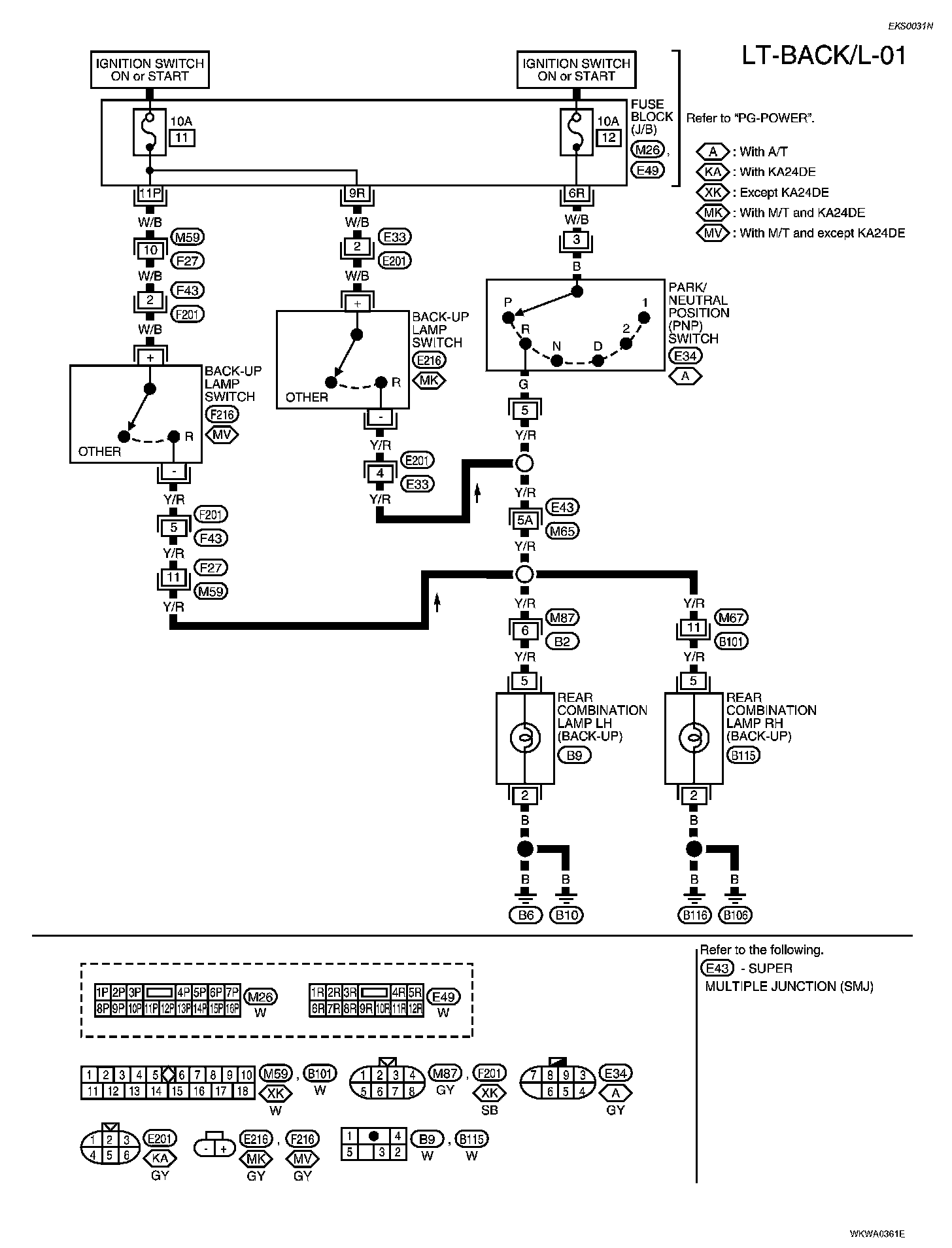

LT-BACK/L-01:
