Nissan-Datsun Truck
>>
2003
>>
Xterra 2WD V6-3.3L SC (VG33ER)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
DI Diagrams (Driver Information System)
>>
DI-CHIME
DI-CHIME
DI-CHIME-01:

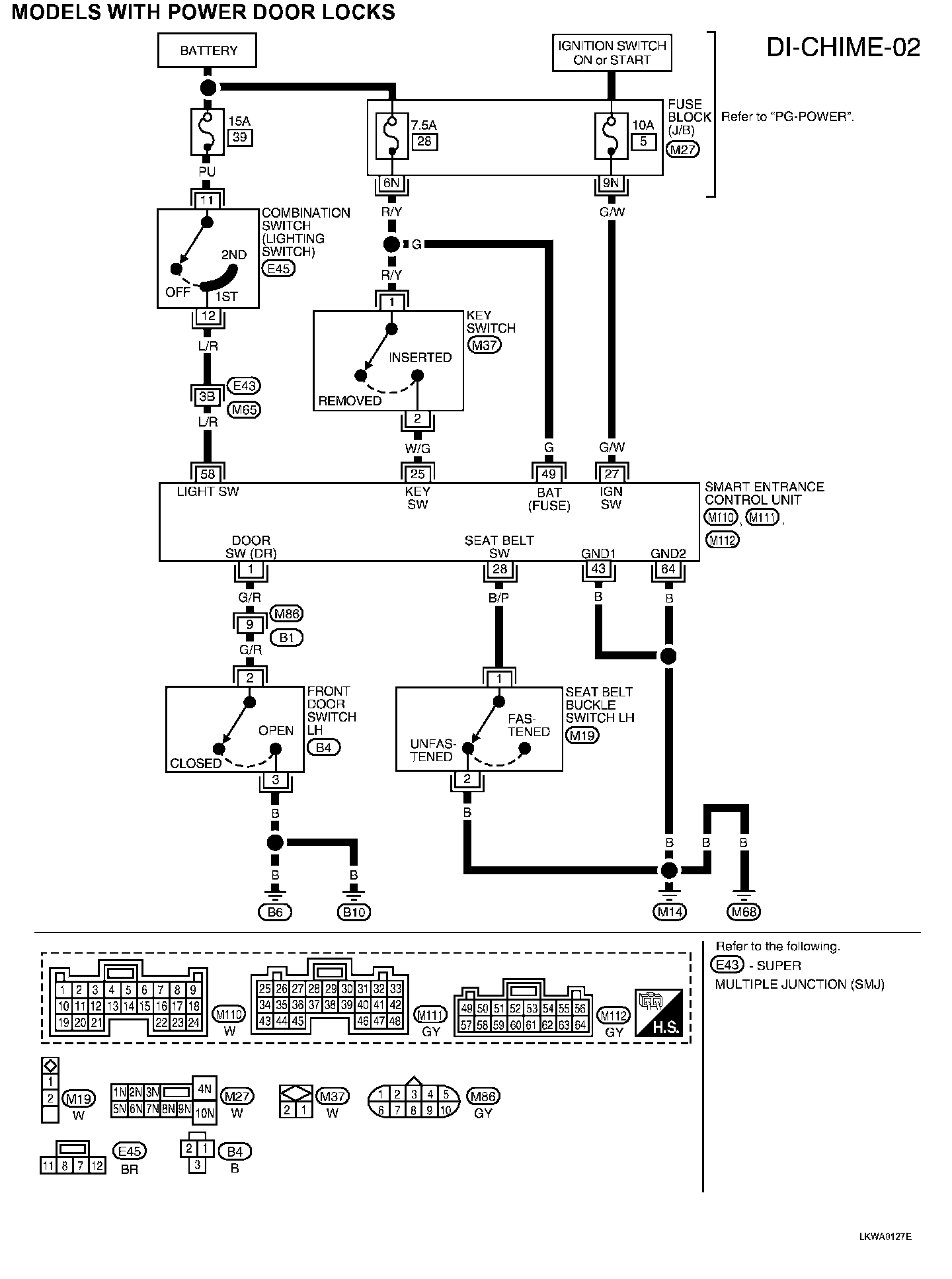

DI-CHIME-02:
