Transmission Position Sensor/Switch, A/T

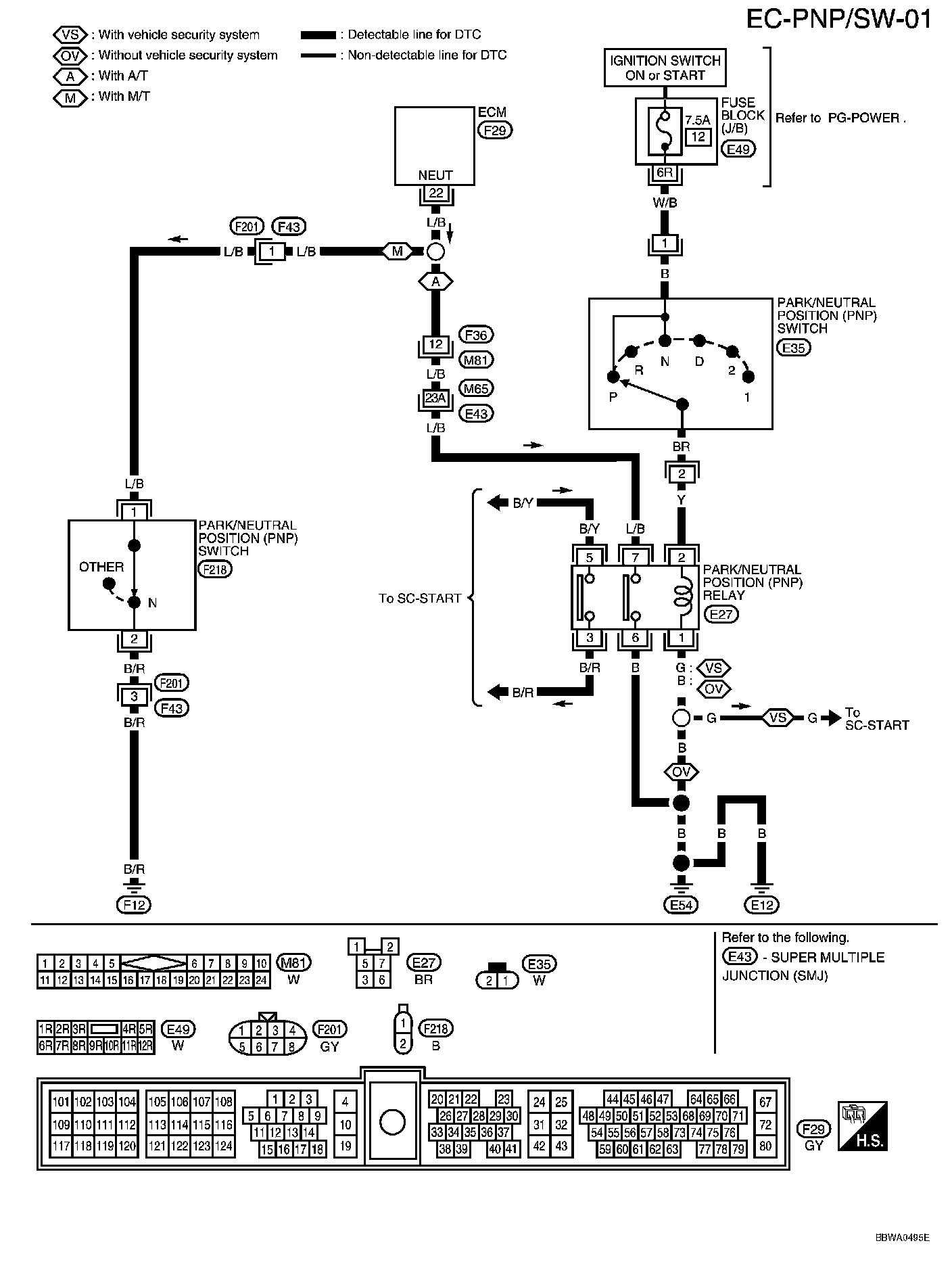

EC-PNP/SW-01:

Wiring Diagram


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
