BRC-VDC

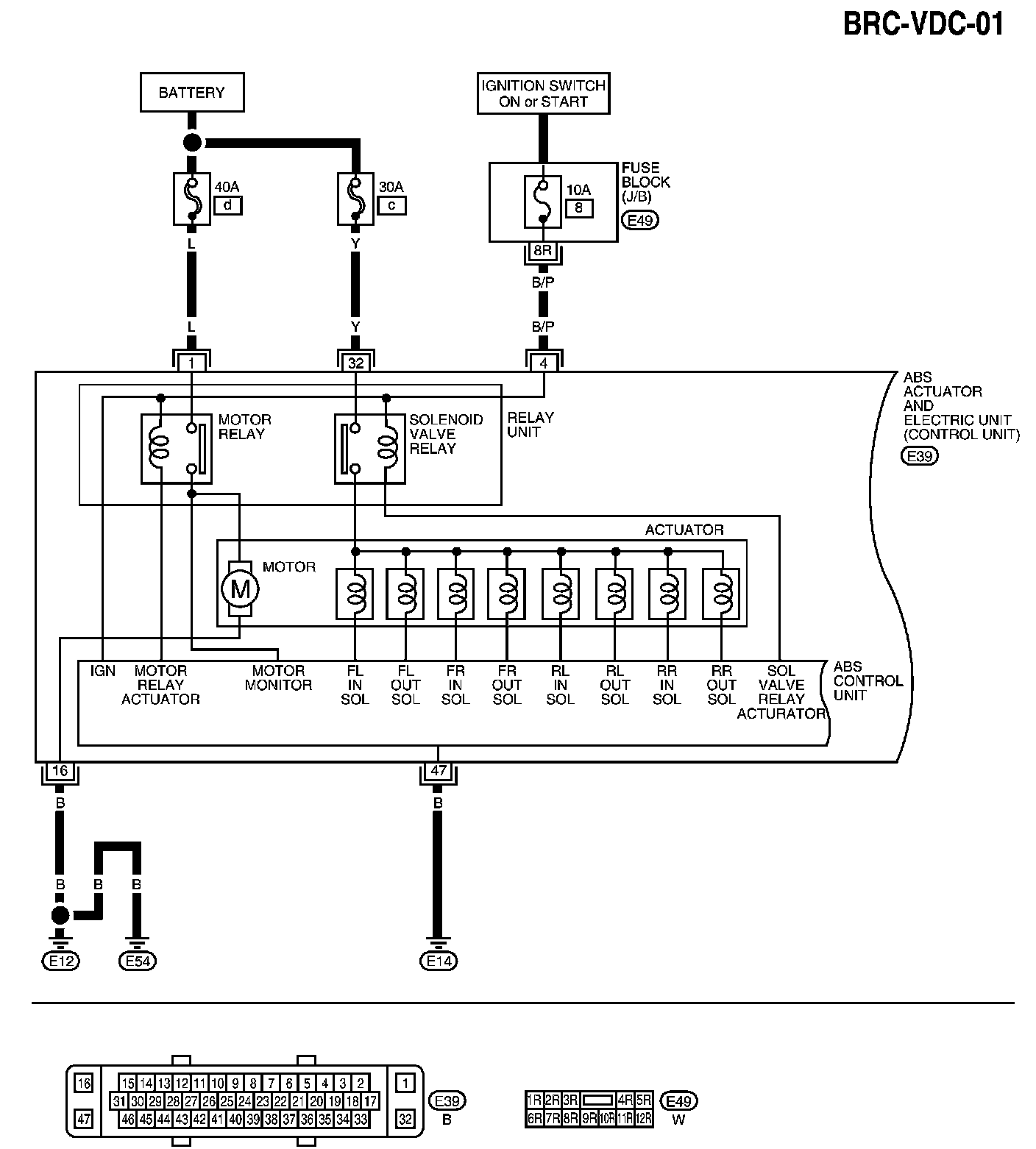

BRC-VDC-01:

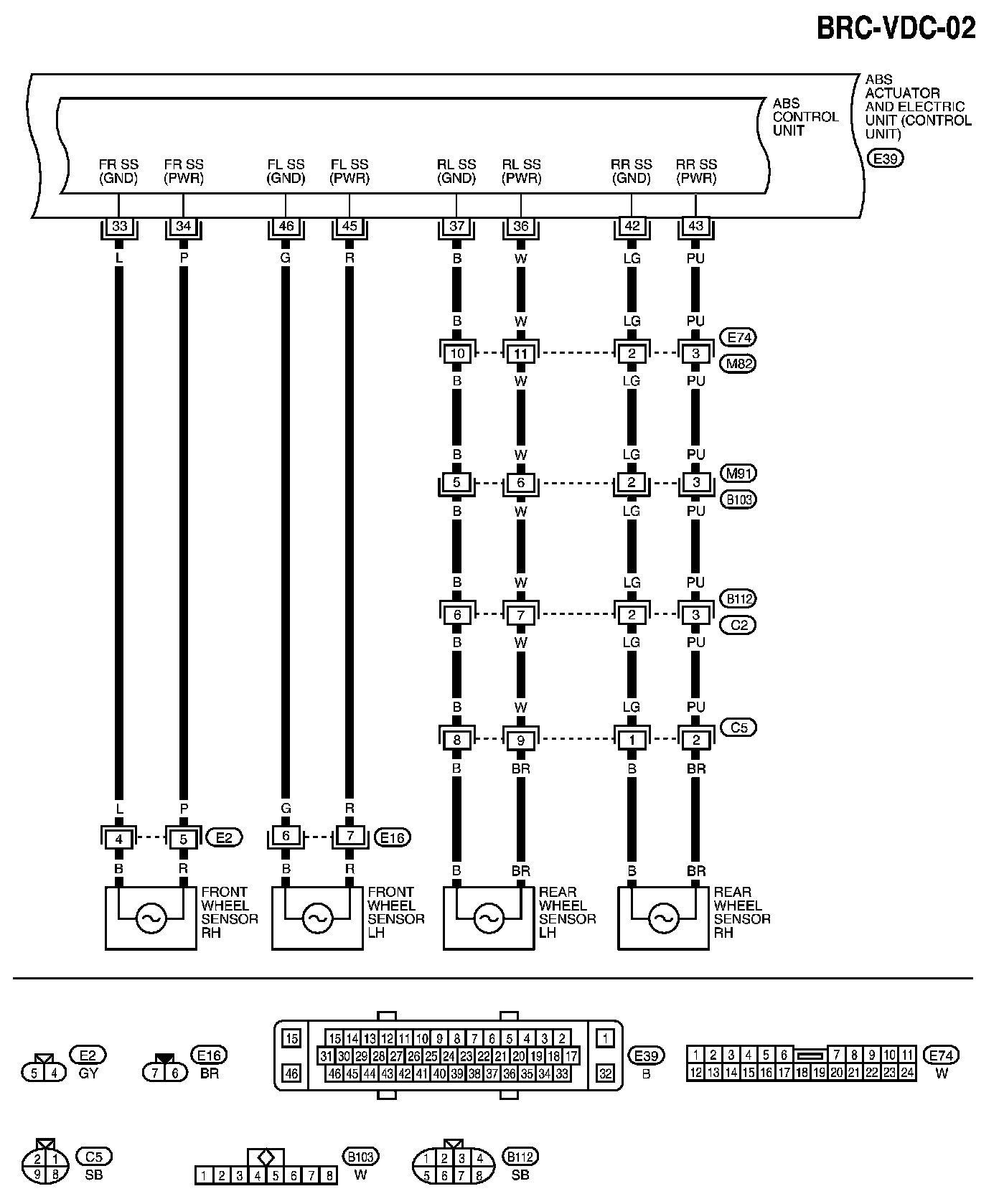

BRC-VDC-02:

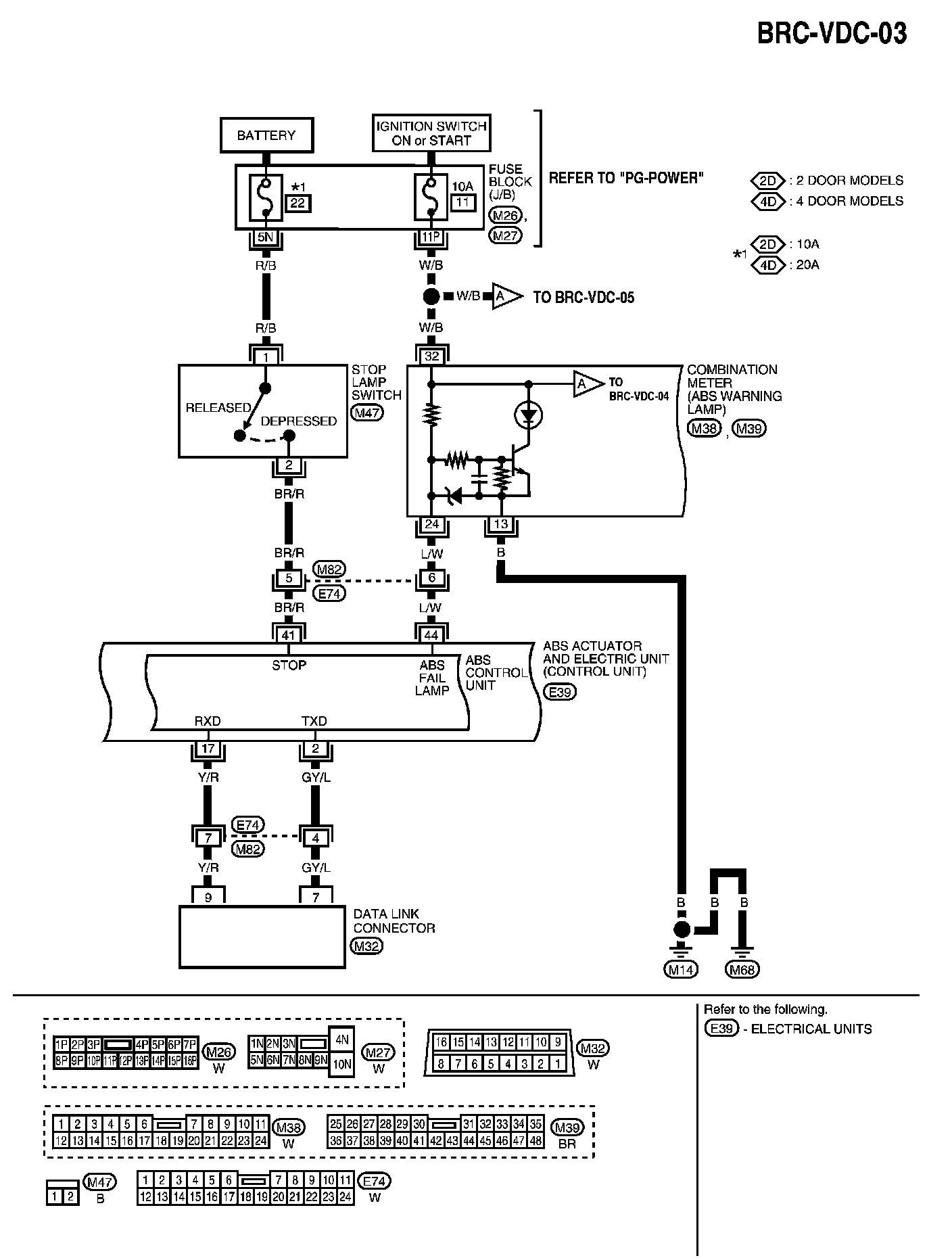

BRC-VDC-03:

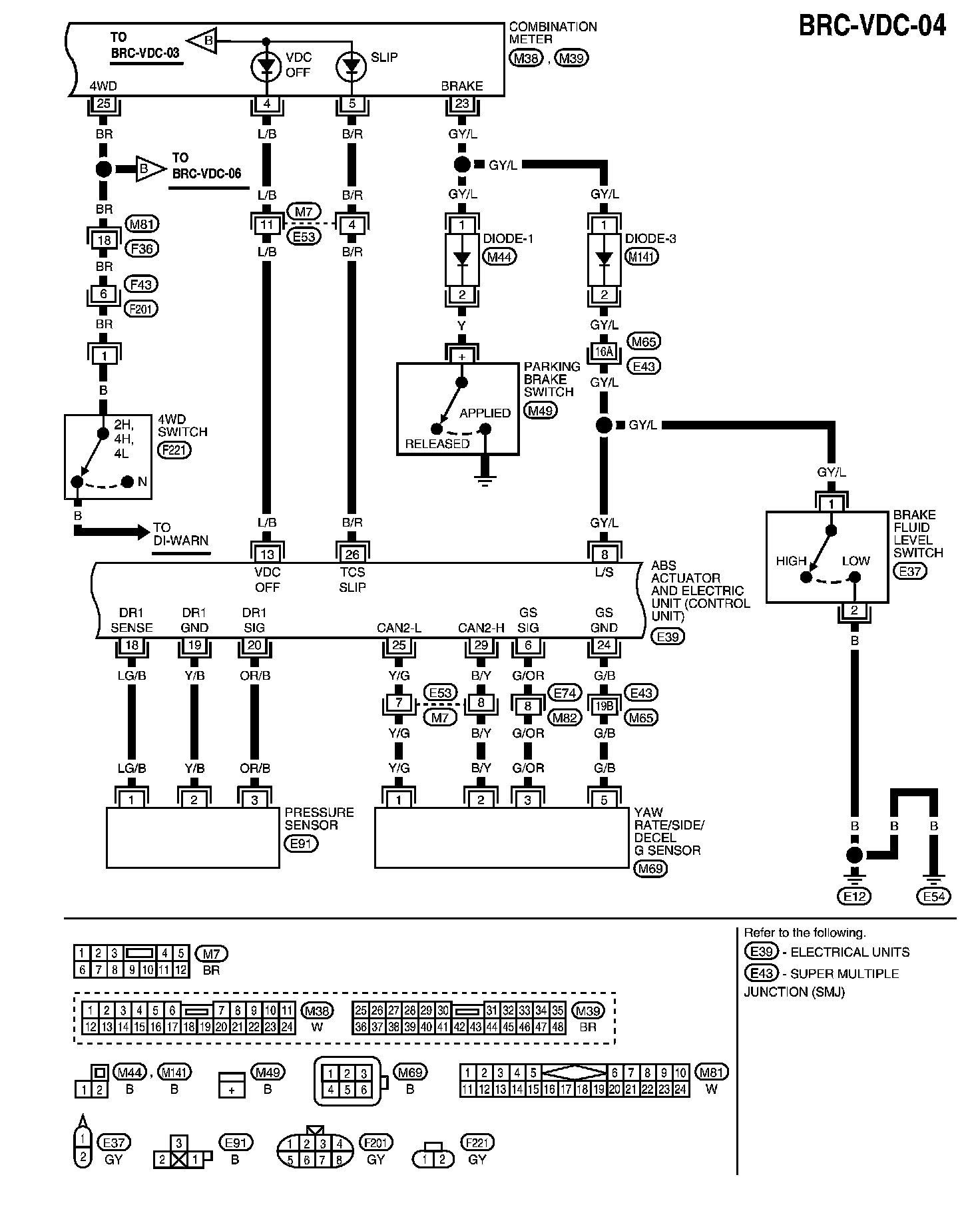

BRC-VDC-04:

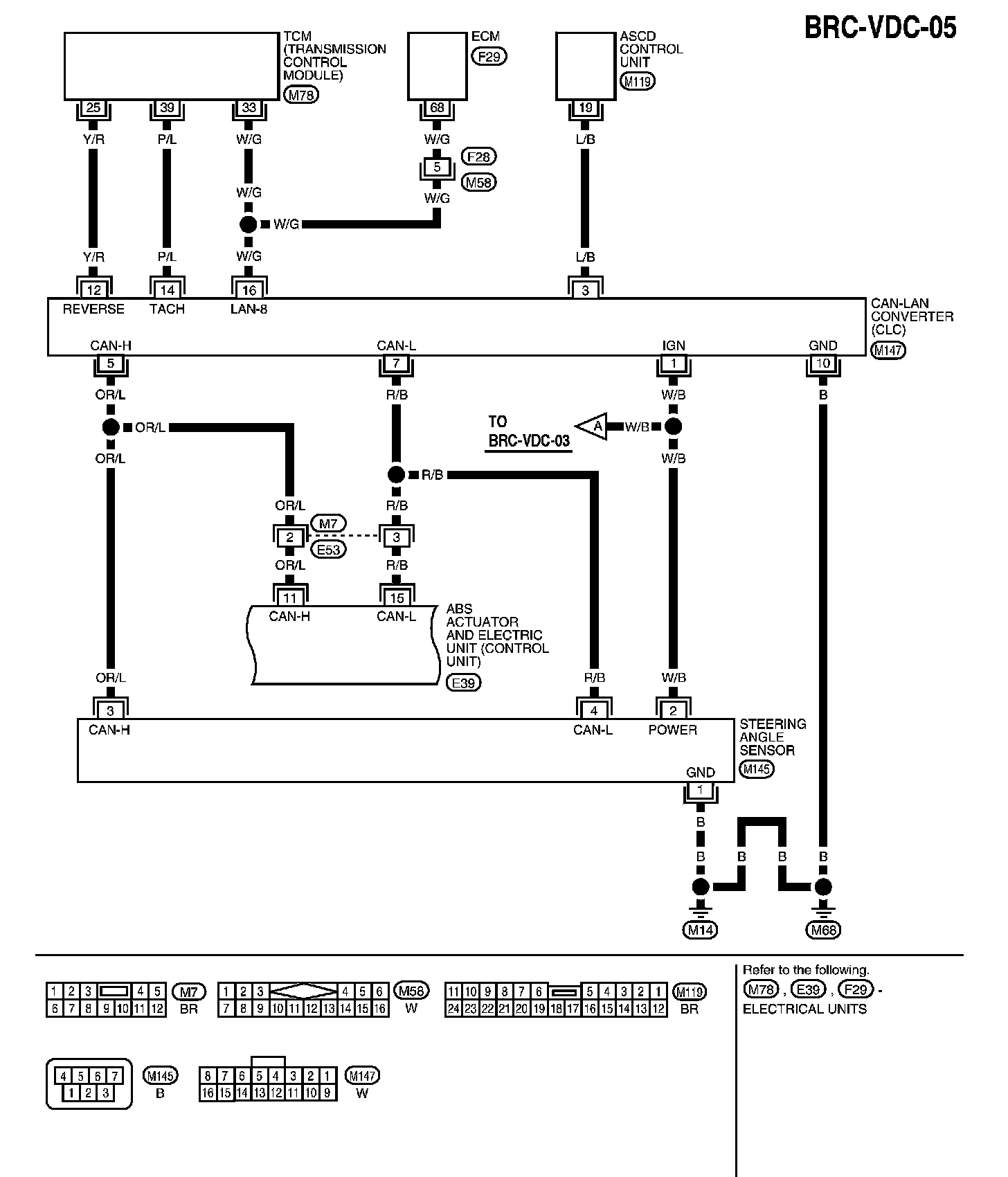

BRC-VDC-05:

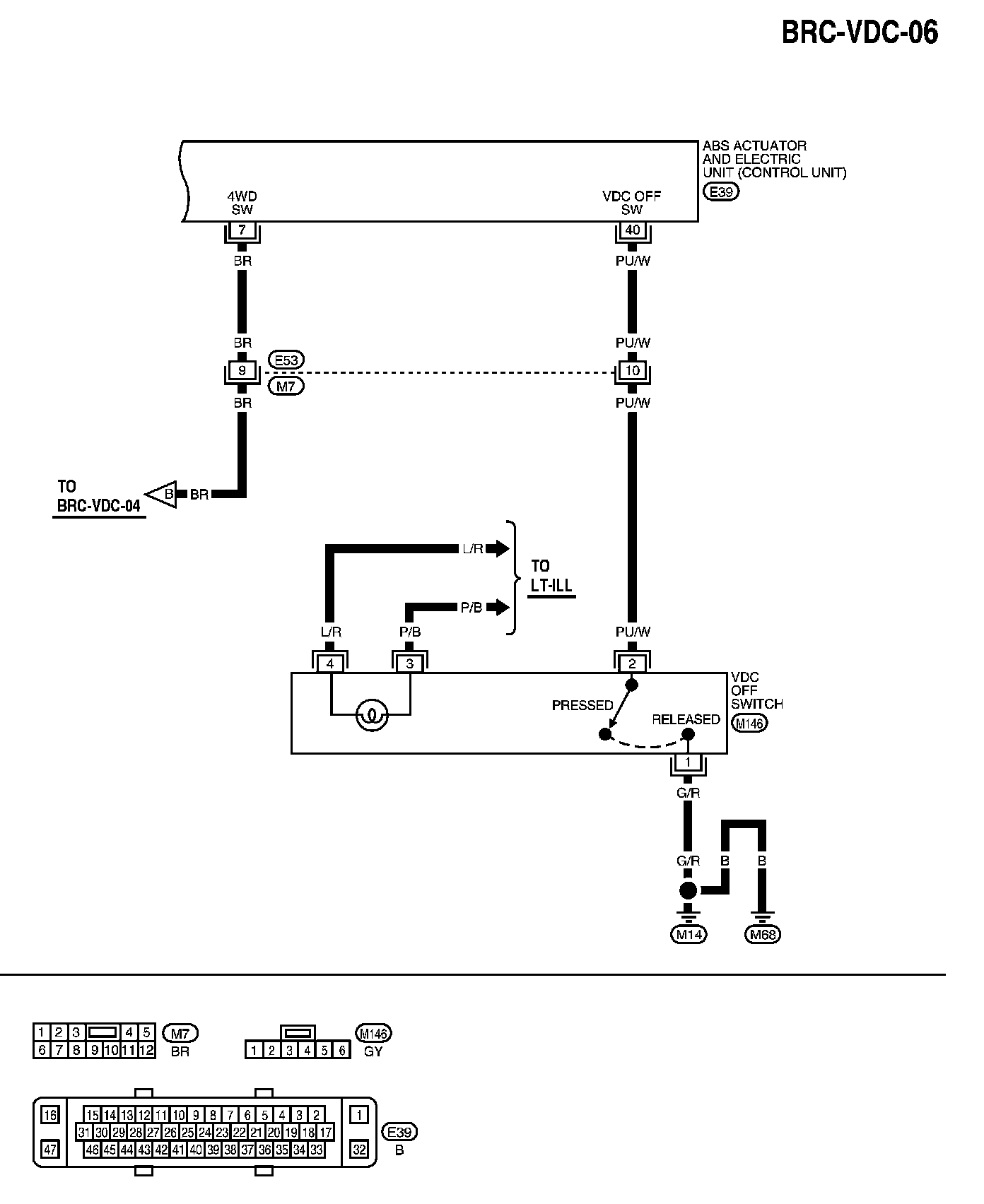

BRC-VDC-06:

BRC-VDC

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
