Initial Inspection and Diagnostic Overview

1. Turn ignition switch to ON position.

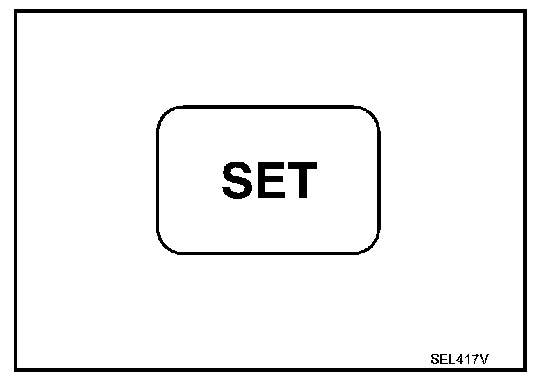

2. Turn ON-OFF switch to ON and check if the "SET" indicator blinks.

If the indicator lamp blinks, check the following.
- ASCD steering switch. Refer to "ASCD STEERING SWITCH CHECK".




3. Drive the vehicle at more than 40 km/h (25 MPH) and push COAST/SET switch.

If the indicator lamp blinks, check the following.
- Vehicle speed sensor. Refer to "VEHICLE SPEED SENSOR CHECK".
- ASCD motor actuator circuit. Refer to "ASCD MOTOR ACTUATOR CIRCUIT CHECK".
- Replace control unit.

4. Drive the vehicle at more than 20 km/h (12 MPH).

If the indicator lamp blinks, check the following.
- Replace ASCD motor actuator.

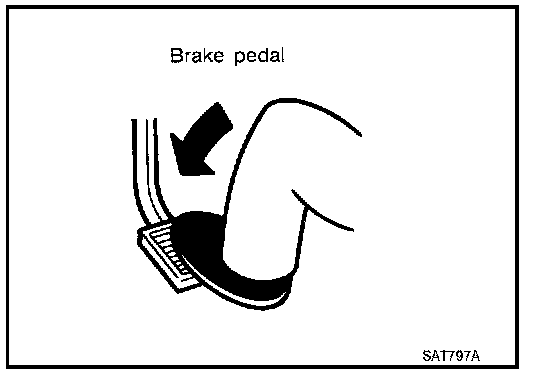

5. Depress brake pedal slowly (brake pedal should be depressed more than 5 seconds).

If the indicator lamp blinks, check the following.
- ASCD brake/stop lamp switch. Refer to "ASCD BRAKE/STOP LAMP SWITCH CHECK".

6. END. (System is OK.)
