ASCD Steering Switch Check

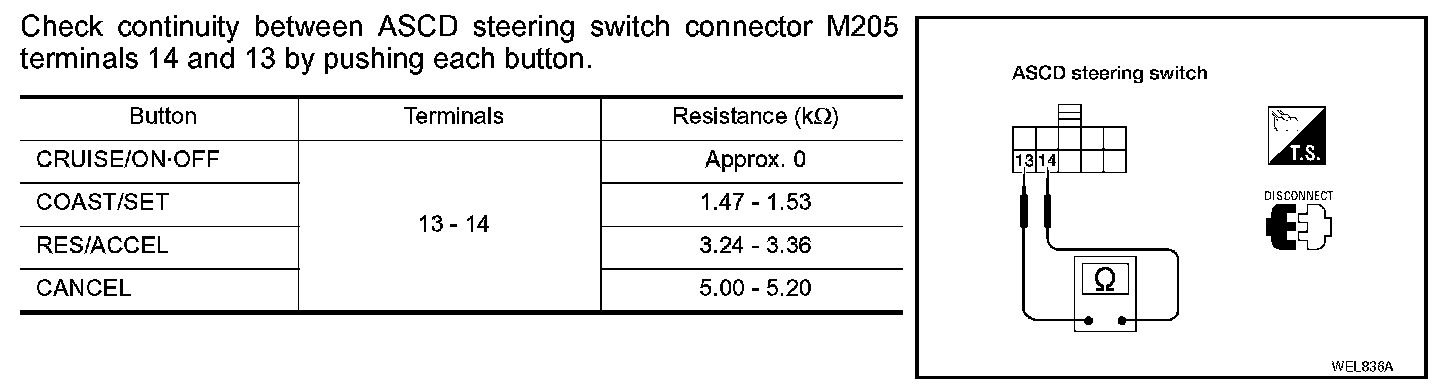

ASCD Steering Switch:

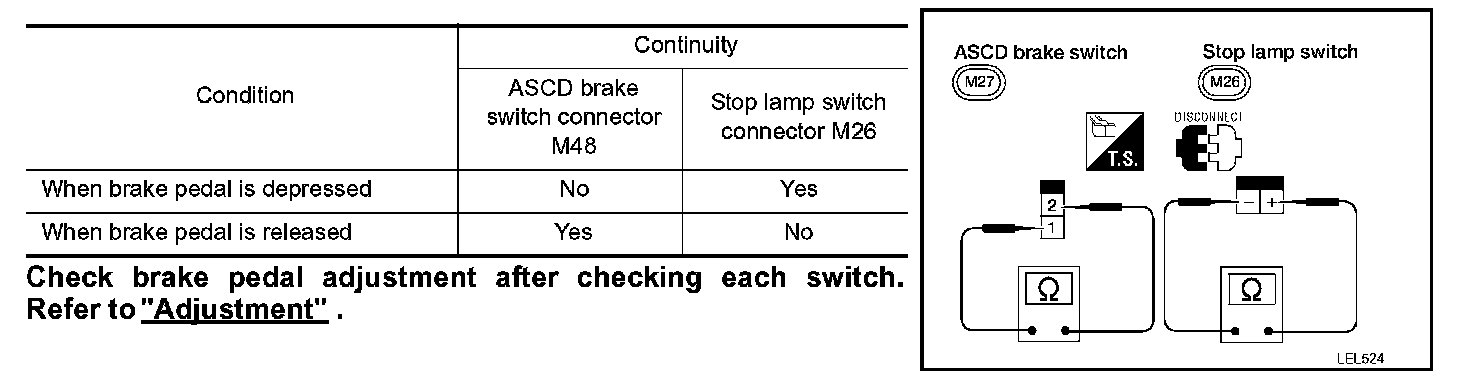

ASCD Brake Switch And Stop Lamp Switch:



ASCD Clutch Switch (M/T):

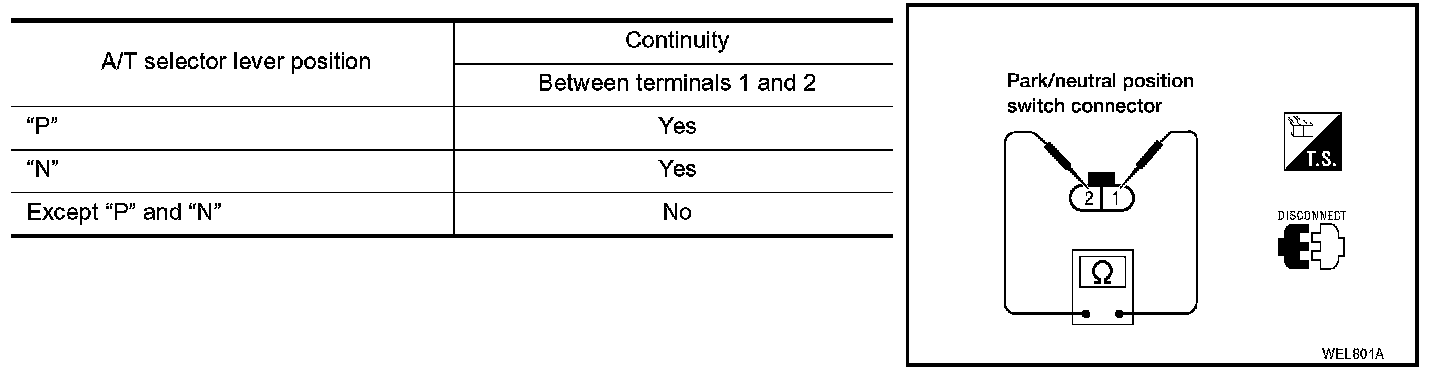

Park/Neutral Position Switch (A/T):

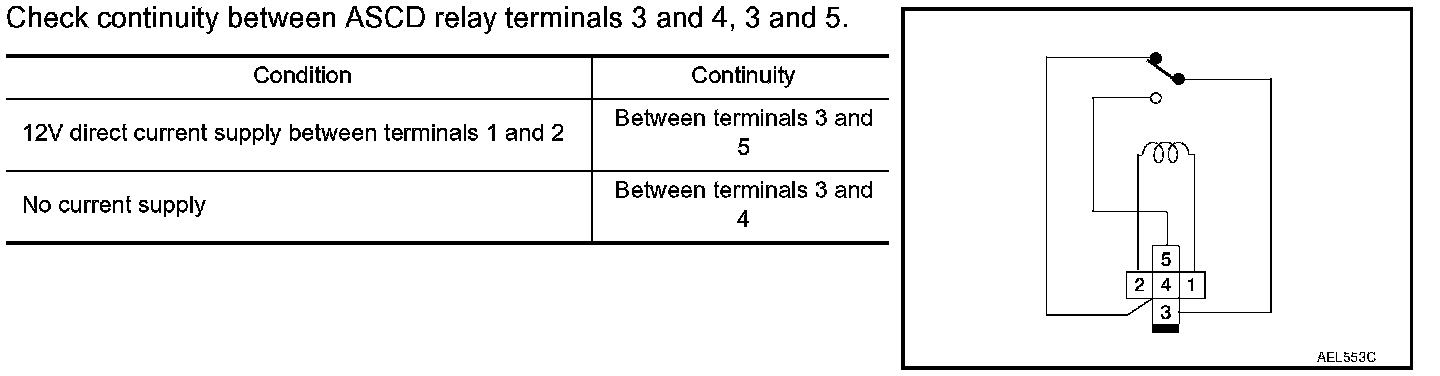

ASCD Relay (A/T Models):
