Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Component Tests and General Diagnostics >> ASCD Circuit Inspections >> Power Supply and Ground Circuit Check

Power Supply and Ground Circuit Check

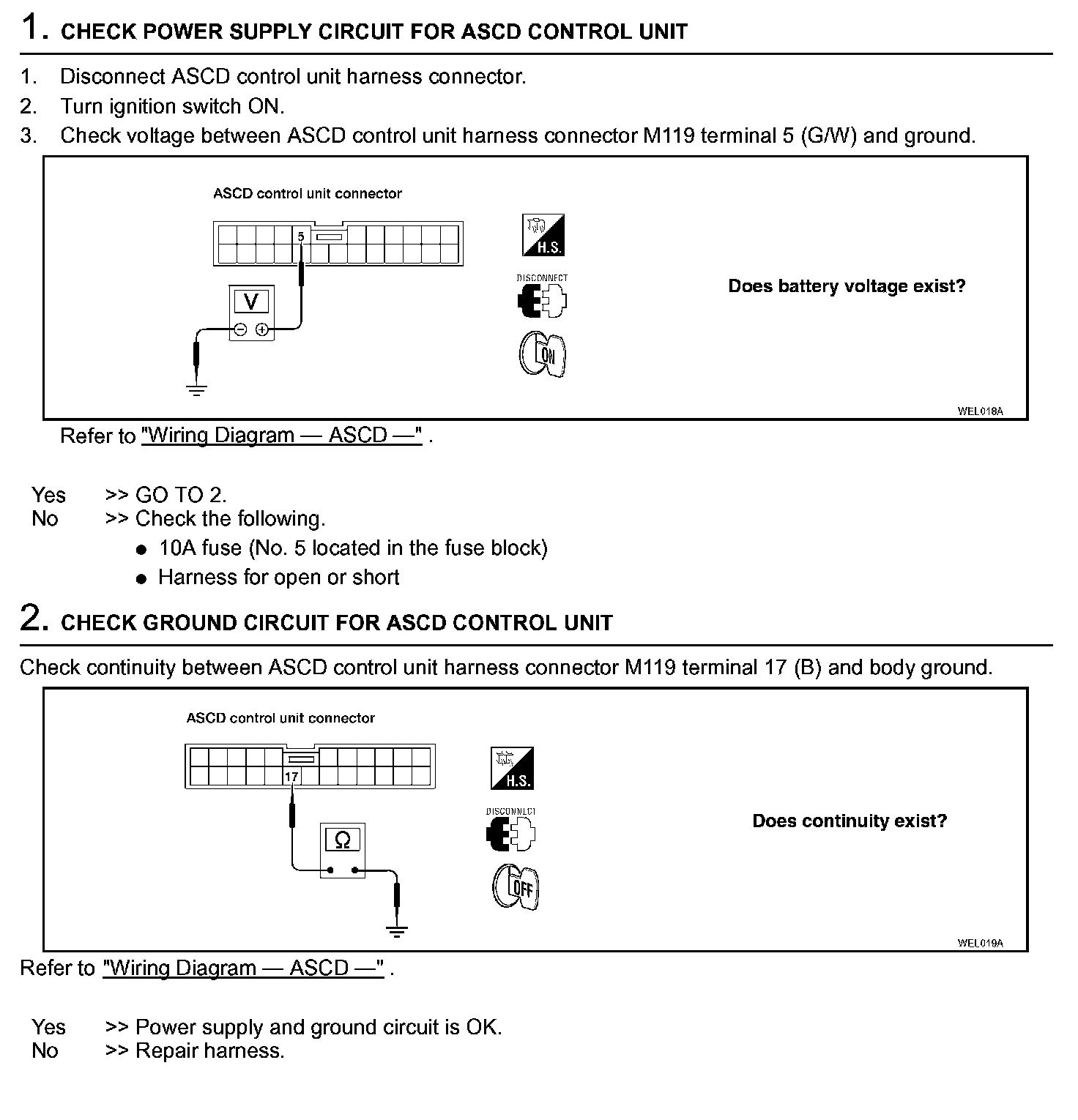

Power Supply And Ground Circuit Check (ACS-14):
