Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> Component Tests and General Diagnostics >> ASCD Circuit Inspections >> ASCD Motor Actuator Circuit Check

ASCD Motor Actuator Circuit Check

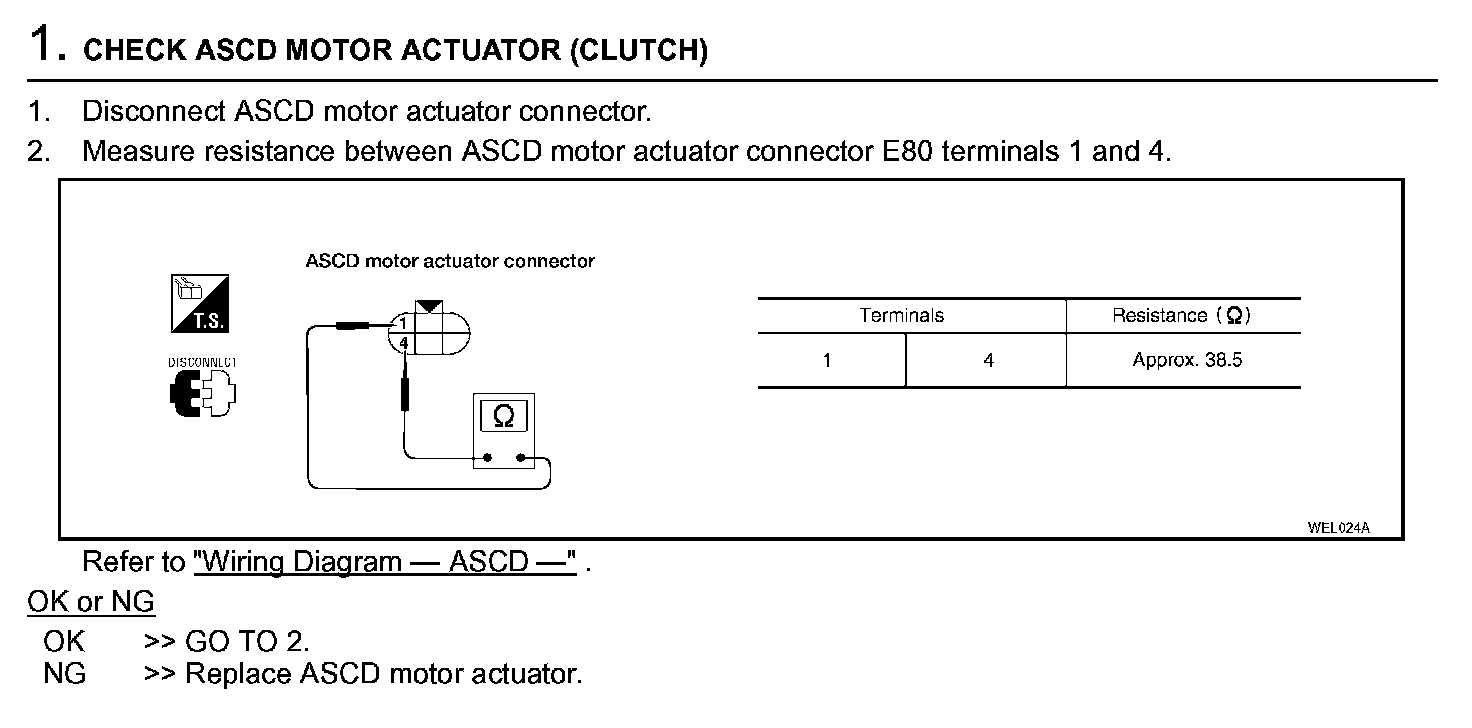

ASCD Motor Actuator Circuit Check (ACS-18):

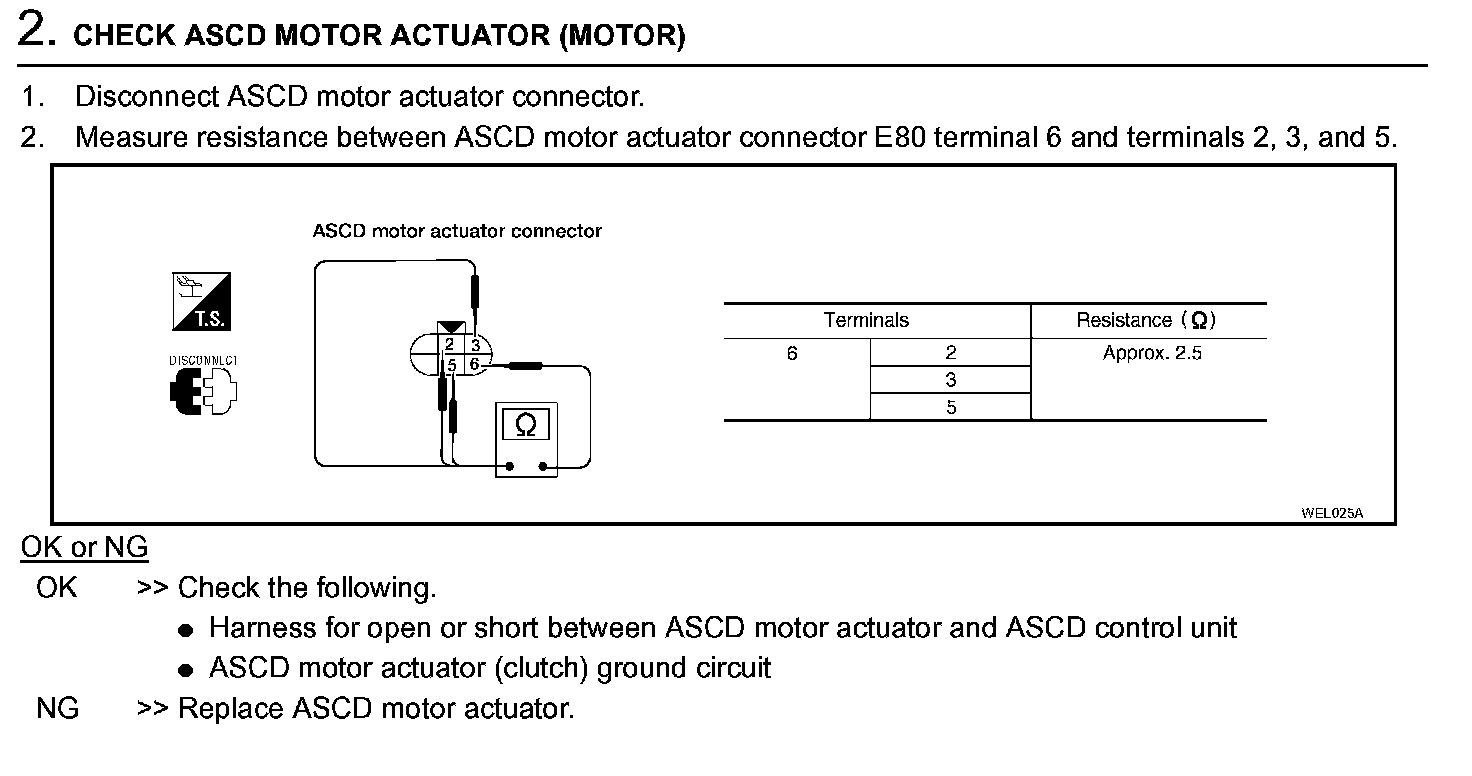

ASCD Motor Actuator Circuit Check (ACS-19):
