ASCD Brake/Stop Lamp Switch Circuit Check

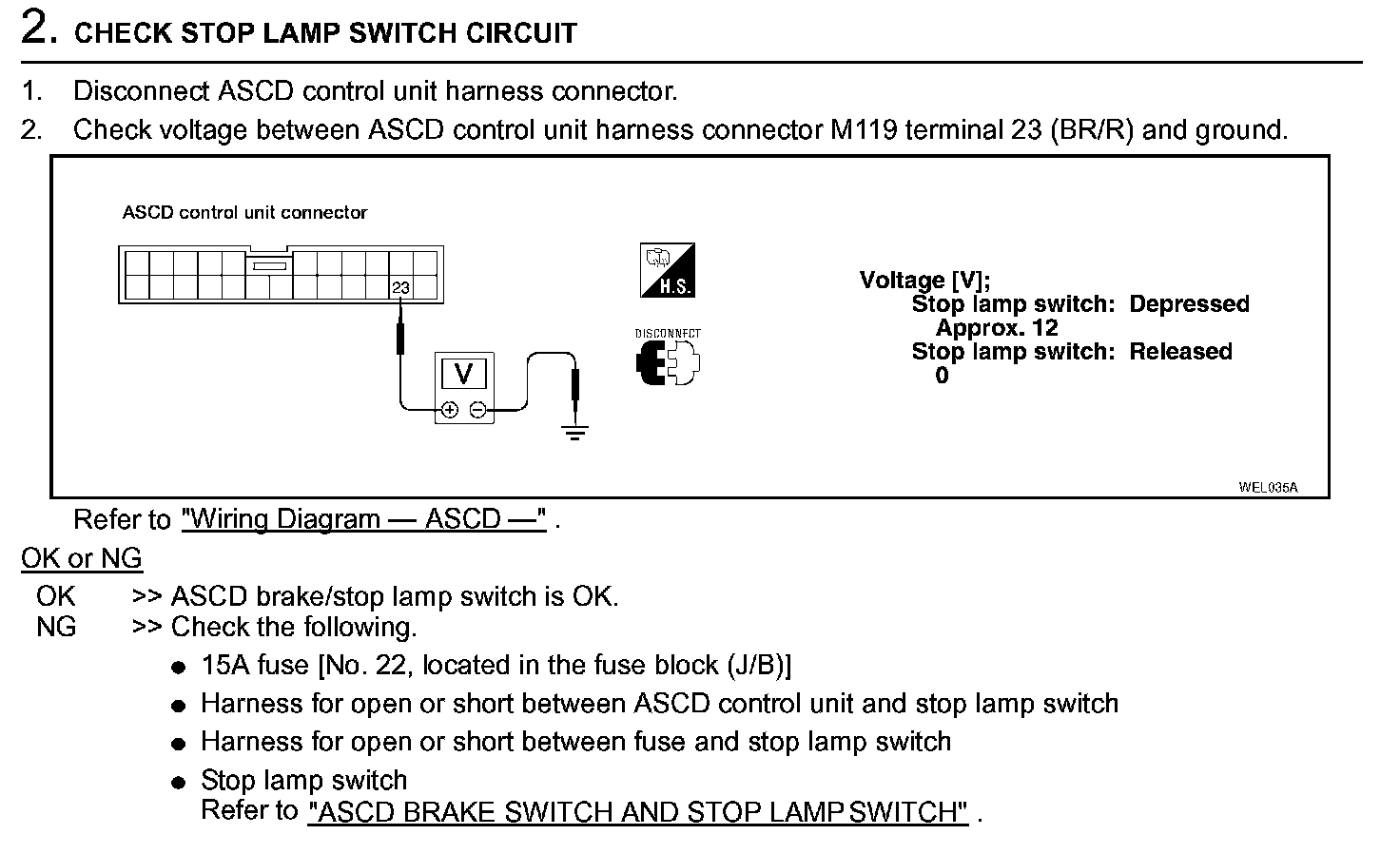

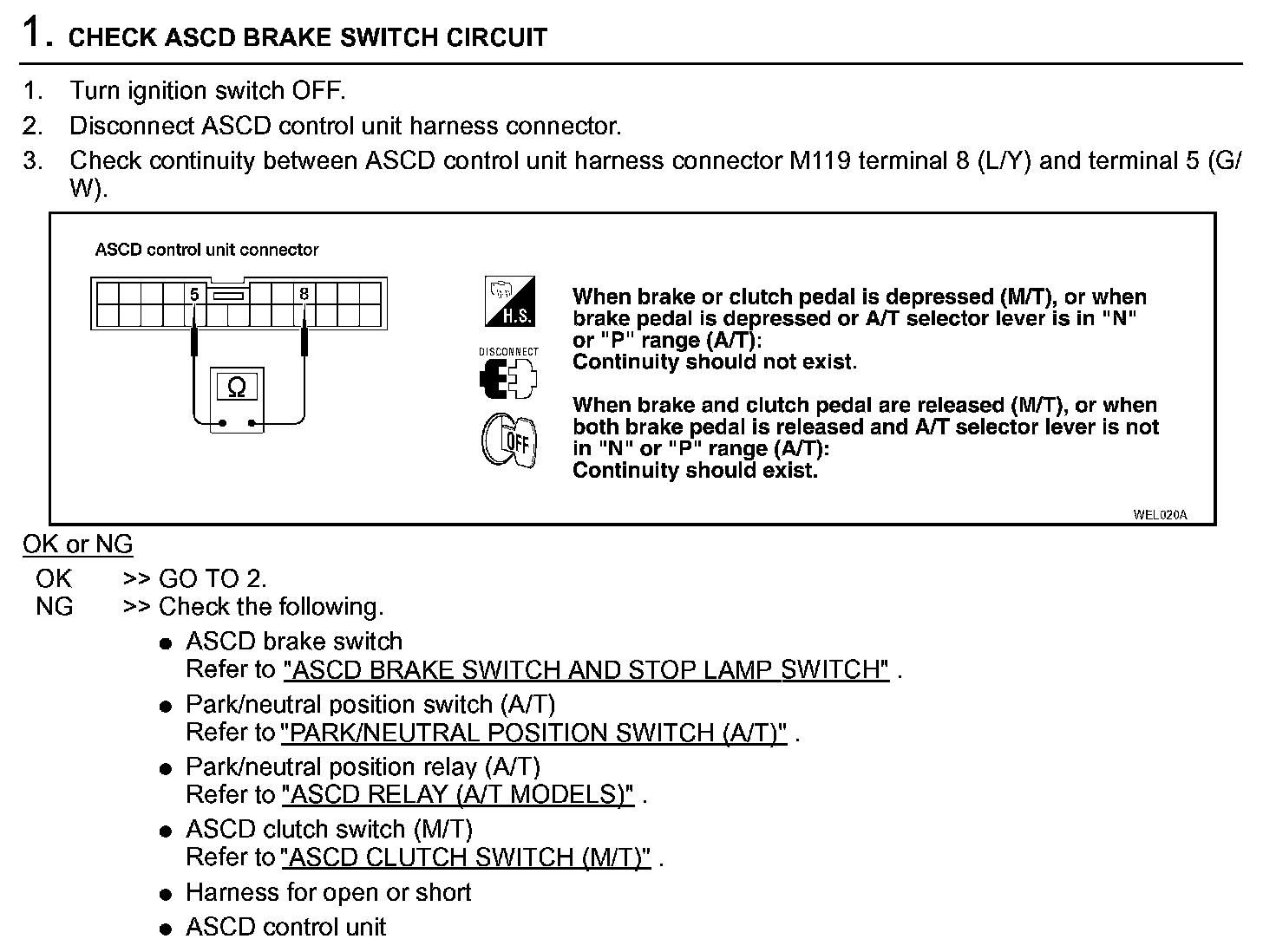

ASCD Brake/Stop Lamp Switch Circuit Check (ACS-15):



ASCD Brake/Stop Lamp Switch Check (ACS-16):
