Front Sensor Rotor

Front Sensor Rotor
REMOVAL

CAUTION: Be careful not to damage sensor edge and sensor rotor teeth. When removing the front or rear wheel hub assembly, disconnect the ABS wheel sensor from the assembly and move it away.

1. Remove the front wheel hub.

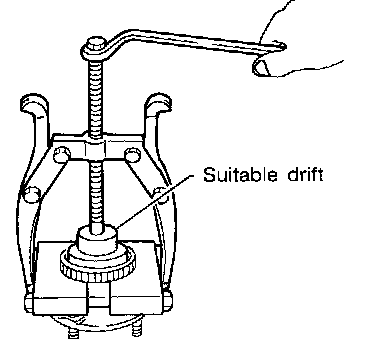

2. Remove the sensor rotor using suitable puller, drift and bearing replacer.

INSTALLATION

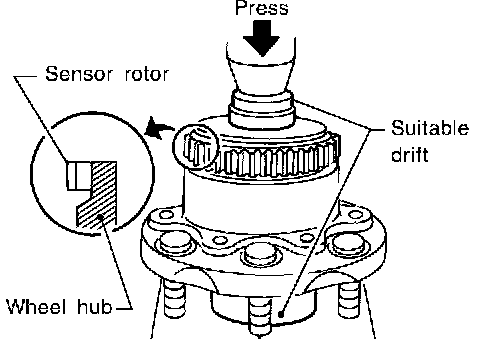

Install the sensor rotor using suitable drift and press.

Always replace sensor rotor with new one.

Pay attention to the direction of front sensor rotor as shown in figure.
