23. CAN Circuit 1 - CAN Communication System Failure

Inspection 23 - CAN CIRCUIT 1 - CAN Communication System Failure
DTC C1174

1. INSPECTION START






Check self-diagnosis results.

Self-diagnosis results
CONSULT-II display items
CAN CIRCUIT 1

Do self-diagnosis results indicate anything other than the above?

YES >> Perform repair or replacement for the item indicated.

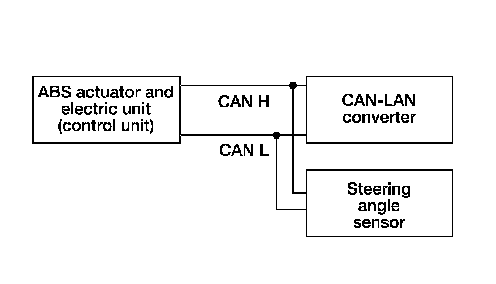

NO >> Refer to "Inspection 12 CAN Communications Lines, ABS Actuator and Electric Unit (Control Unit), Steering angle Sensor System and CAN-LAN Converter ECU (CLC)".
12. CAN Communication System
