22. CAN-LAN Converter Power Supply Circuit
Inspection 22 - CAN-LAN Converter Power Supply CircuitDTC C1177
1. SELF-DIAGNOSIS RESULT CHECK 1
Check self-diagnosis results.
Self-diagnosis results
CONSULT-II display items
CLC BATTERY VOLTAGE [ABNORMAL]
Do self-diagnosis results indicate anything other than the above?
YES >> Perform repair or replacement for the item indicated.
NO >> GO TO 2.
2. SELF-DIAGNOSIS RESULT CHECK 2
1. Disconnect the CAN-LAN converter (CLC) connector. Securely connect it again.
2. Perform self-diagnosis.
Does "CLC BATTERY VOLTAGE [ABNORMAL]" appear on display?
YES >> GO TO 3.
NO >> Repair or replace the connector.

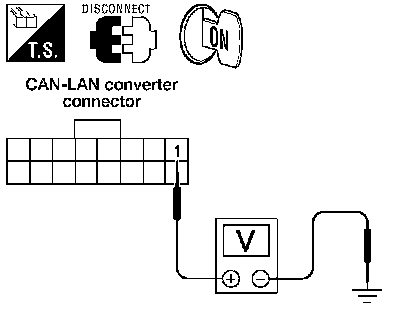

3. CHECK CLC POWER SUPPLY CIRCUIT
1. Disconnect CLC connector.
2. Turn ignition switch ON.
3. Check voltage between CLC connector M147 terminal 1 (W/B) and ground.
Battery voltage should exist.
OK or NG?
OK >> GO TO 4.
NG >> Repair harness or connectors.

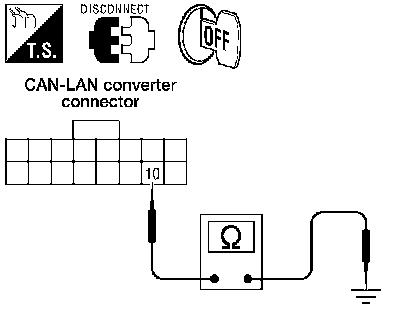

4. CHECK CLC GROUND CIRCUIT
1. Check continuity between CLC connector M147 terminal 10 (B) and ground.
Continuity should exist.
OK or NG?
OK >> Reconnect connectors and perform self-diagnosis. Repair or replace.
NG >> Repair harness or connectors.
