Symptom Matrix Chart

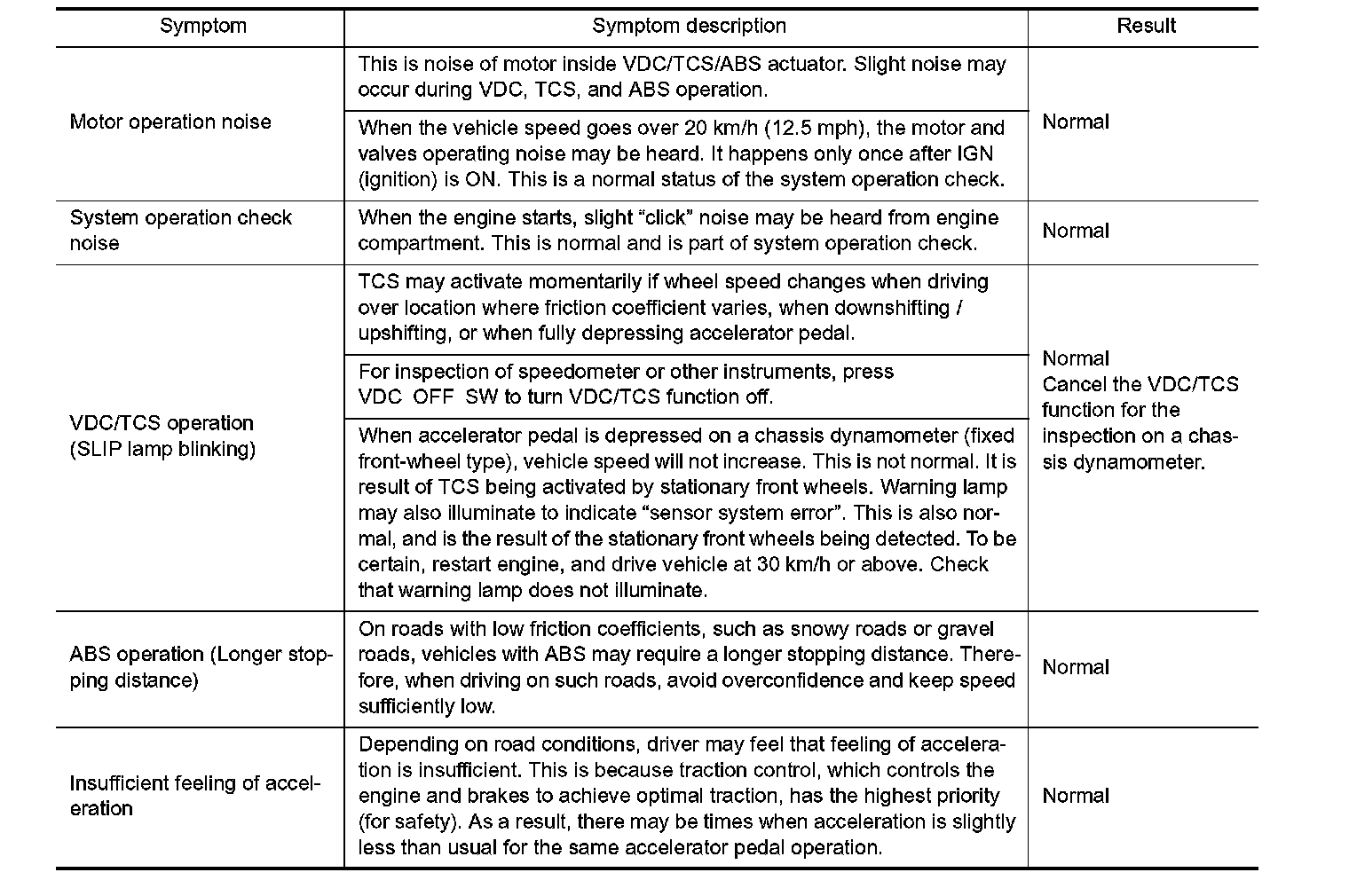

VDC/TCS/ABS SYMPTOM CHART:

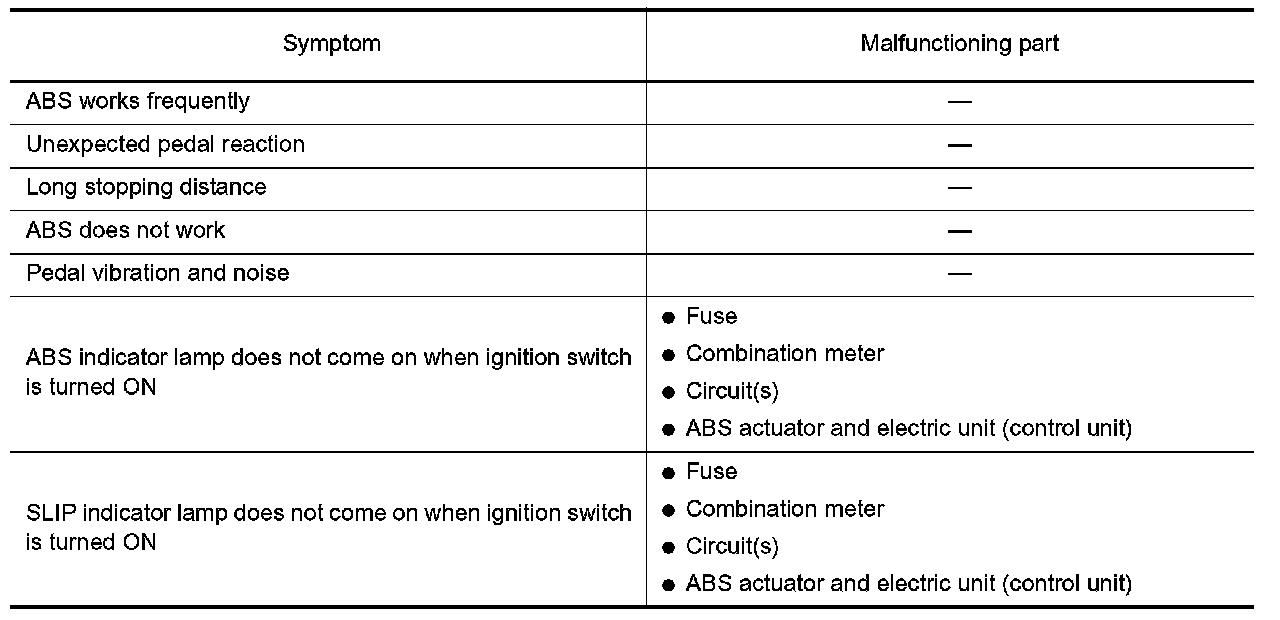

BASIC INSPECTION / SYMPTOM CHART - 1 Of 2:

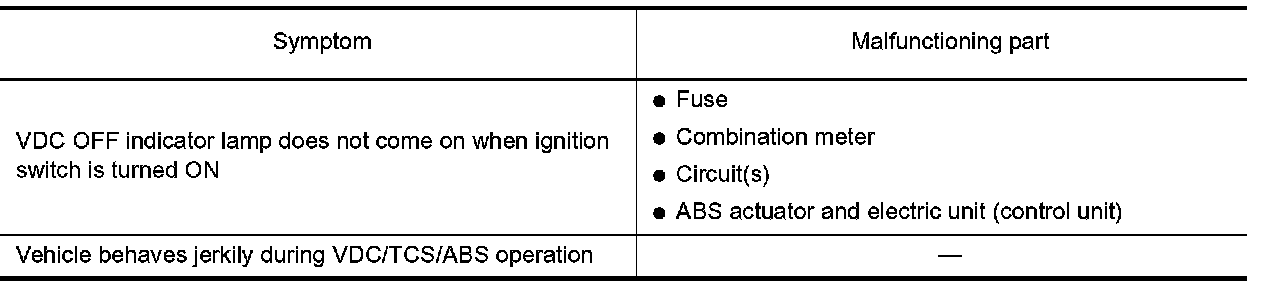

BASIC INSPECTION / SYMPTOM CHART - 2 Of 2:
