Data Monitor Procedure

DATA MONITOR
Operation Procedure
1. Turn ignition switch OFF.

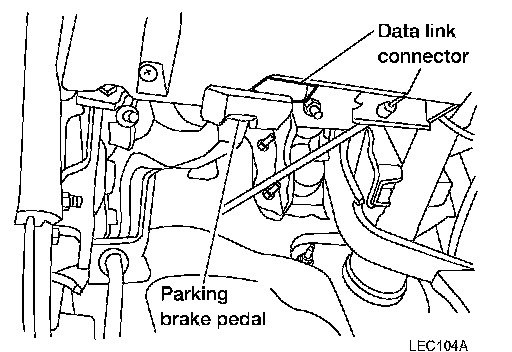

2. Connect CONSULT-II to data link connector.
3. Turn ignition switch ON.
4. Touch "START" on display.

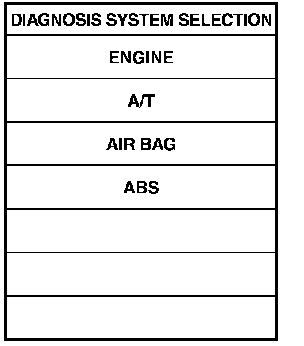

5. Touch "ABS" on display.

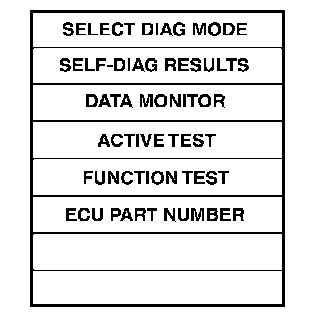

6. Touch "DATA MONITOR".

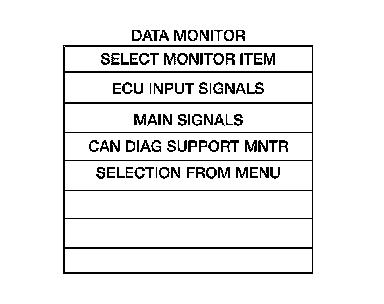

7. Return to monitor item selection screen and touch any of "ECU - INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU". Refer to "Display Item List".
Data Monitor - Display Item List

8. Touch "START".
9. Screen of data monitor is displayed.
