Test Item - Solenoid Valve

Test Item - Solenoid Valve

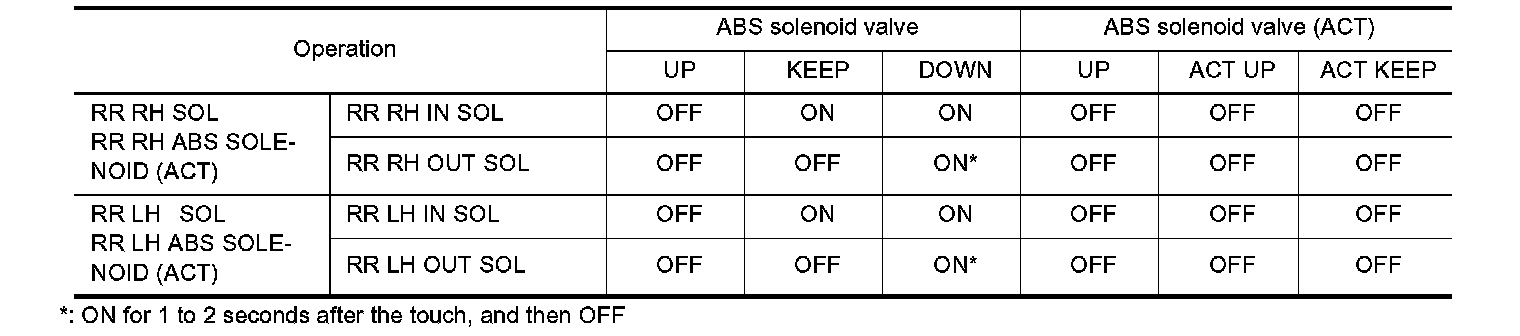

SOLENOID VALVE OPERATION CHART:

1. To perform active test of ABS functions, select major items for each test item.

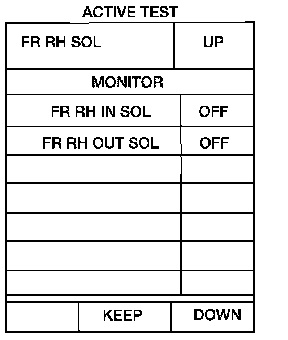

2. For ABS solenoid valve, touch "UP", "KEEP" and "DOWN". For ABS solenoid valve (ACT), touch "UP," "ACTUATOR UP" and "ACTUATOR KEEP". Use screen monitor to check that solenoid valve operates as shown in Solenoid Valve Operation Chart.

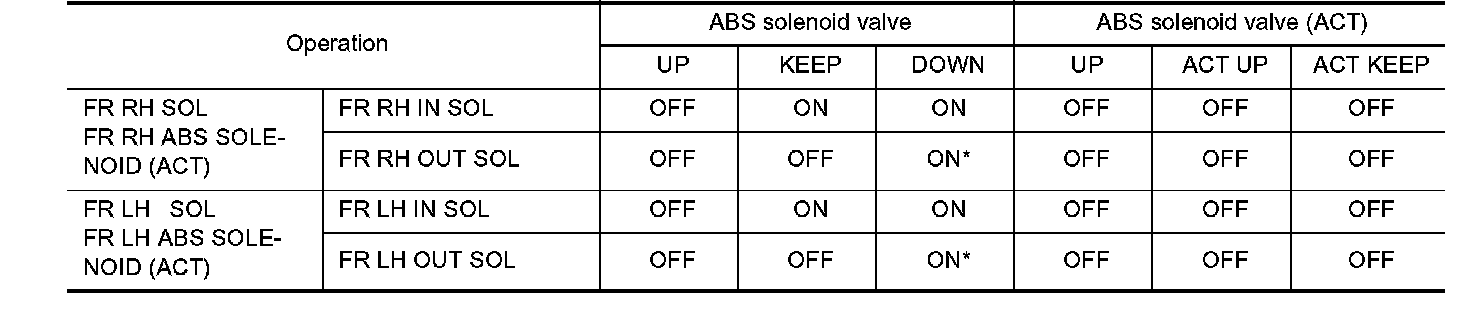

SOLENOID VALVE OPERATION CHART:

NOTE: If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
After "TEST IS STOPPED" is displayed. to perform test again. repeat Active Test Step 6.
