Active Test Operation Procedure

ACTIVE TEST
Operation Procedure

CAUTION: Do not perform active test while driving the vehicle.
Make sure to completely bleed air from brake system.
Active test cannot be performed when ABS warning lamp is on.

1. Connect the CONSULT-II connector to the data link connector and start the engine.
2. Touch "START" on the display.

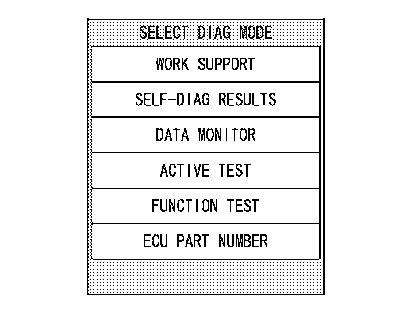

3. Touch "ABS" and "ACTIVE TEST".

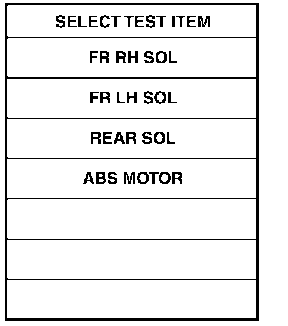

4. Test item selection screen is displayed.
5. Touch necessary test item.
6. Touch "START".
7. Carry out the active test by touching screen key.
8. "ACTIVE TEST" screen will be displayed, so conduct following tests.
- Solenoid Valve
Test Item - Solenoid Valve

- ABS Motor.
Test Item - ABS Motor
