Data Monitor

DATA MONITOR
For details of data monitor function, refer to "CONSULT-II Instruction Manual".

Operation Procedure
1. Turn ignition switch OFF.

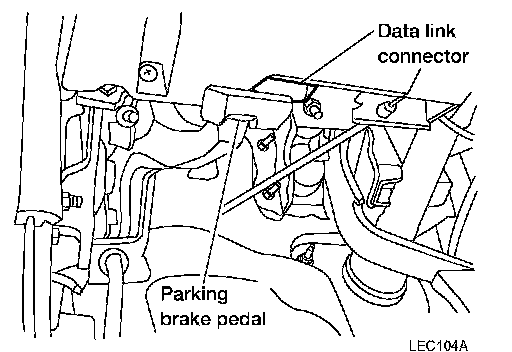

2. Connect CONSULT-II to data link connector.
3. Turn ignition switch ON.
4. Touch "START" on display.

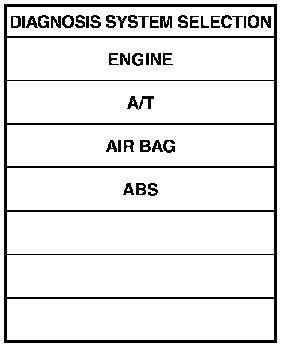

5. Touch "ABS" on display.

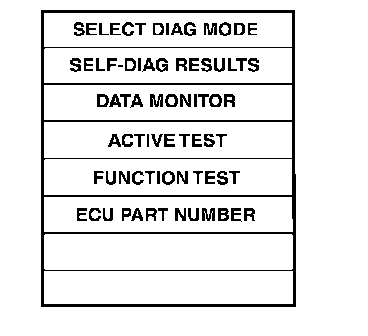

6. Touch "DATA MONITOR".

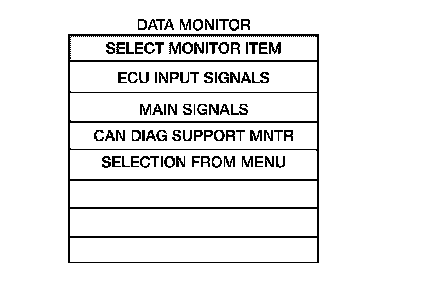

7. Return to monitor item selection screen and touch any of "ECU . INPUT SIGNALS", "MAIN SIGNALS", "CAN DIAG SUPPORT MNTR" or "SELECTION FROM MENU".

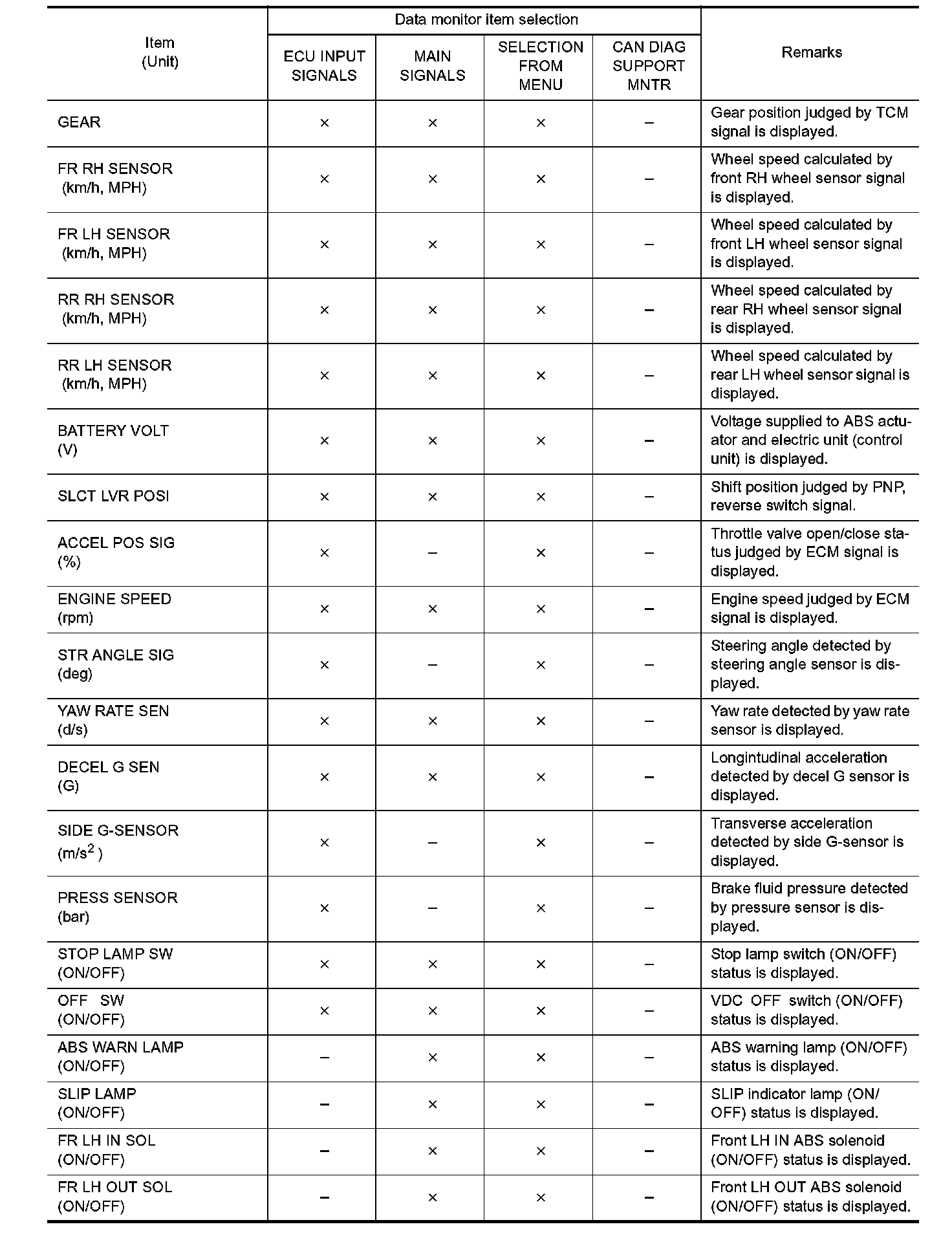

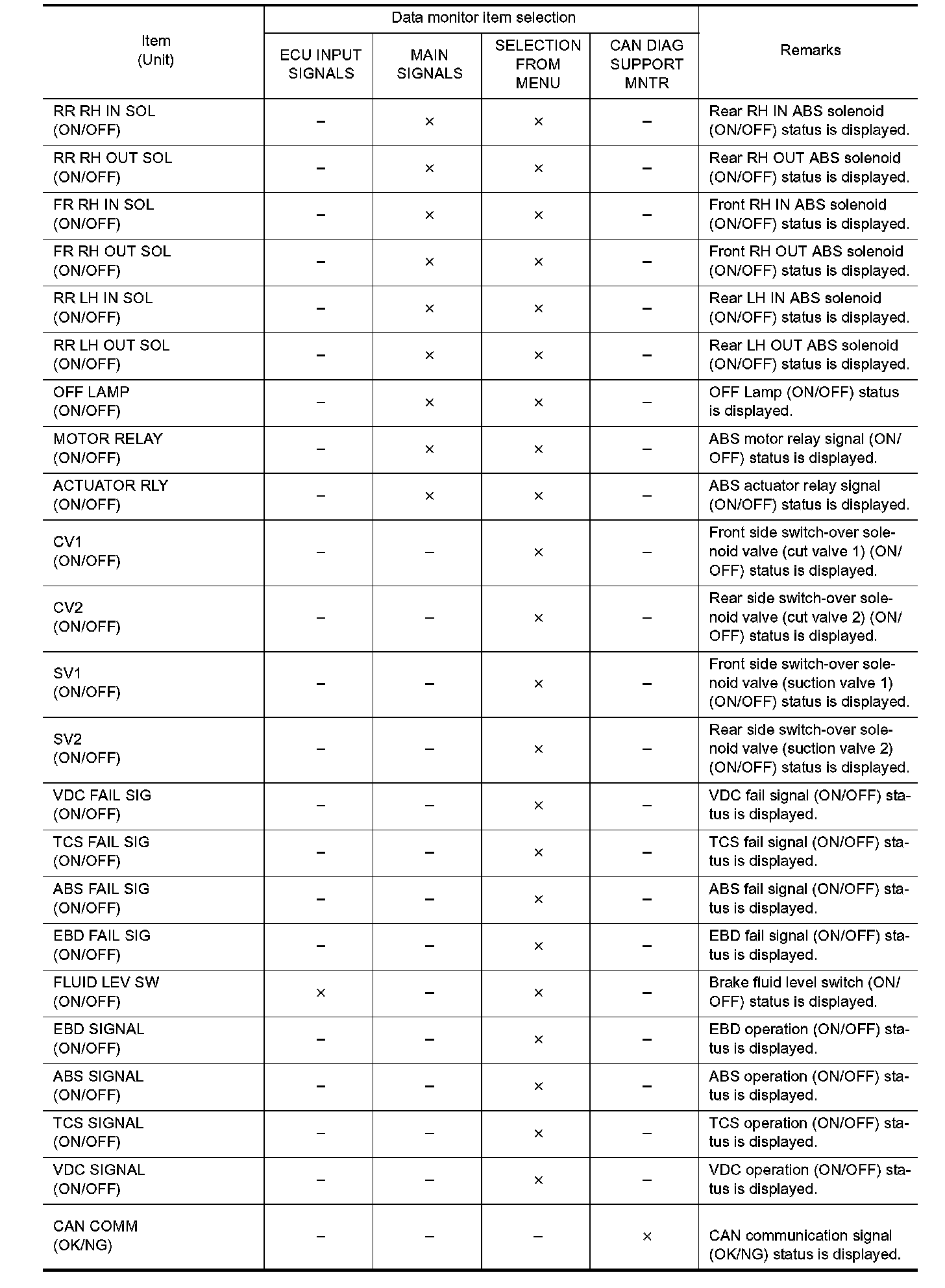

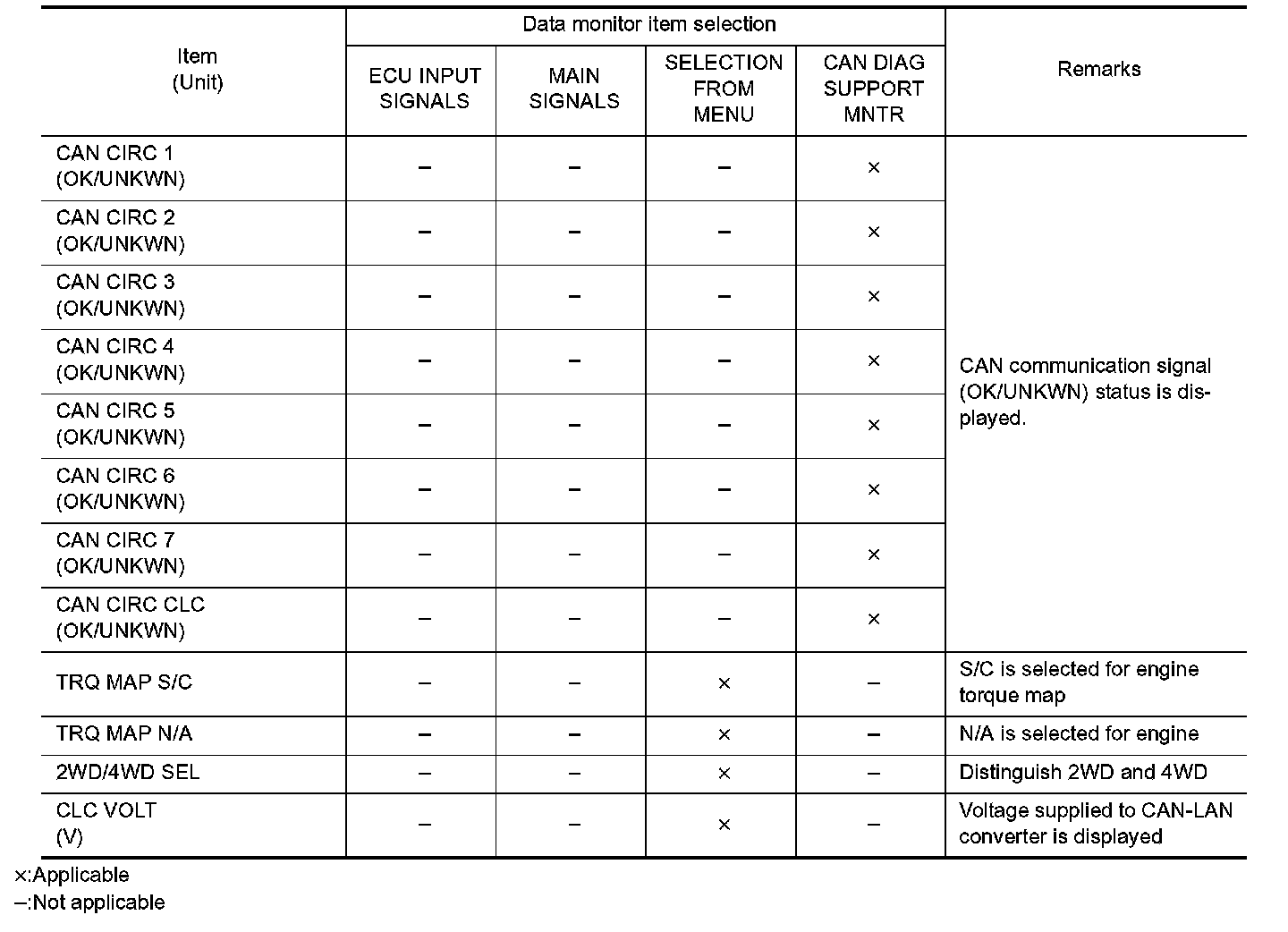

DATA MONITOR - VDC/TCS/ABS DISPLAY ITEM LIST:

x: Applicable
-: Not applicable

8. Touch "START".
9. Screen of data monitor is displayed.
