Basic Operation Procedure

CONSULT-II BASIC OPERATION PROCEDURE
1. Turn ignition switch OFF.

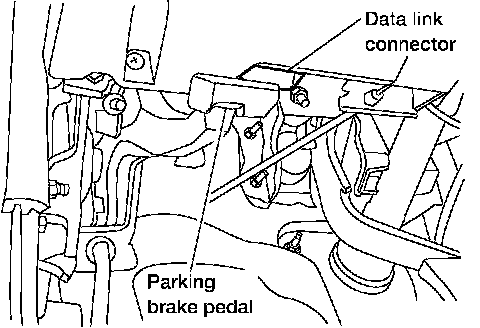

2. Connect CONSULT-II to data link connector.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

3. Turn ignition switch ON.

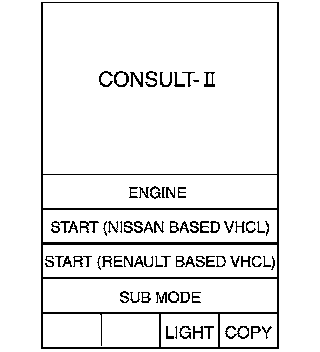

4. Touch "START (NISSAN BASED VHCL)".






5. Touch "ABS" in "SELECT SYSTEM" screen. If "ABS" is not indicated, go to "CONSULT-II Data Link Connector (DLC) Circuit".
Diagnostic Aids

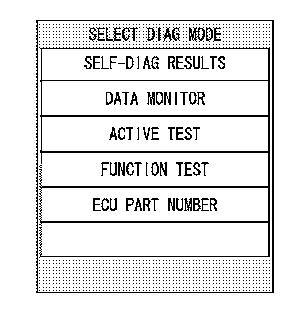

6. Select required diagnostic location from "SELECT DIAG MODE" screen.
