ABS/TCS/Vdc

STANDARDS USING CIRCUIT TESTER AND OSCILLOSCOPE

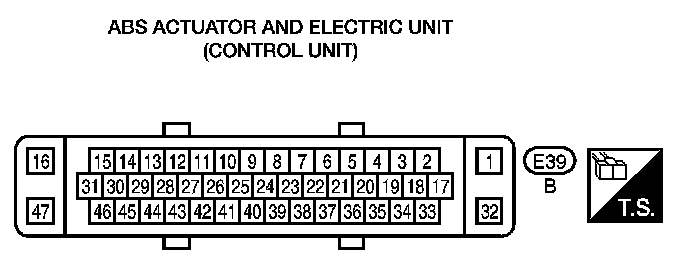

CAUTION: Connect ABS actuator and electric unit (control unit) connector, and then turn ignition switch ON.

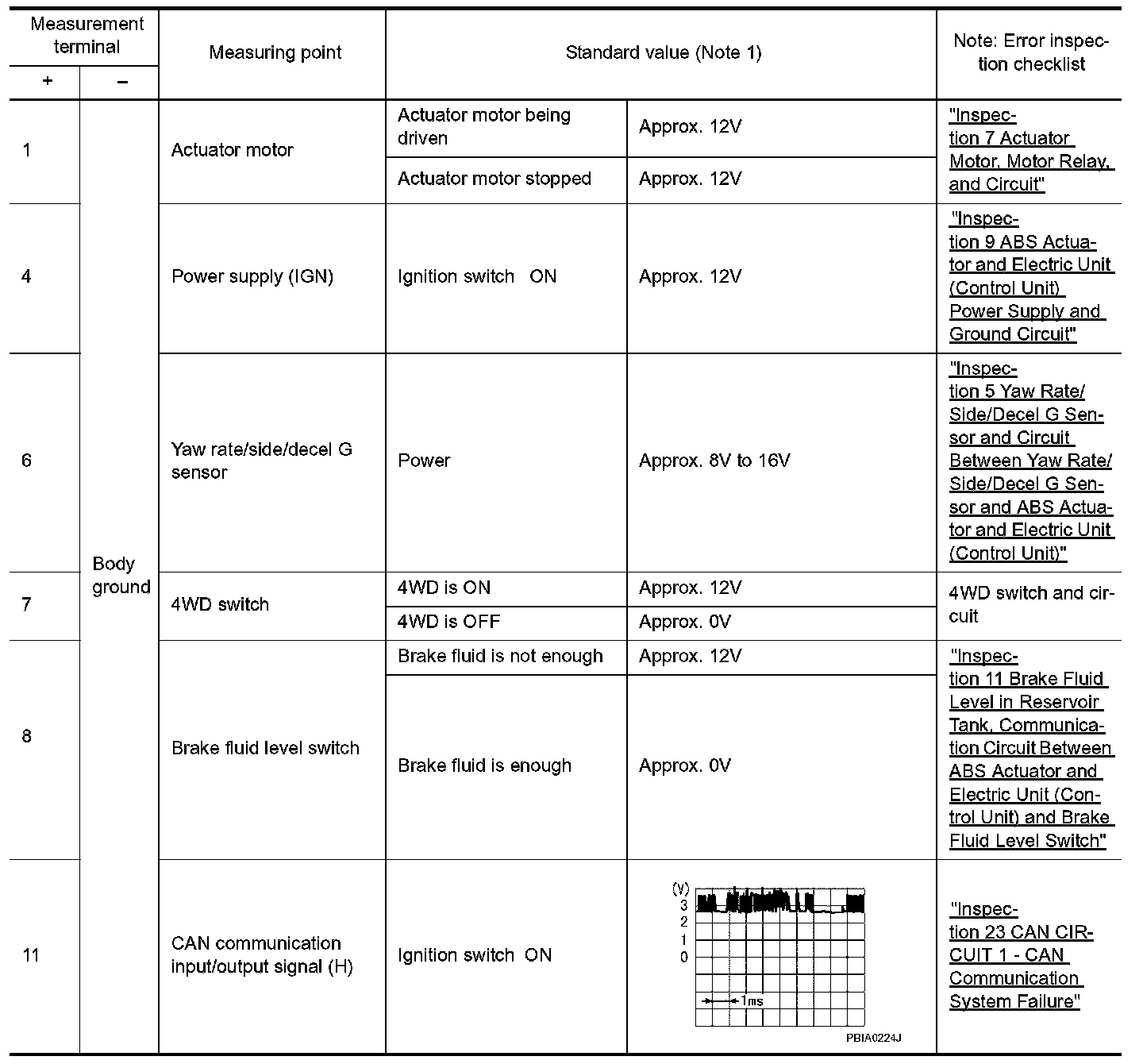

VDC/TCS/ABS ACTUATOR & ELECTRIC UNIT (CONTROL UNIT) INPUT/OUTPUT SIGNAL STANDARD - Standards Using Circuit Tester & Oscilloscope / 1 Of 3:

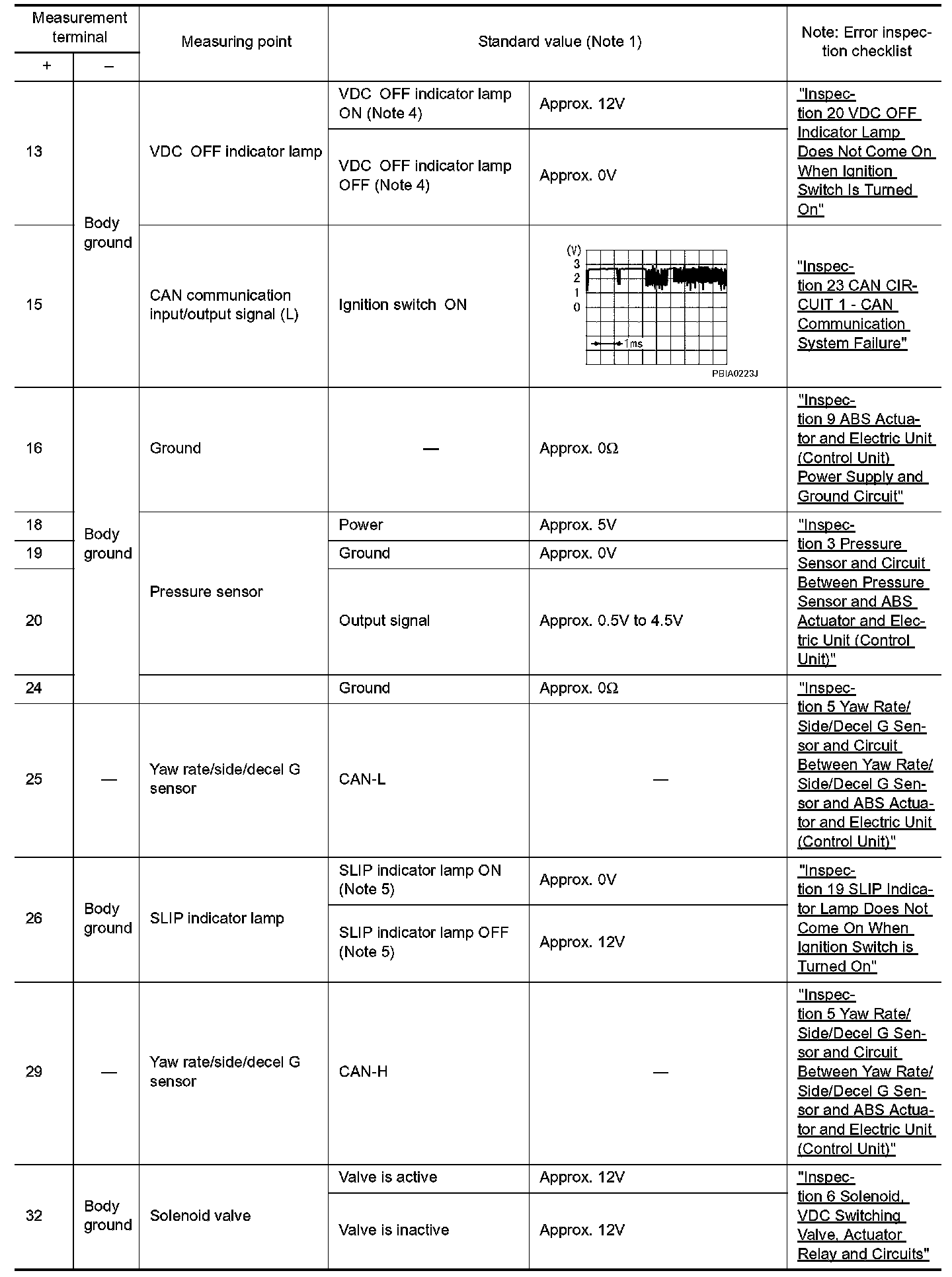

VDC/TCS/ABS ACTUATOR & ELECTRIC UNIT (CONTROL UNIT) INPUT/OUTPUT SIGNAL STANDARD - Standards Using Circuit Tester & Oscilloscope / 2 Of 3:

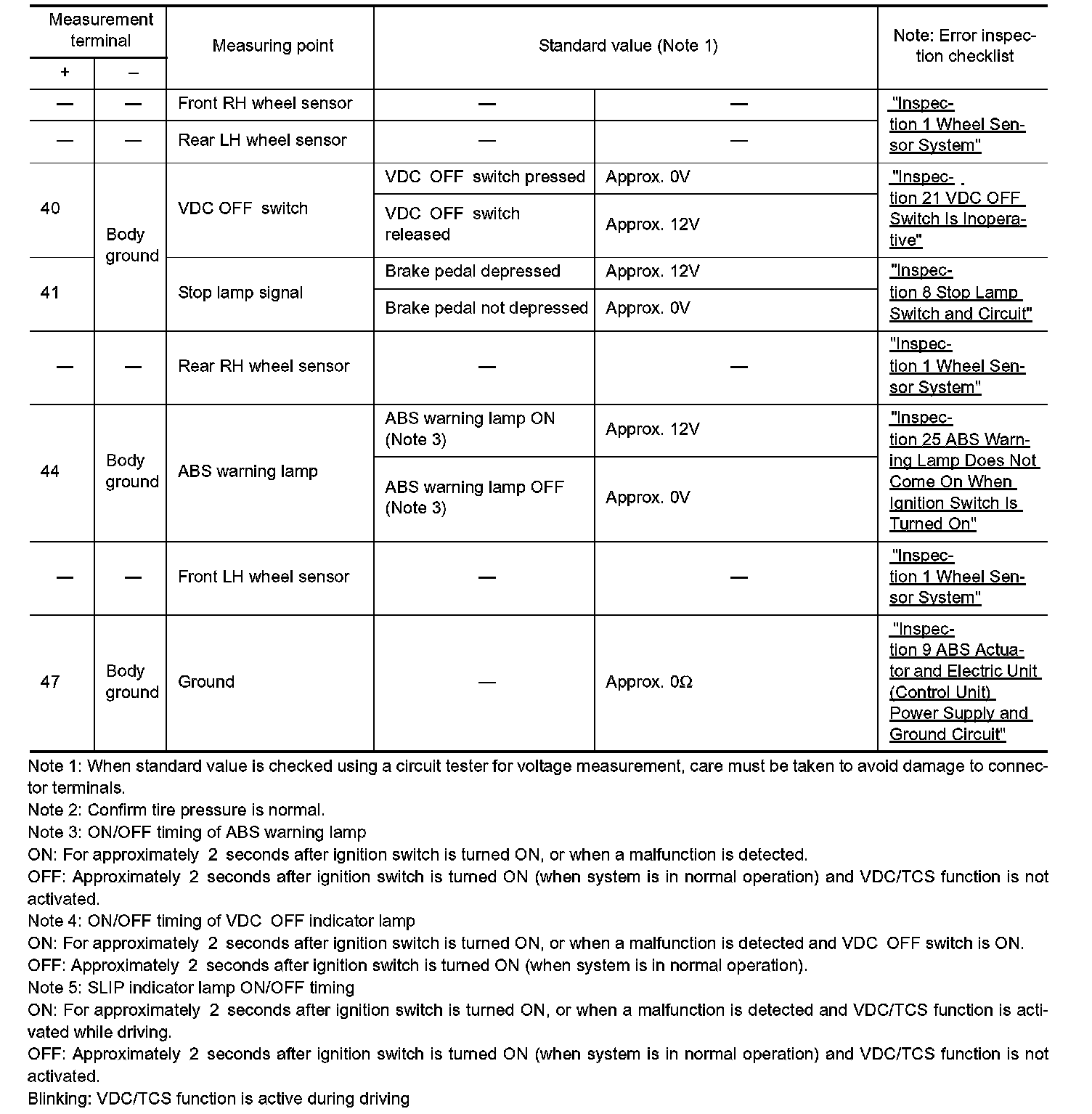

INPUT/OUTPUT SIGNAL STANDARD - Standards Using Circuit Tester & Oscilloscope / 3 Of 3:

STANDARDS BY CONSULT-II

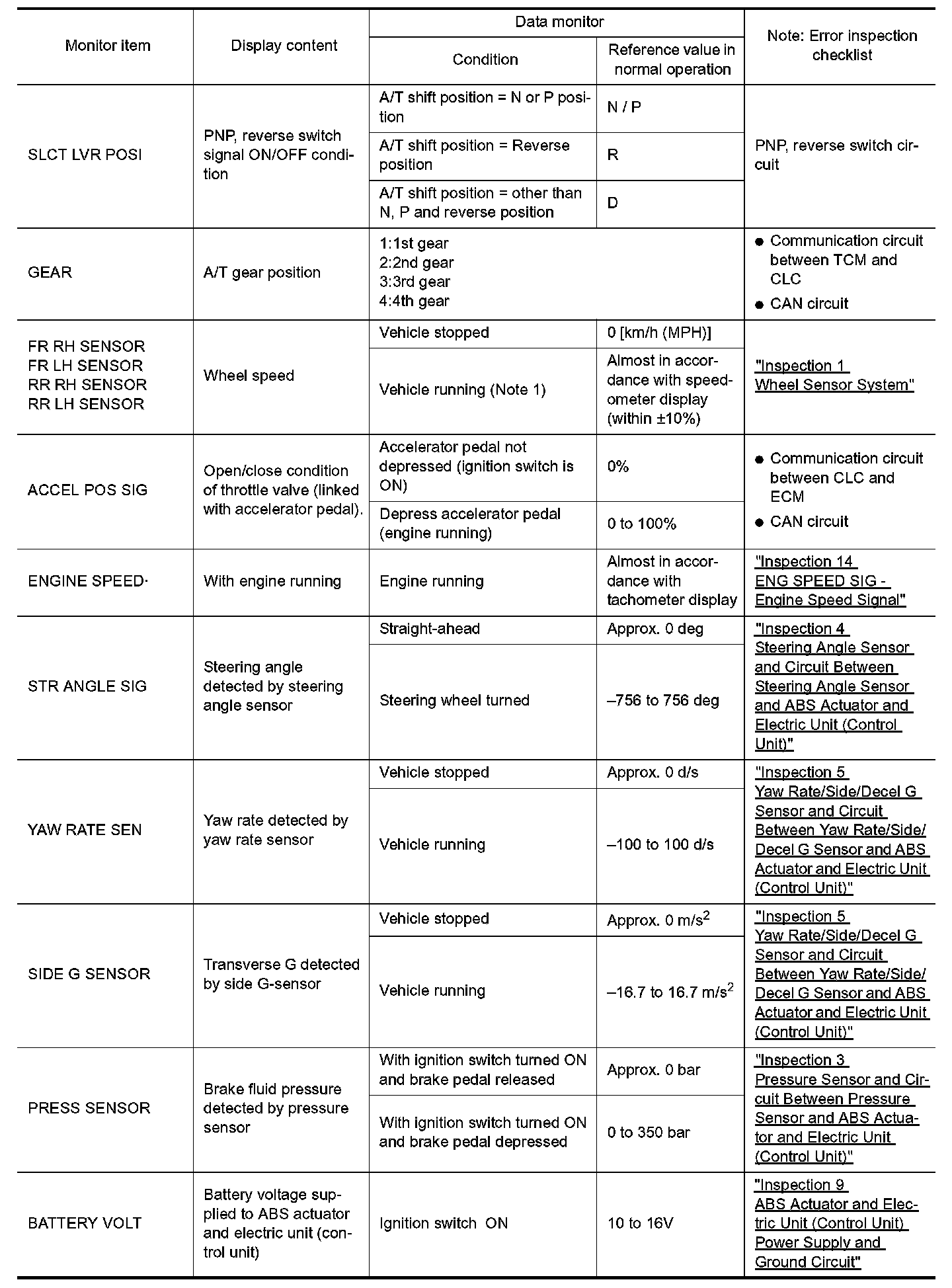

VDC/TCS/ABS ACTUATOR & ELECTRIC UNIT (CONTROL UNIT) INPUT/OUTPUT SIGNAL STANDARD - Standards By CONSULT II:

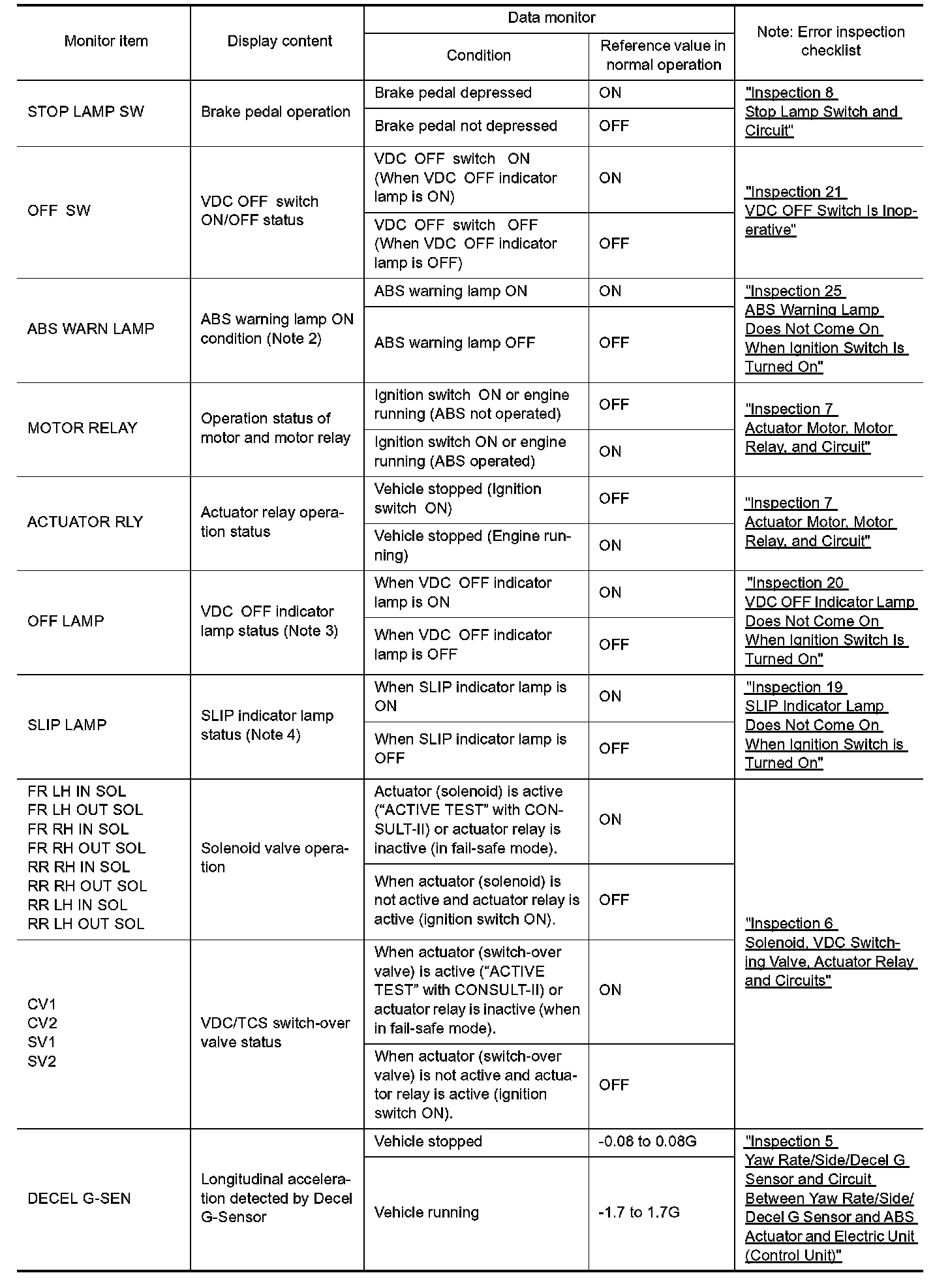

VDC/TCS/ABS ACTUATOR & ELECTRIC UNIT (CONTROL UNIT) INPUT/OUTPUT SIGNAL STANDARD - Standards By CONSULT II:

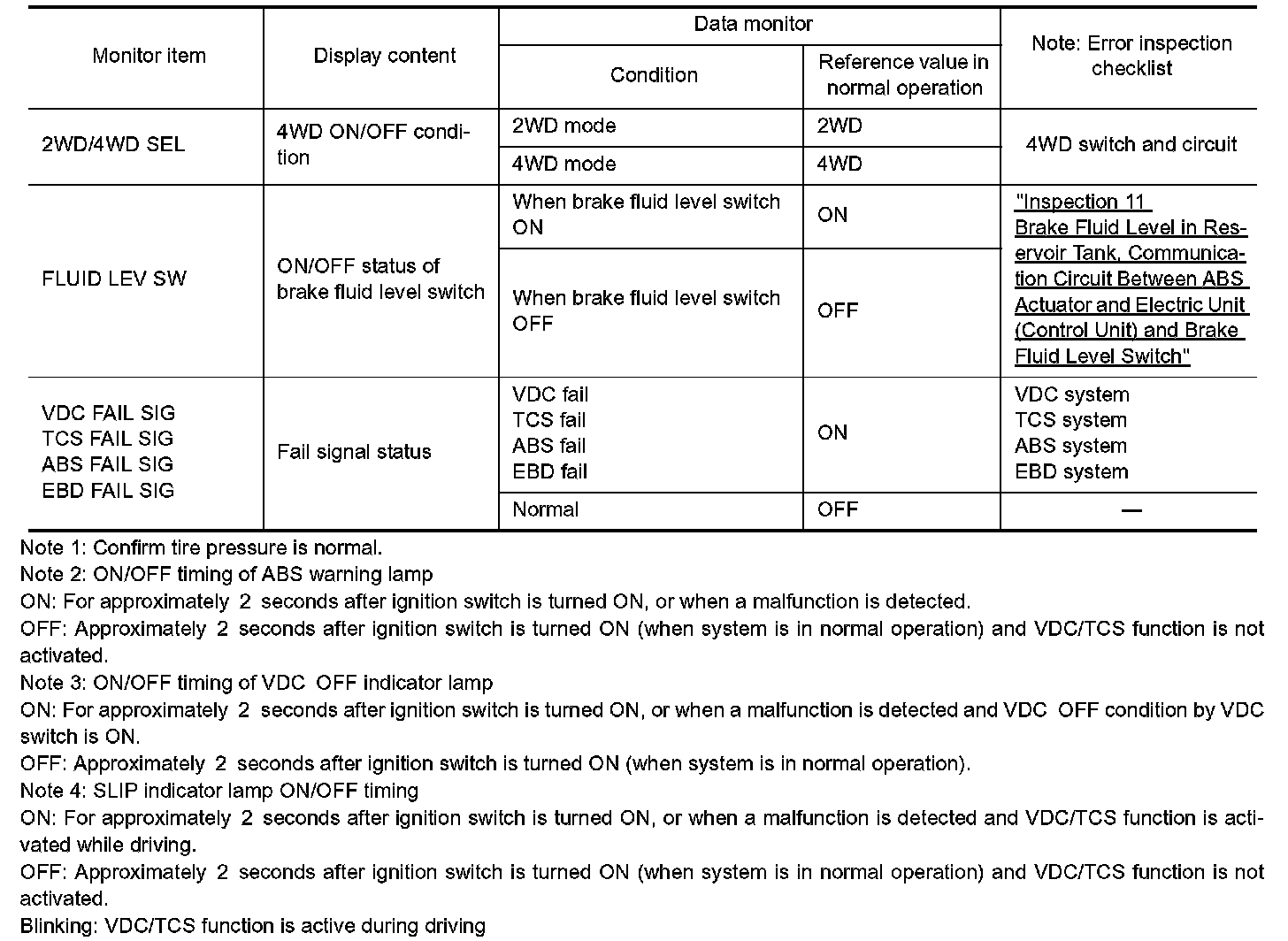

VDC/TCS/ABS ACTUATOR & ELECTRIC UNIT (CONTROL UNIT) INPUT/OUTPUT SIGNAL STANDARD - Standards By CONSULT II:

CAUTION: Items displayed are data calculated by the control unit and may indicate normal operation even if output circuit (harness) is open or shorted.
