ABS

STANDARDS USING CIRCUIT TESTER AND OSCILLOSCOPE

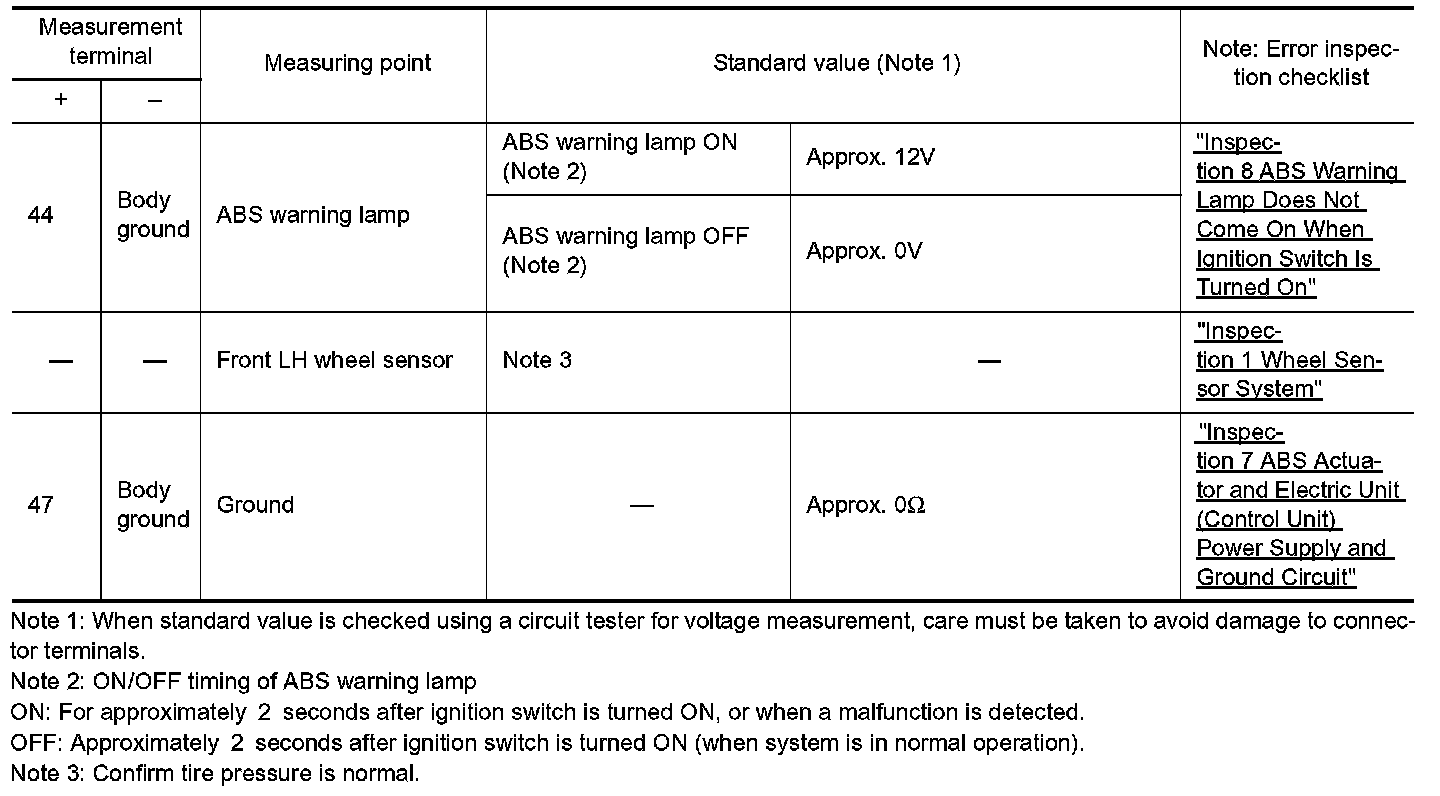

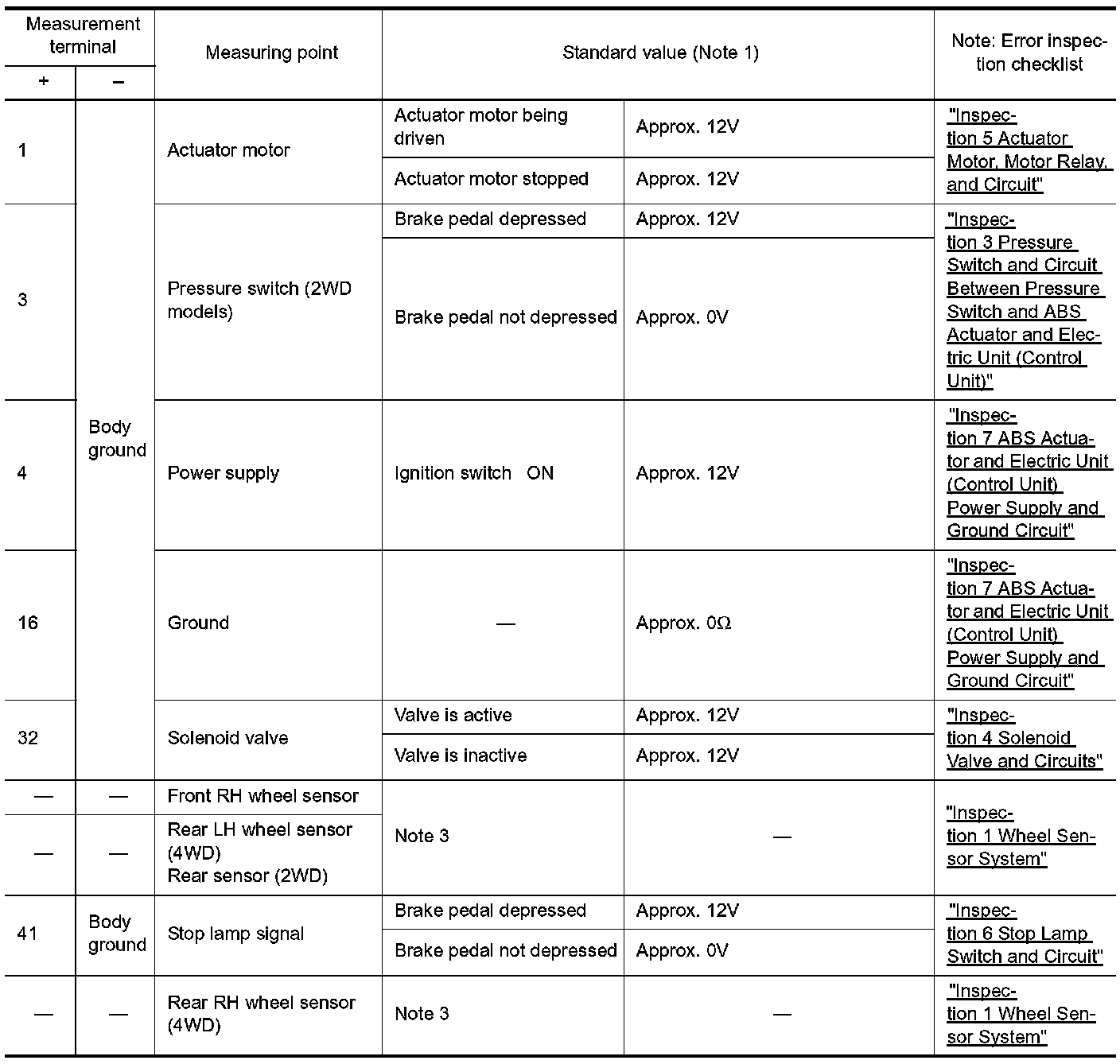

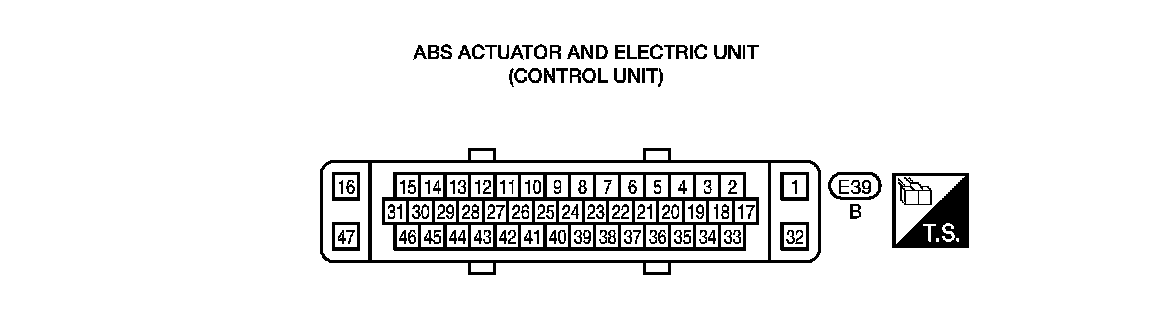

ABS ACTUATOR & ELECTRIC UNIT (CONTROL UNIT) INPUT/OUTPUT SIGNAL STANDARD - Standards Using Circuit Tester & Oscilloscope:

CAUTION: Connect ABS actuator and electric unit (control unit) connector, and then turn ignition switch ON.

STANDARDS BY CONSULT-II

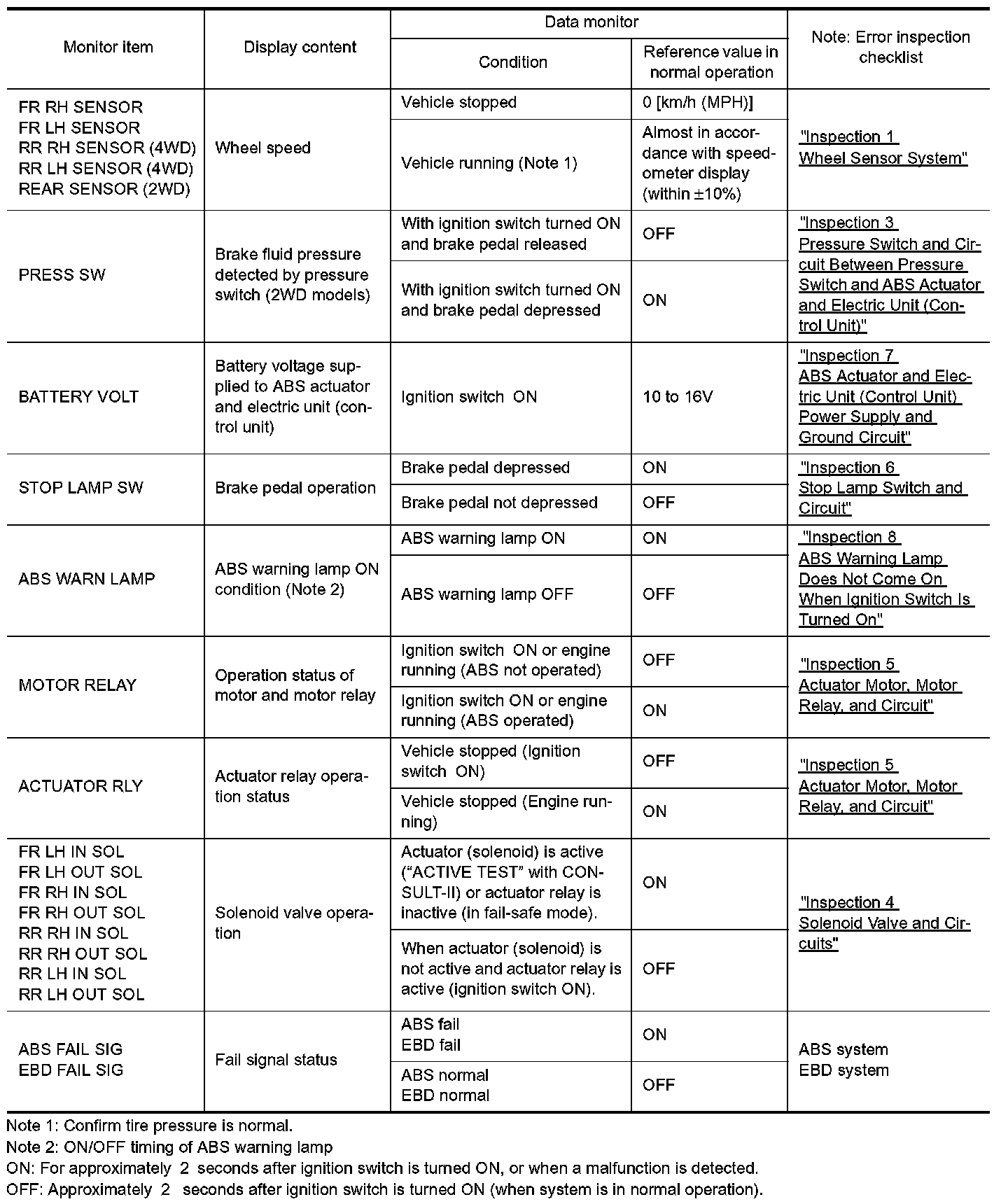

ABS ACTUATOR & ELECTRIC UNIT (CONTROL UNIT) INPUT/OUTPUT SIGNAL STANDARD - Standards By CONSULT II:

CAUTION: Items displayed are data calculated by the control unit and may indicate normal operation even if output circuit (harness) is open or shorted.
