ABS/TCS/Vdc
>>
Warning Lamp and Indicator Timing
Warning Lamp and Indicator Timing

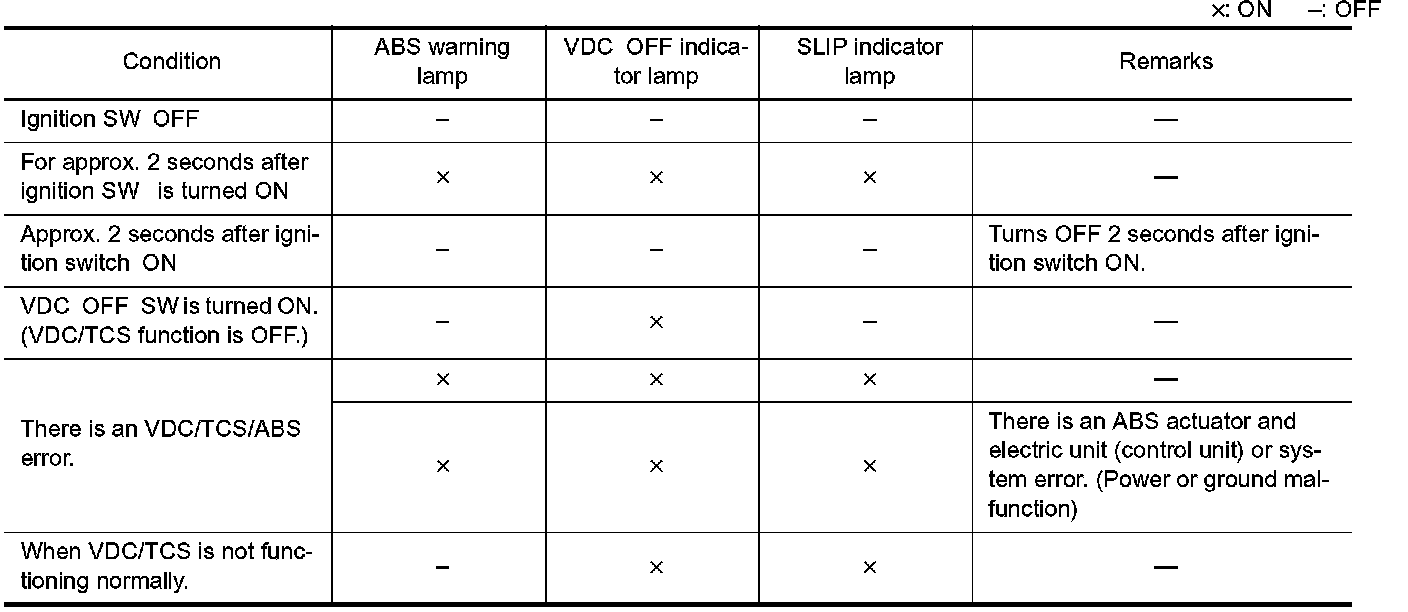

ON AND OFF TIMING FOR ABS WARNING LAMP, VDC OFF INDICATOR LAMP, AND SLIP INDICATOR LAMP:
