BRC-ABS

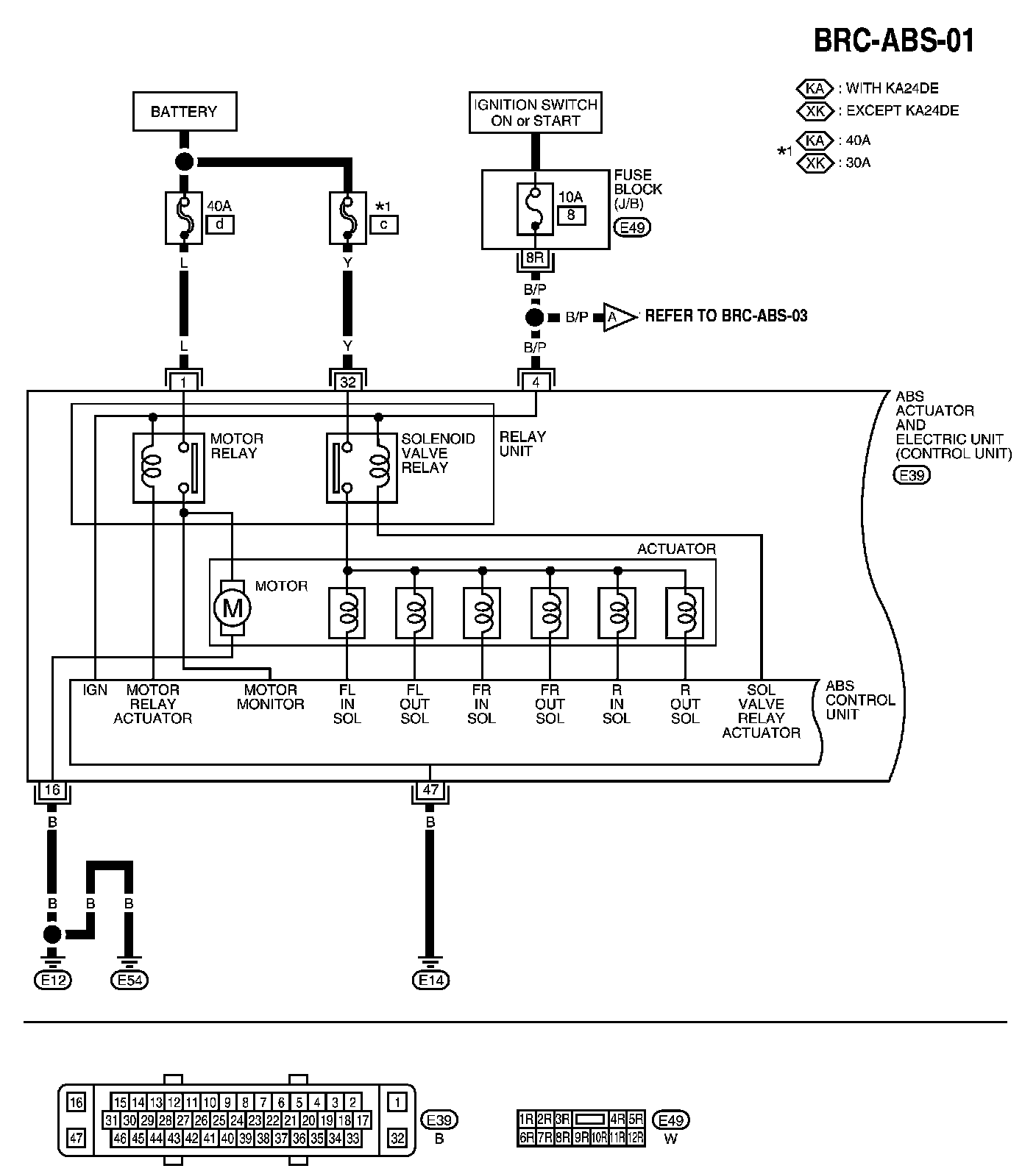

BRC-ABS-01 (2WD):

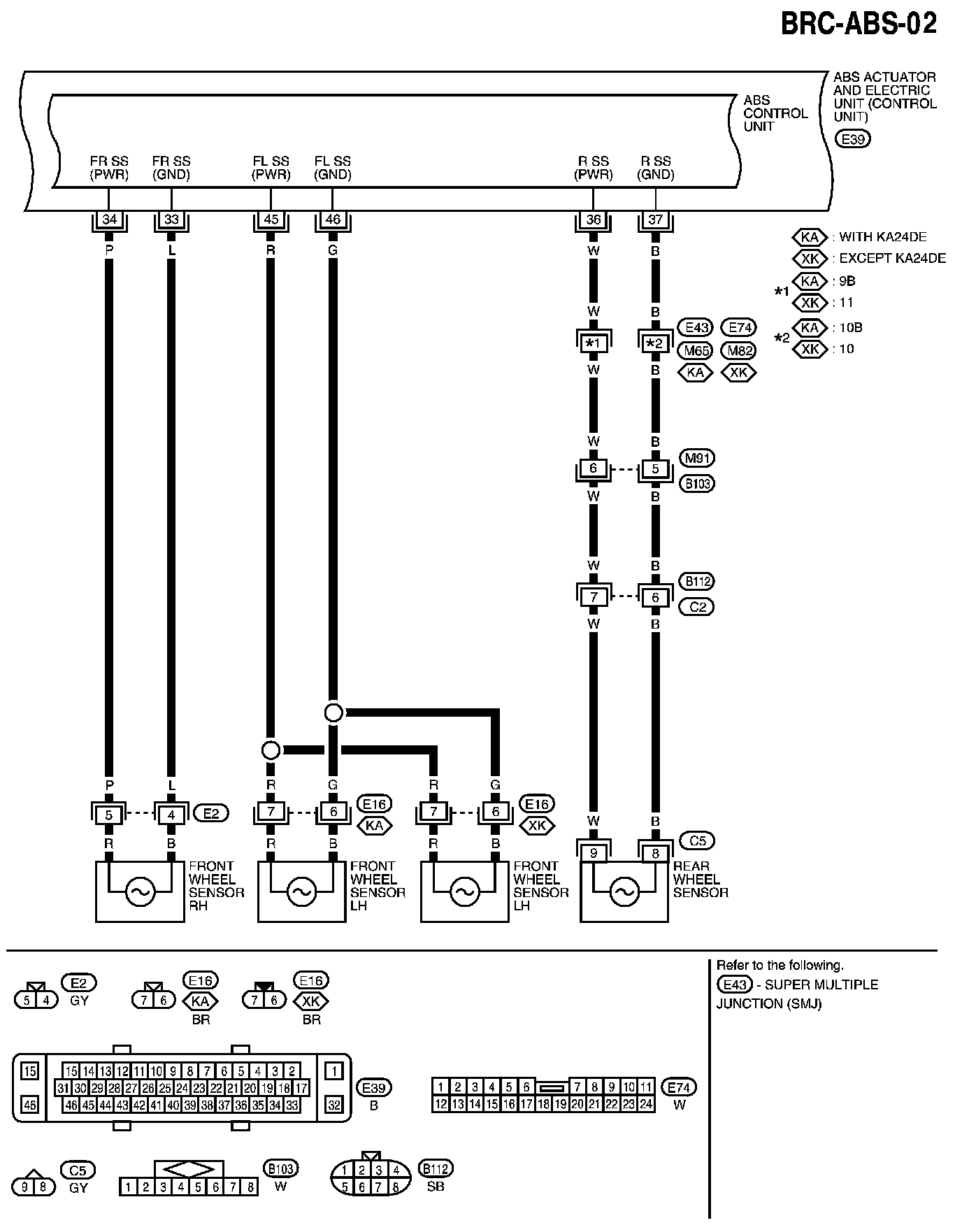

BRC-ABS-02 (2WD):

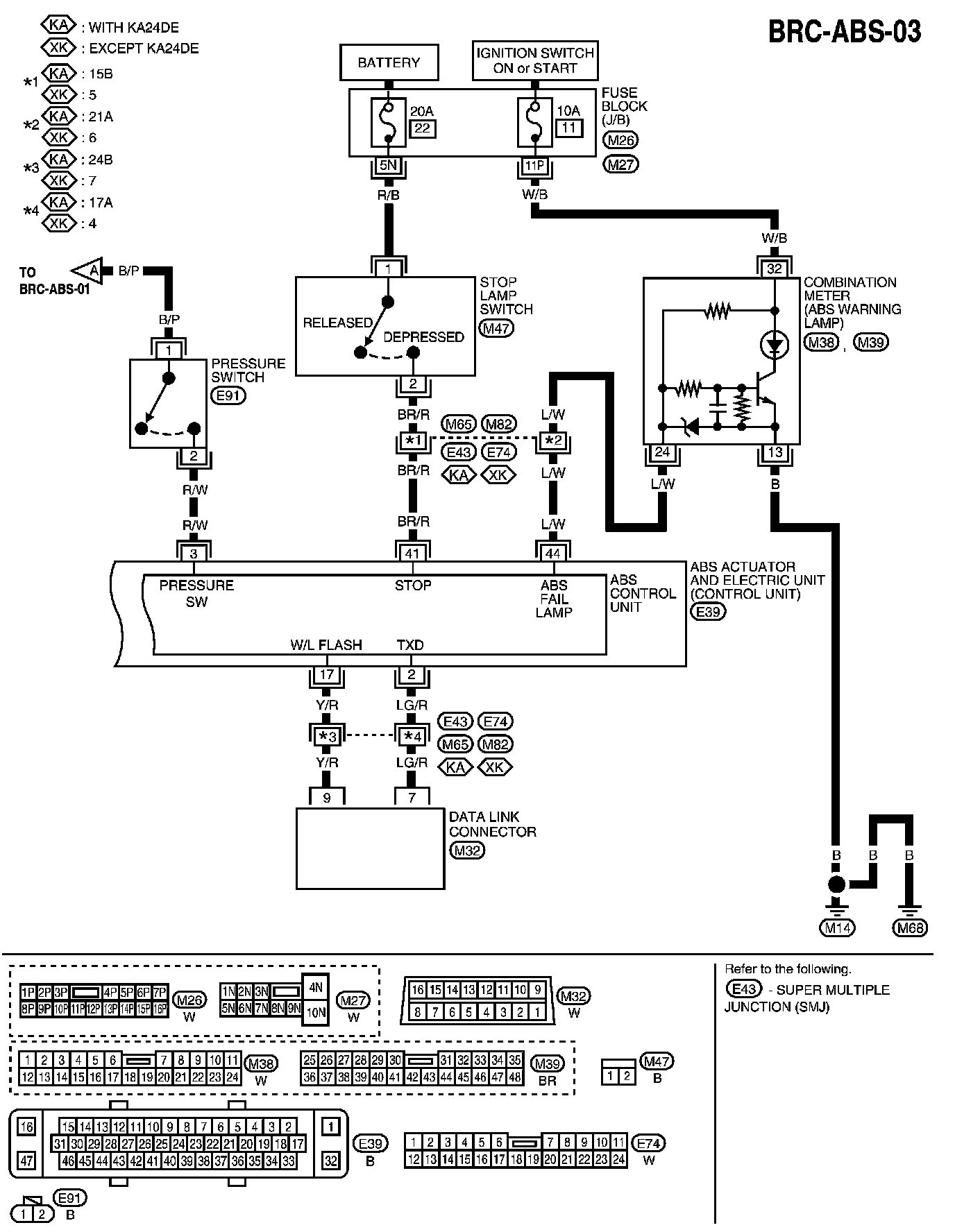

BRC-ABS-03 (2WD):

BRC-ABS

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name.
