CAN Communication System

CAN COMMUNICATION
System Description
Controller Area Network (CAN) is a serial communication line for real time application.

It is an on-vehicle multiplex communication line with high data communication speed and excellent error detection ability. Many electronic control units are equipped onto a vehicle, and each control unit shares information and links with other control units during operation (not independent).

In CAN communication, control units are connected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.

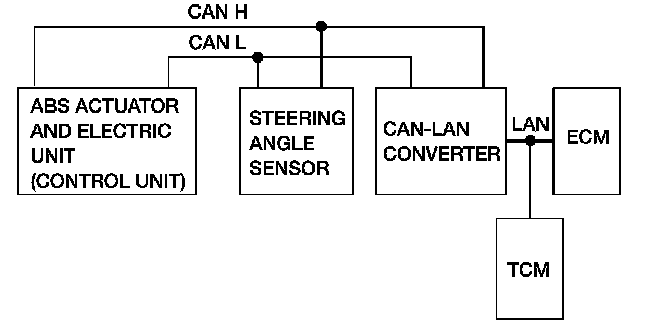

VDC/TCS/ABS - CAN COMMUNICATION SYSTEM DIAGRAM:

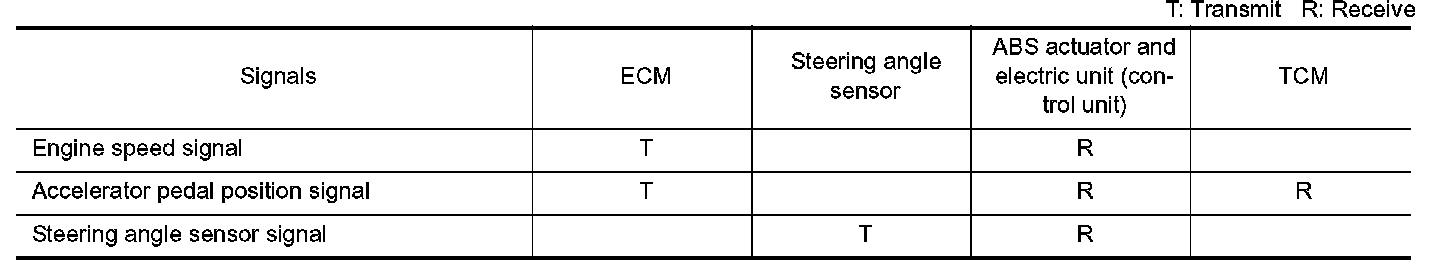

VDC/TCS/ABS - CAN COMMUNICATION - INPUT/OUTPUT SIGNAL CHART:

Each control unit transmits/receives data but selectively reads required data only.
