Power Supply and Ground Circuit Check

MAIN POWER SUPPLY AND GROUND CIRCUIT CHECK

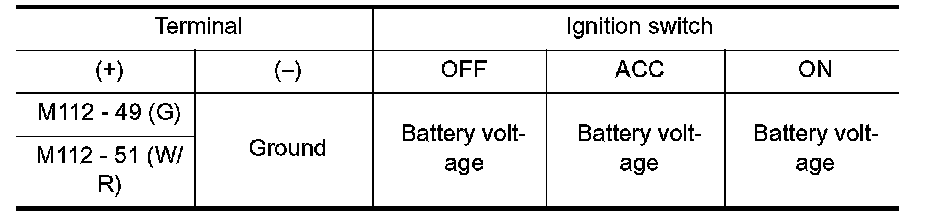

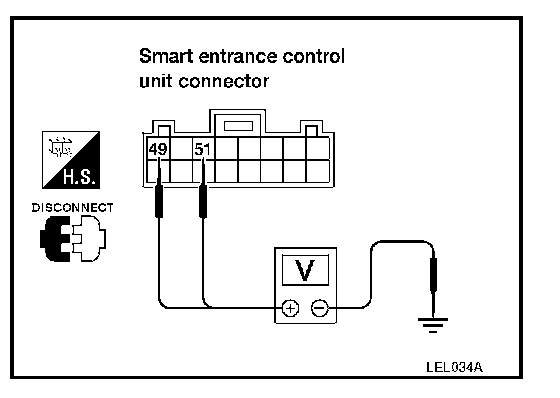

Main Power Supply Circuit Check

If NG, check the following.
- 40 A fusible link (letter f, located in fuse and fusible link box)
- 7.5 A fuse [No. 28, located in fuse block (J/B)]
- Circuit breaker
- Harness for open or short between smart entrance control unit and fuse
- Harness for open or short between circuit breaker and fuse




Ground Circuit Check
