Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> Door Switch Check

Door Switch Check

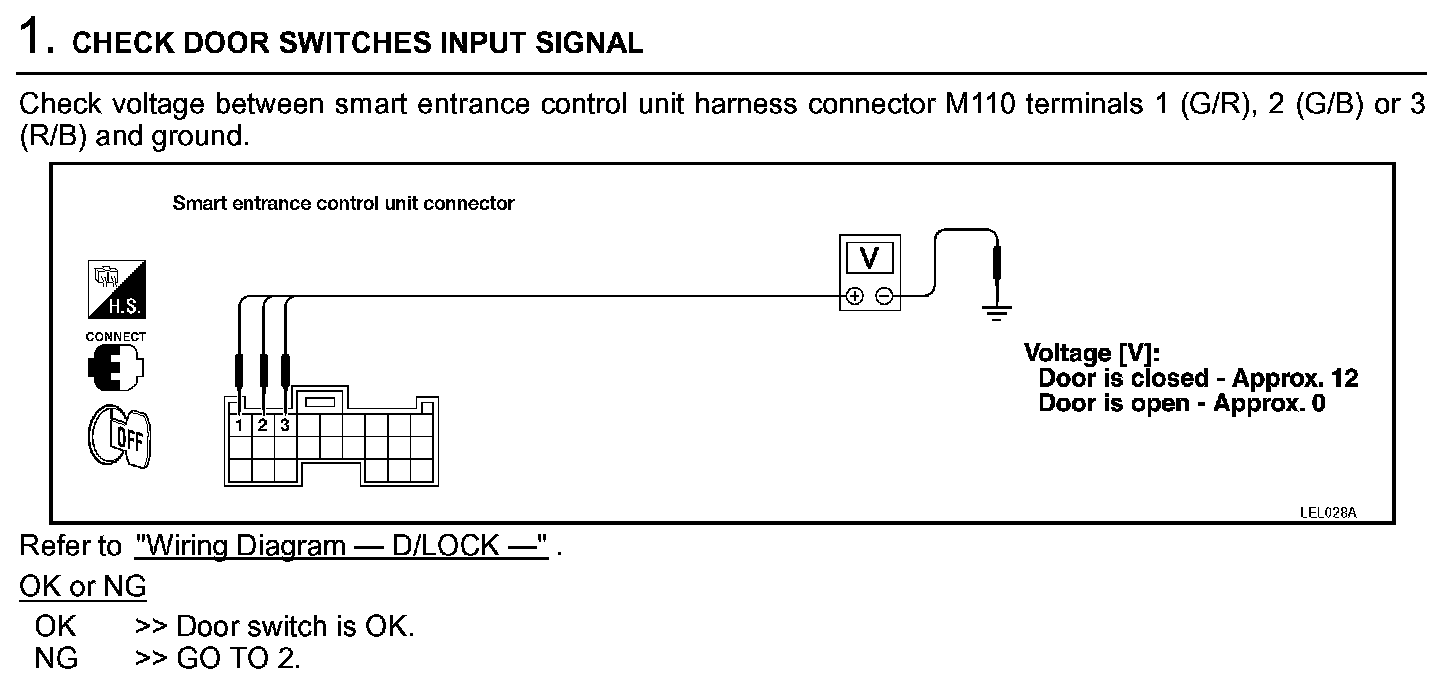

Diagnostic Procedure Step 1:

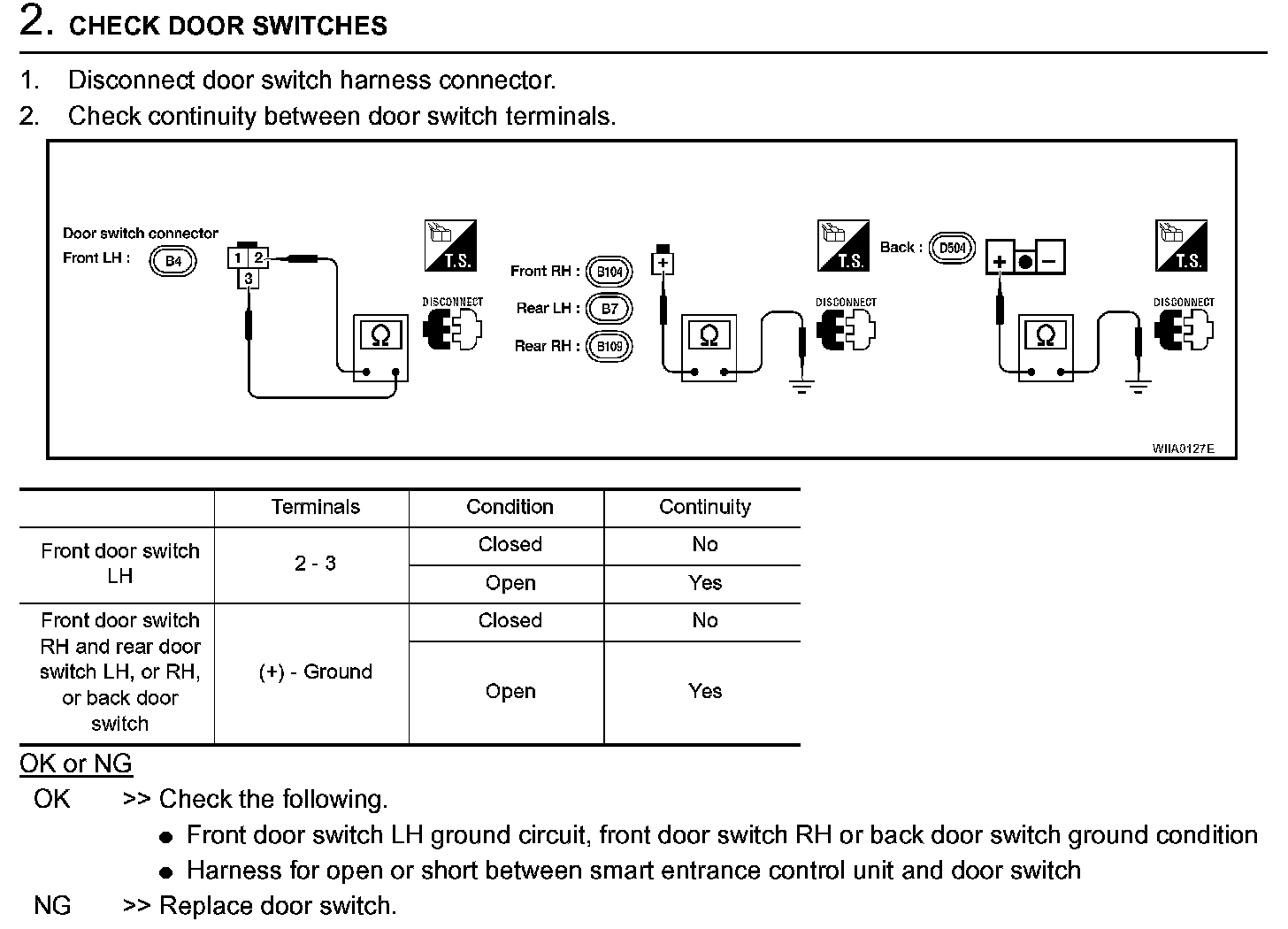

Diagnostic Procedure Step 2:
