Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Non-Trouble Code Procedures

Non-Trouble Code Procedures

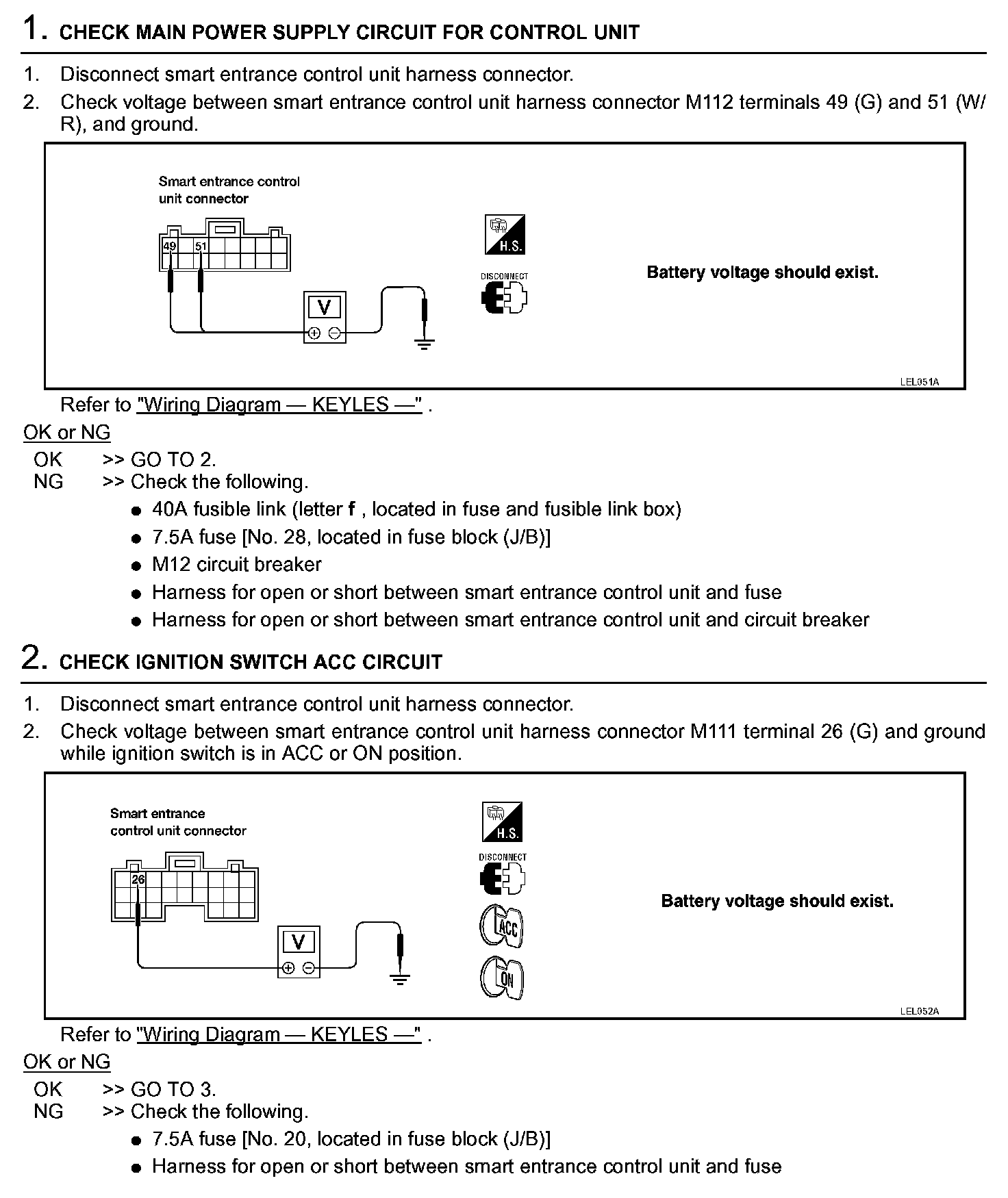

Diagnostic Procedure Step 1 - 2:

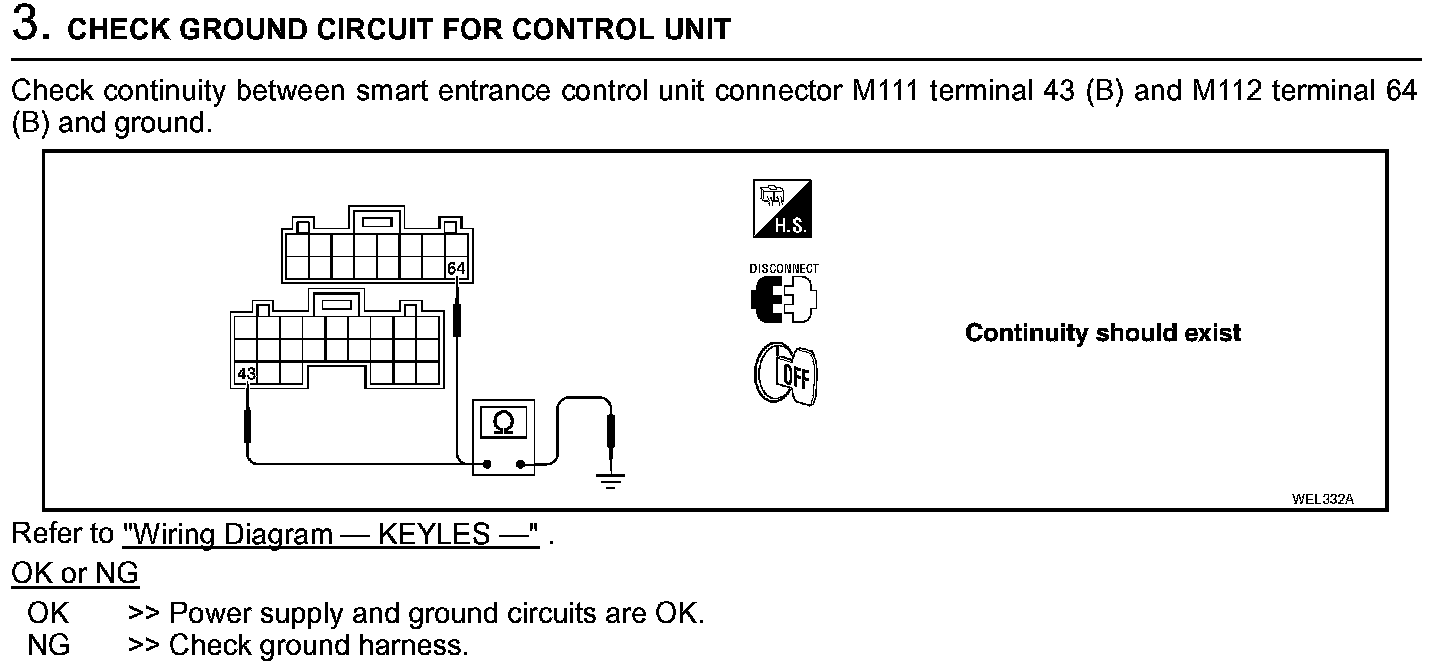

Diagnostic Procedure Step 3:
