Audio Unit
AUDIO UNITAll voltage inspections are made with:
- Ignition switch ON or ACC
- Audio unit ON
- Audio unit connected (If removed for inspection, supply a ground to the case using a jumper wire.)

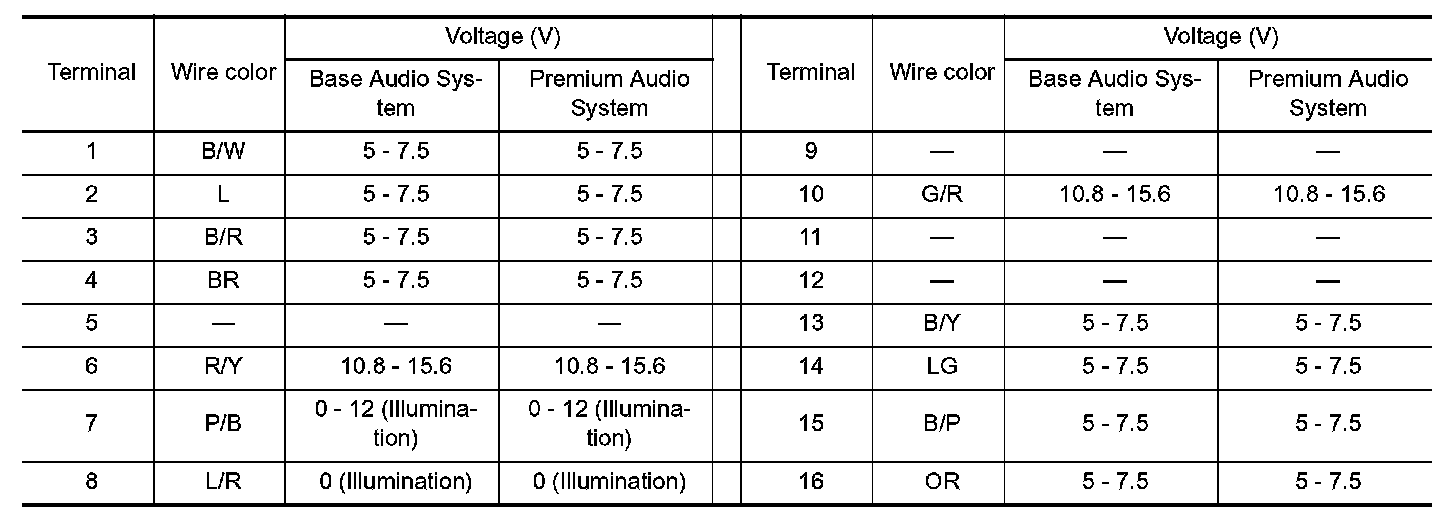

Audio Unit Voltages:
AUDIO UNIT VOLTAGES
All voltage inspections are made with:
- Ignition switch ON or ACC
- Audio unit ON
- Audio unit connected (If removed for inspection, supply a ground to the case using a jumper wire.)
AUDIO UNIT VOLTAGES
