Diagnosis By Symptom

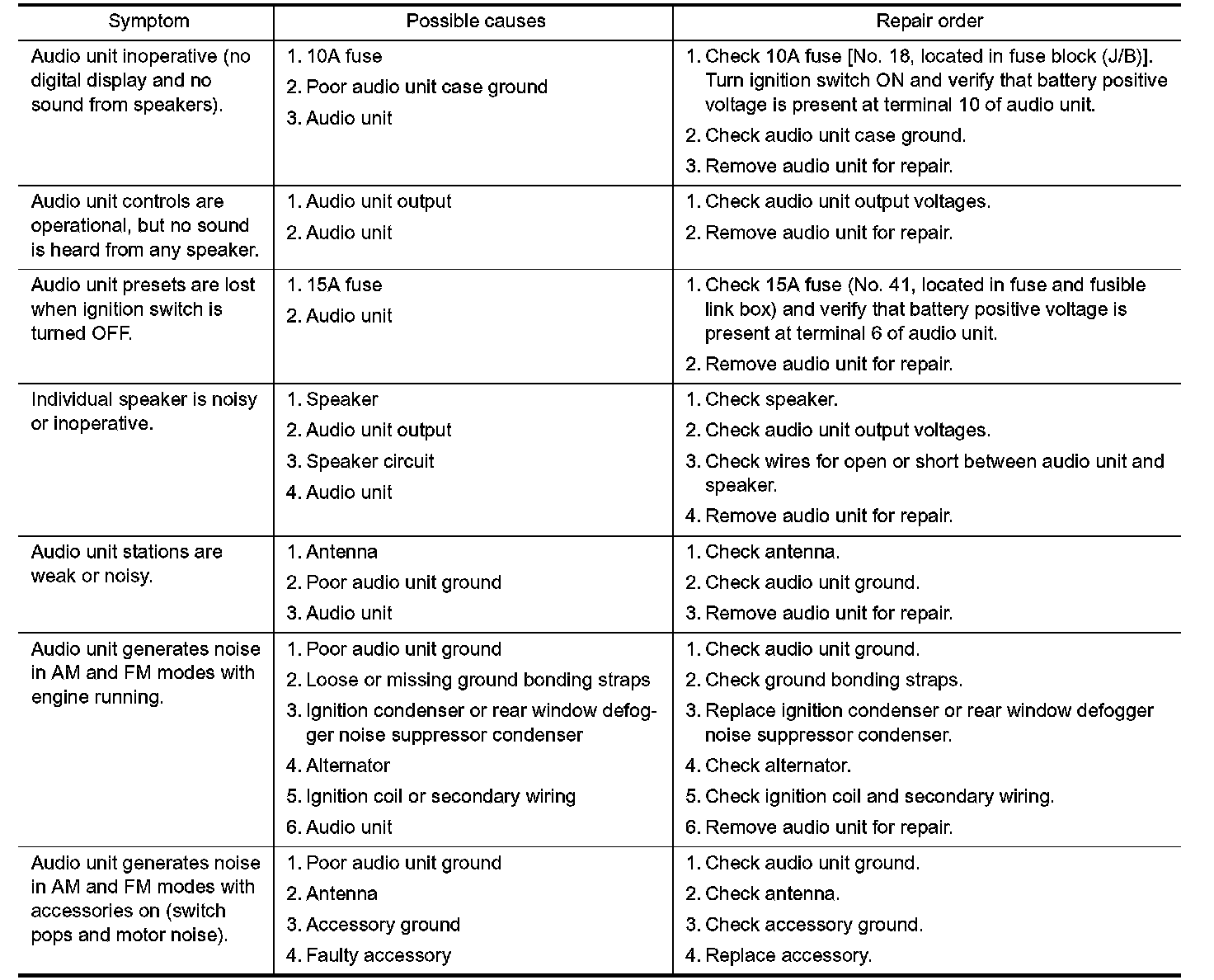

Audio Unit (Without Audio Amplifier):

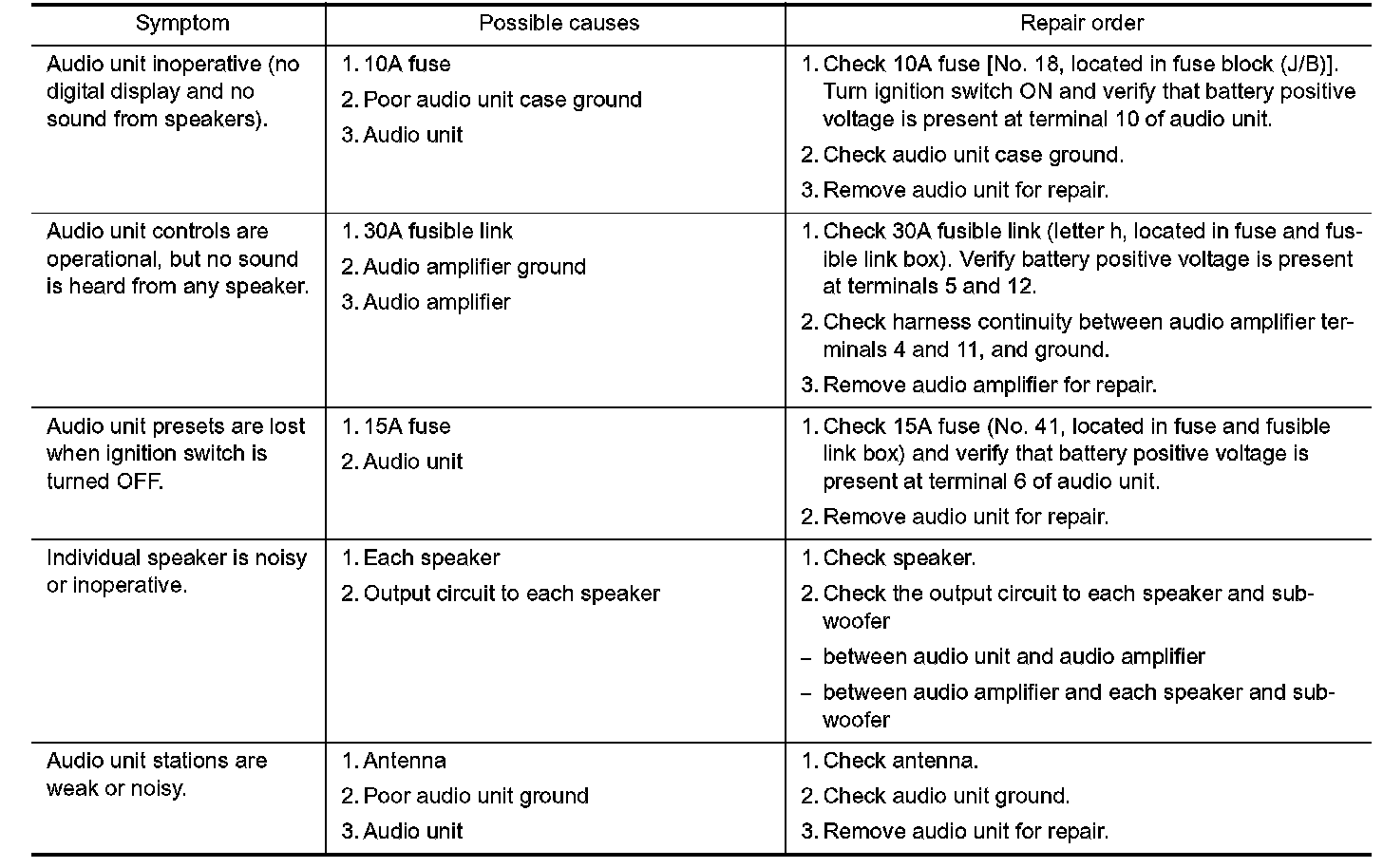

Audio Unit (With Audio Amplifier) Part 1:

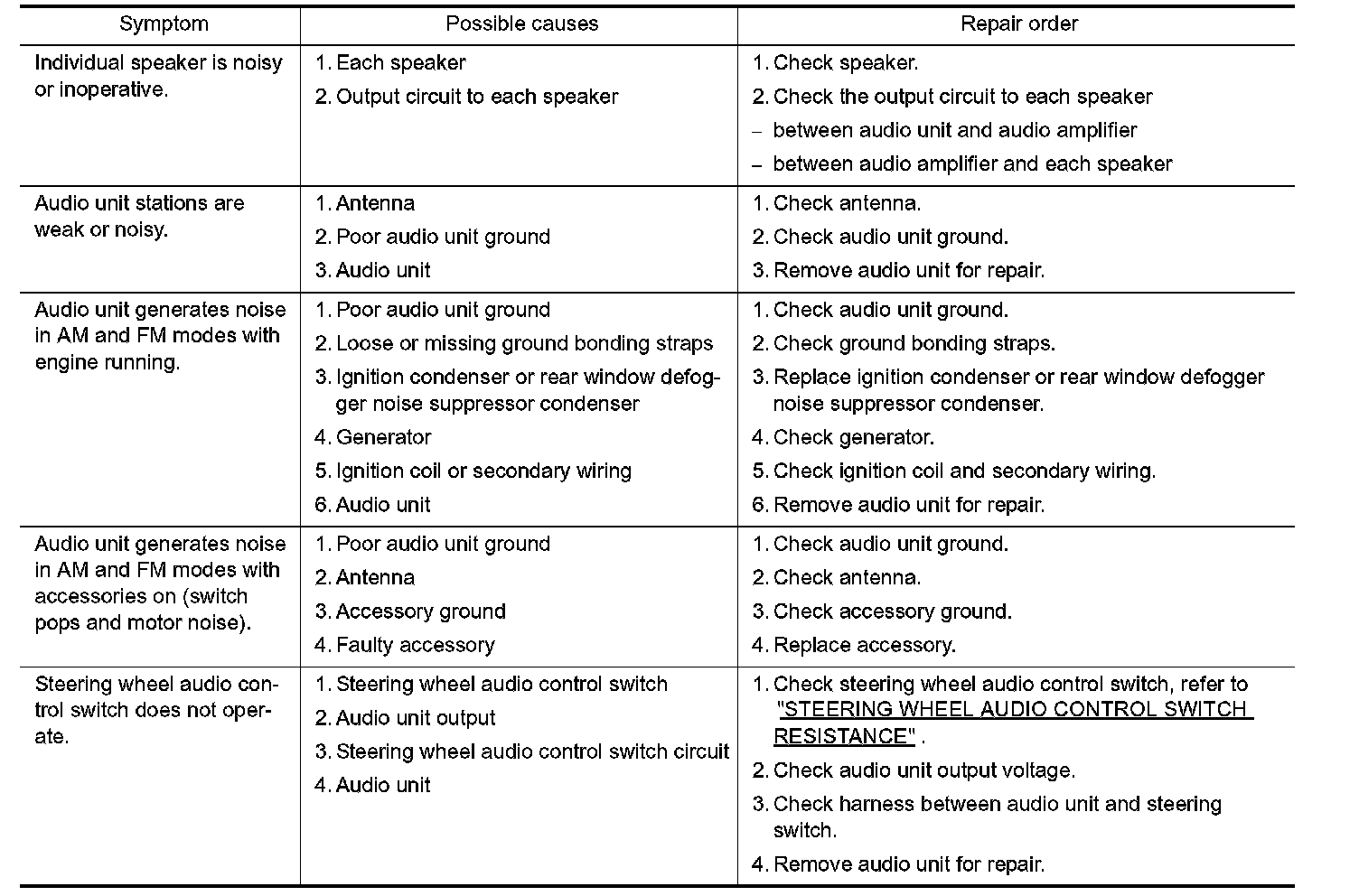

Audio Unit (With Audio Amplifier) Part 2:

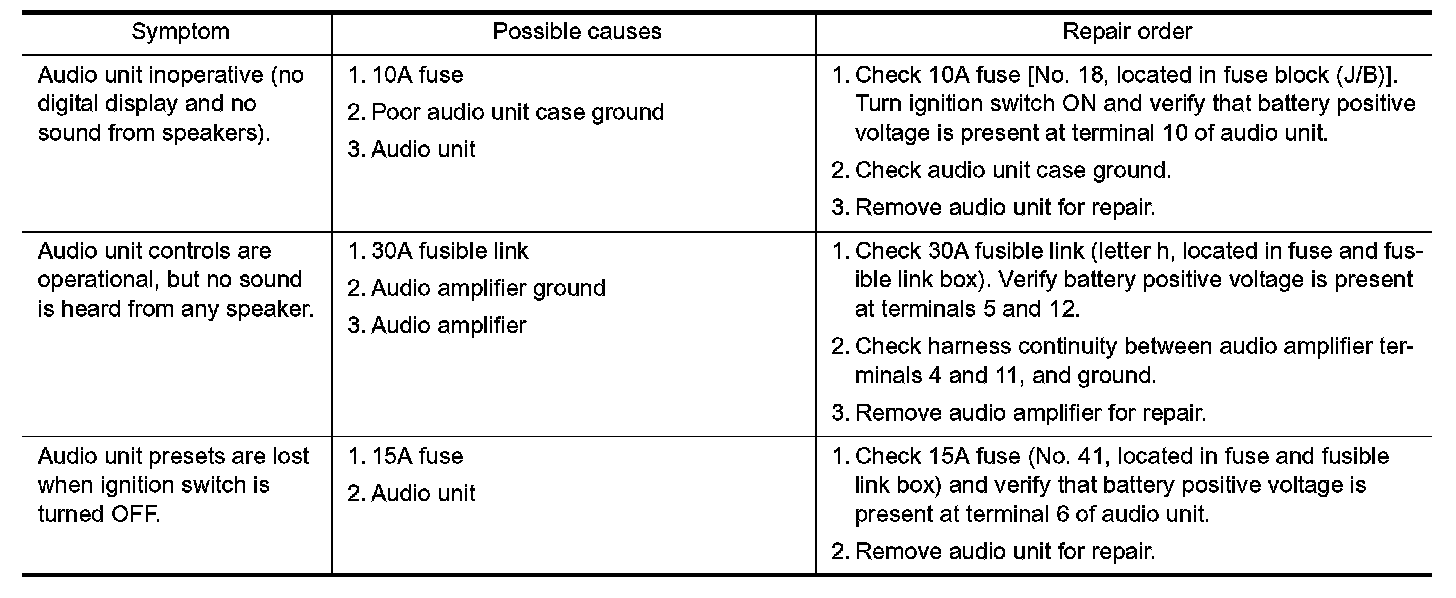

Audio Unit (with Audio Amplifier And Subwoofer) Part 1:

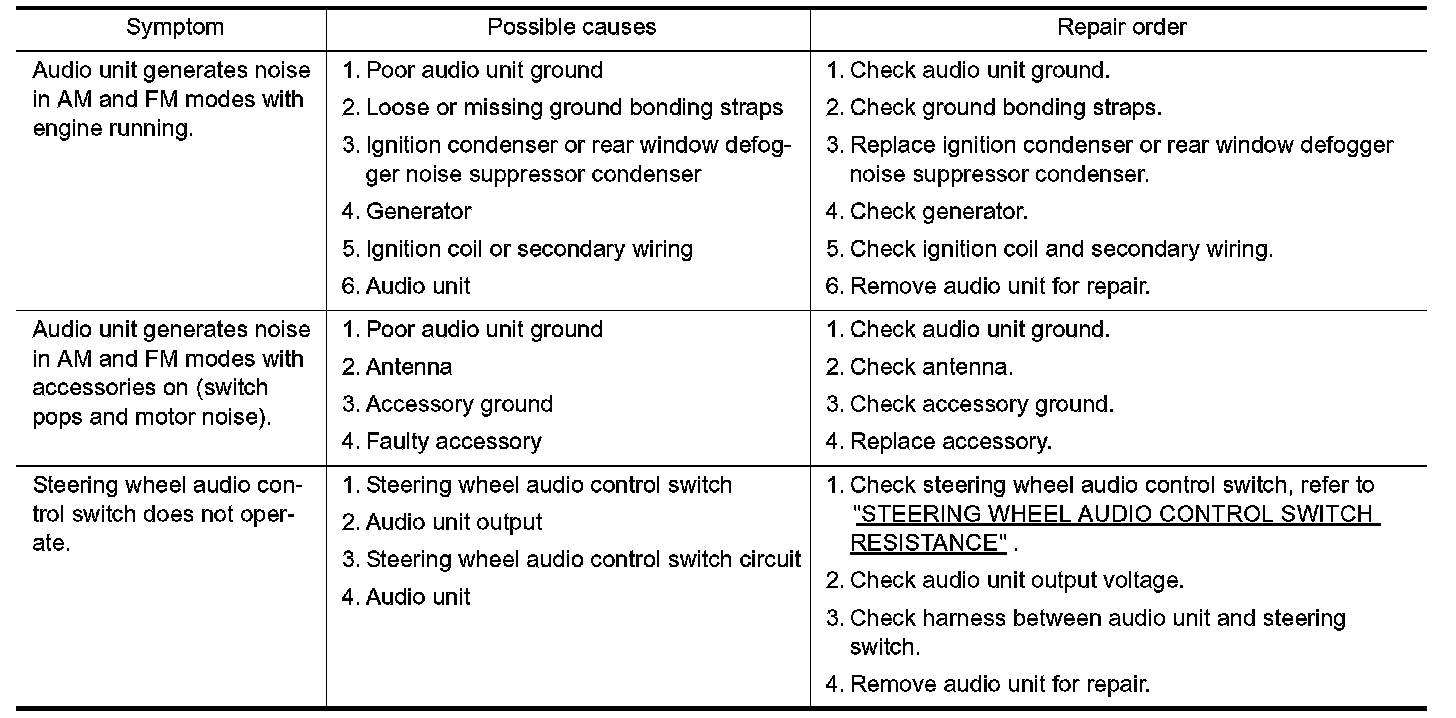

Audio Unit (with Audio Amplifier And Subwoofer) Part 2:
