Home >> Nissan-Datsun Truck >> 2003 >> Xterra 2WD V6-3.3L SC (VG33ER) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Component Tests >> Vehicle Security Headlamp Alarm Check

Vehicle Security Headlamp Alarm Check

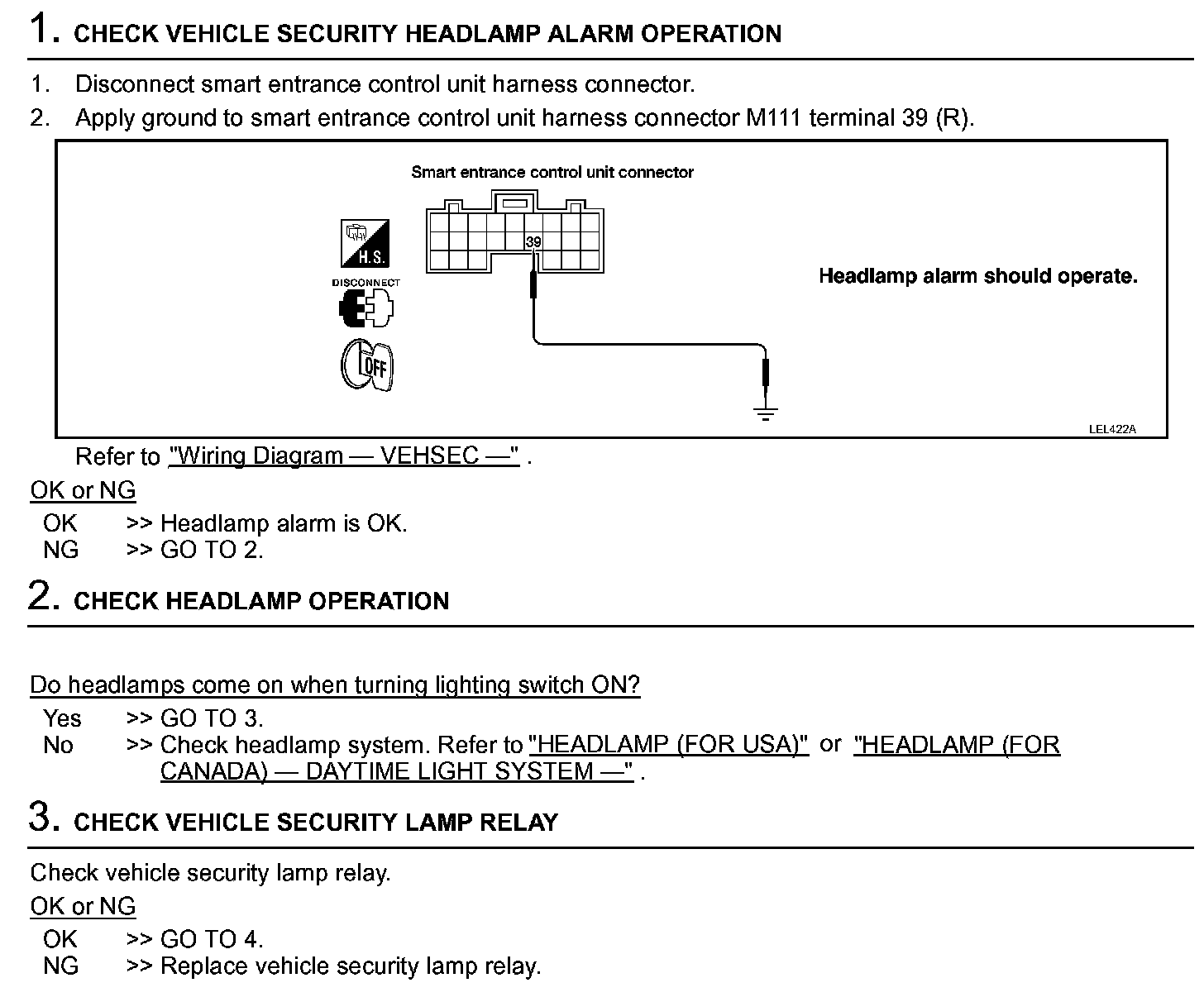

Diagnostic Procedure Step 1 - 3:

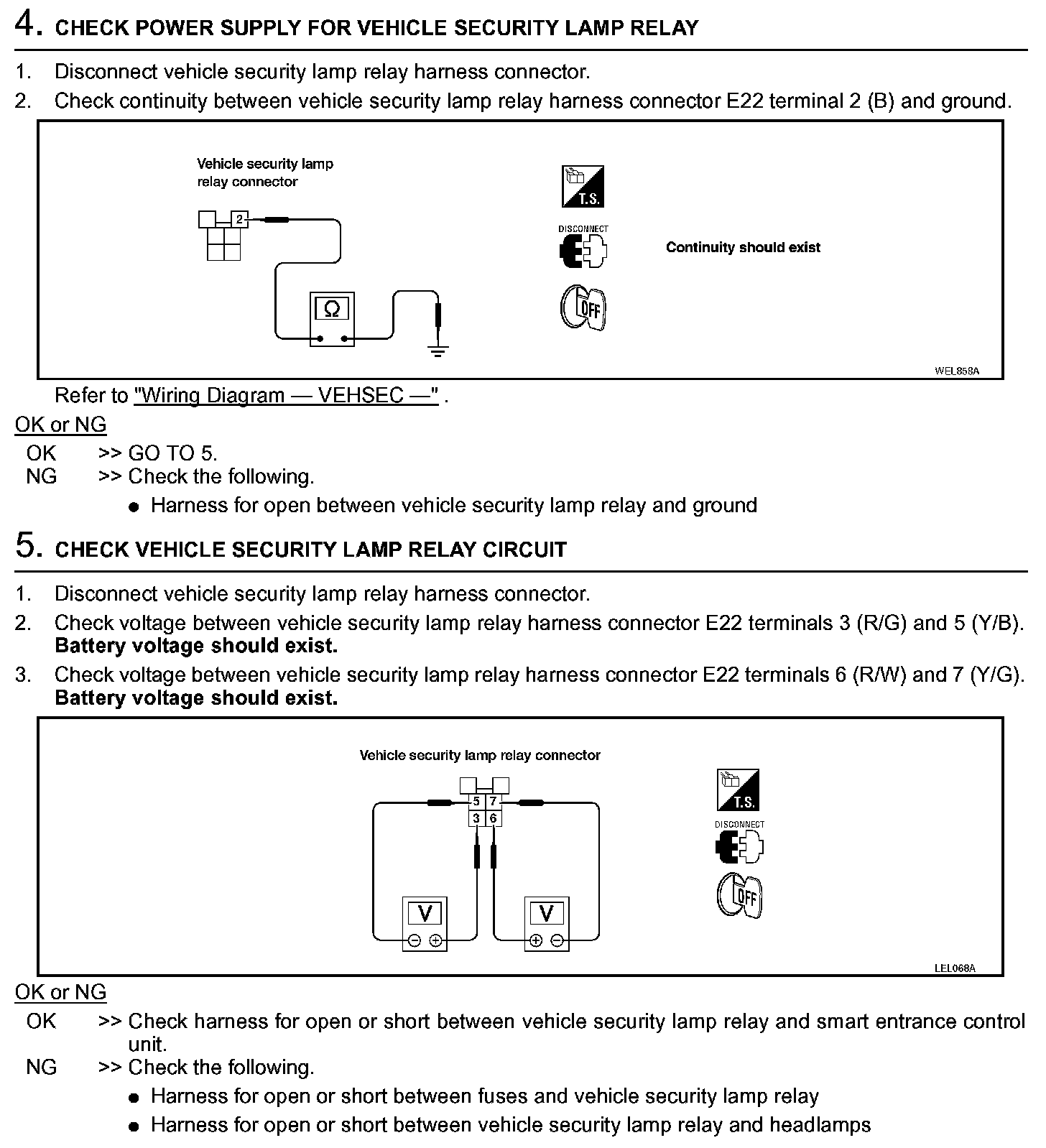

Diagnostic Procedure Step 4 - 5:
