Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Tools and Equipment >> R200A - Front Final Drive

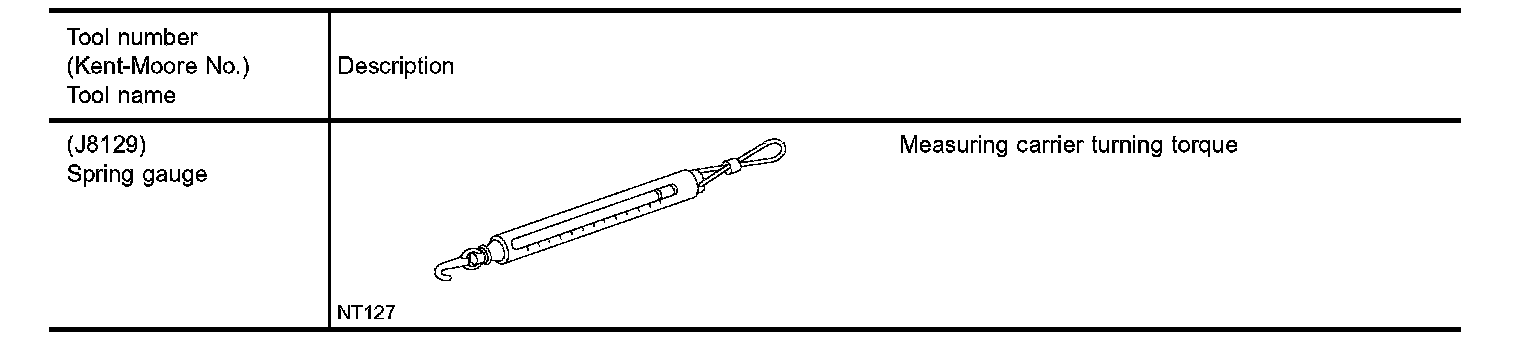

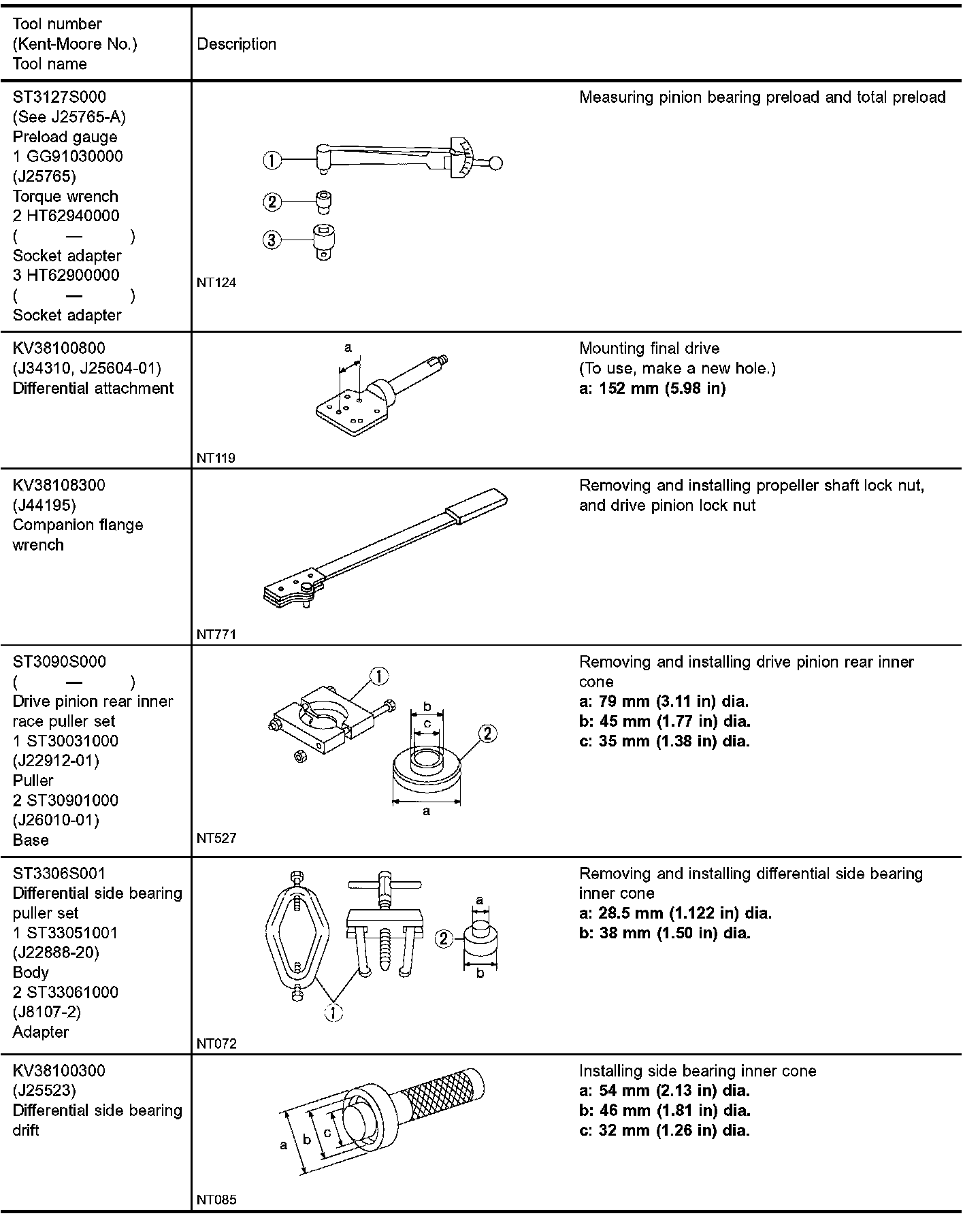

R200A - Front Final Drive

R200A - Front Final Drive:

R200A - Front Final Drive:

R200A - Front Final Drive:
