On-Vehicle Service

FRONT OIL SEAL REPLACEMENT (Rear final drive: Model H233B)
1. Remove propeller shaft.

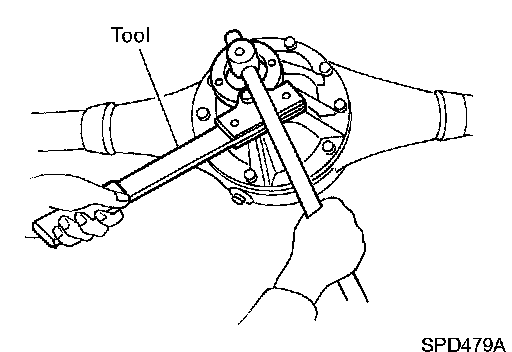

2. Loosen drive pinion nut.

Tool number: KV38108300 (J44195)

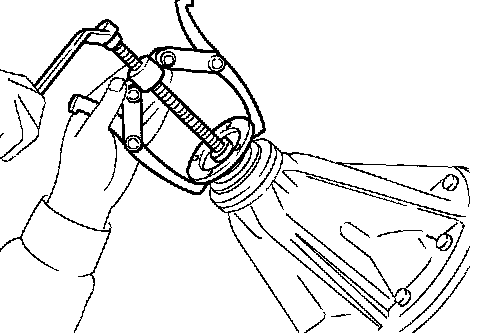

3. Remove companion flange.
4. Remove ABS Sensor and Sensor Rotor (2WD Models).

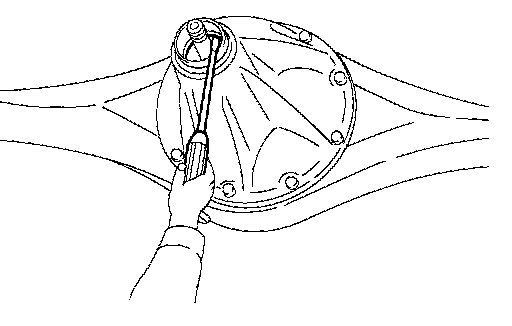

5. Remove front oil seal.

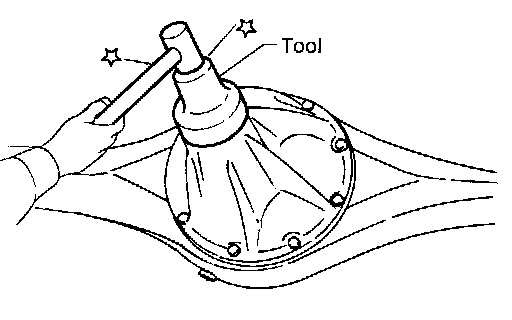

6. Apply multi-purpose grease to cavity at sealing lips of oil seal. Press front oil seal into carrier.

Tool number: KV38100500 (325273)

NOTE: Always install a new sensor rotor.

7. Install ABS Sensor and Sensor Rotor (2WD Models).
8. Install companion flange and drive pinion nut.
9. Install propeller shaft.
