Checking Differential Gear Oil

Check for oil leakage and oil level.

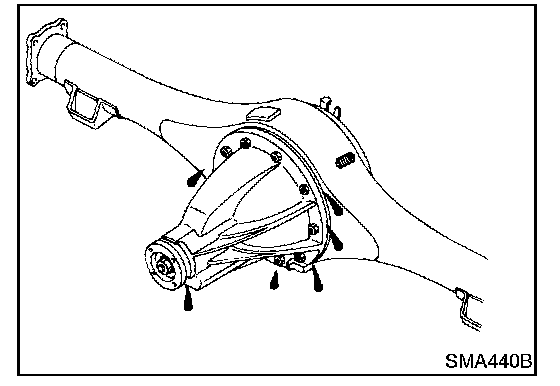

Filler plug:
Front - R200A
Tightening Torque: 59 - 98 N.m (6 - 10 kg-m, 43 - 72 ft-lb)

Rear - H233B
Tightening Torque: 59 - 98 N.m (6 - 10 kg-m, 43 - 72 ft-lb)

Rear - C200
Tightening Torque: 39 - 59 N.m (4 - 6 kg-m, 29 - 43 ft-lb)
