Nissan-Datsun Truck
>>
2002
>>
Xterra XE 4WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Service and Repair
>>
Overhaul
Overhaul
Overhaul / 1 Of 2:
Overhaul / 2 Of 2:

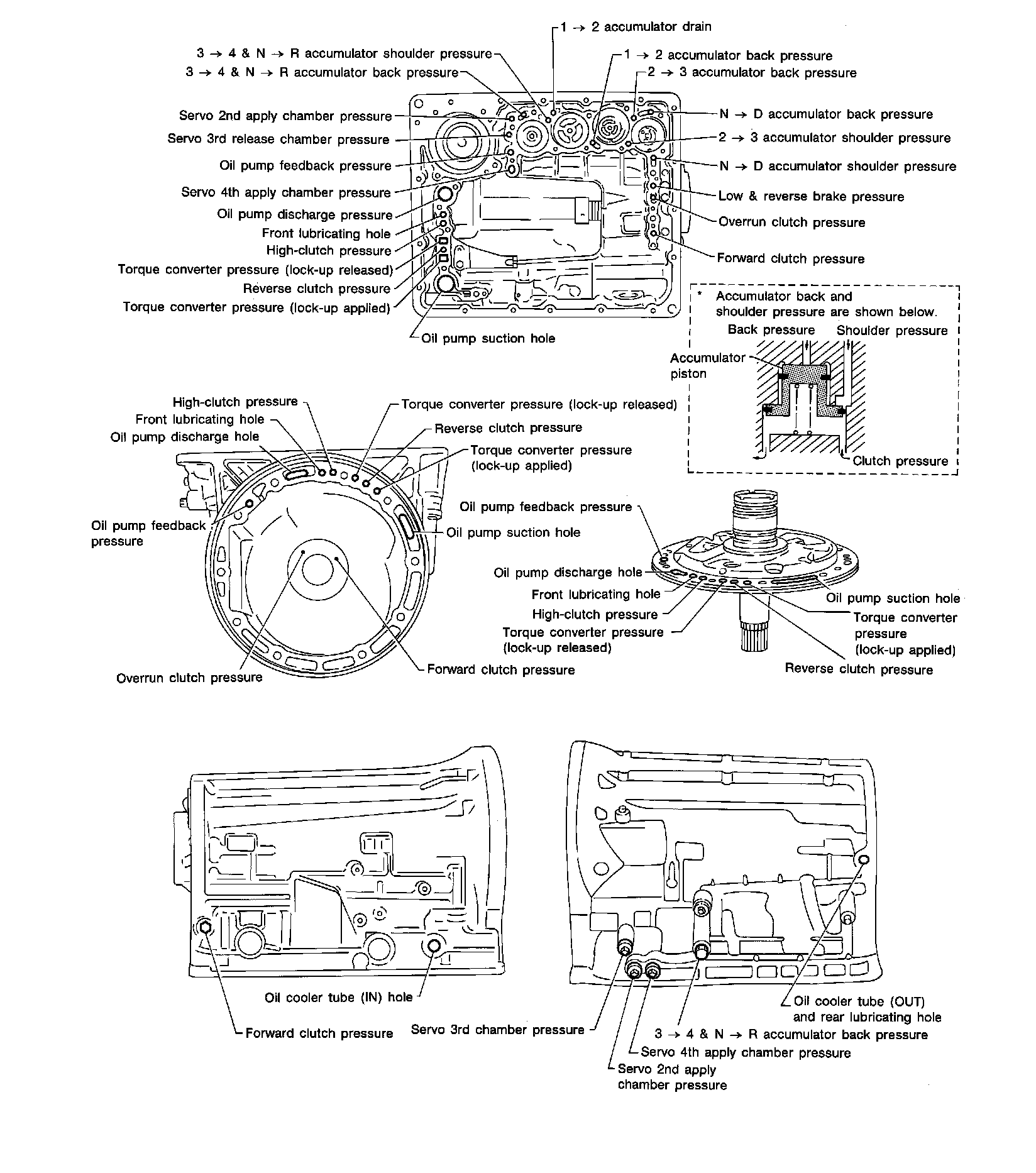

��ANOIL CHANNEL:

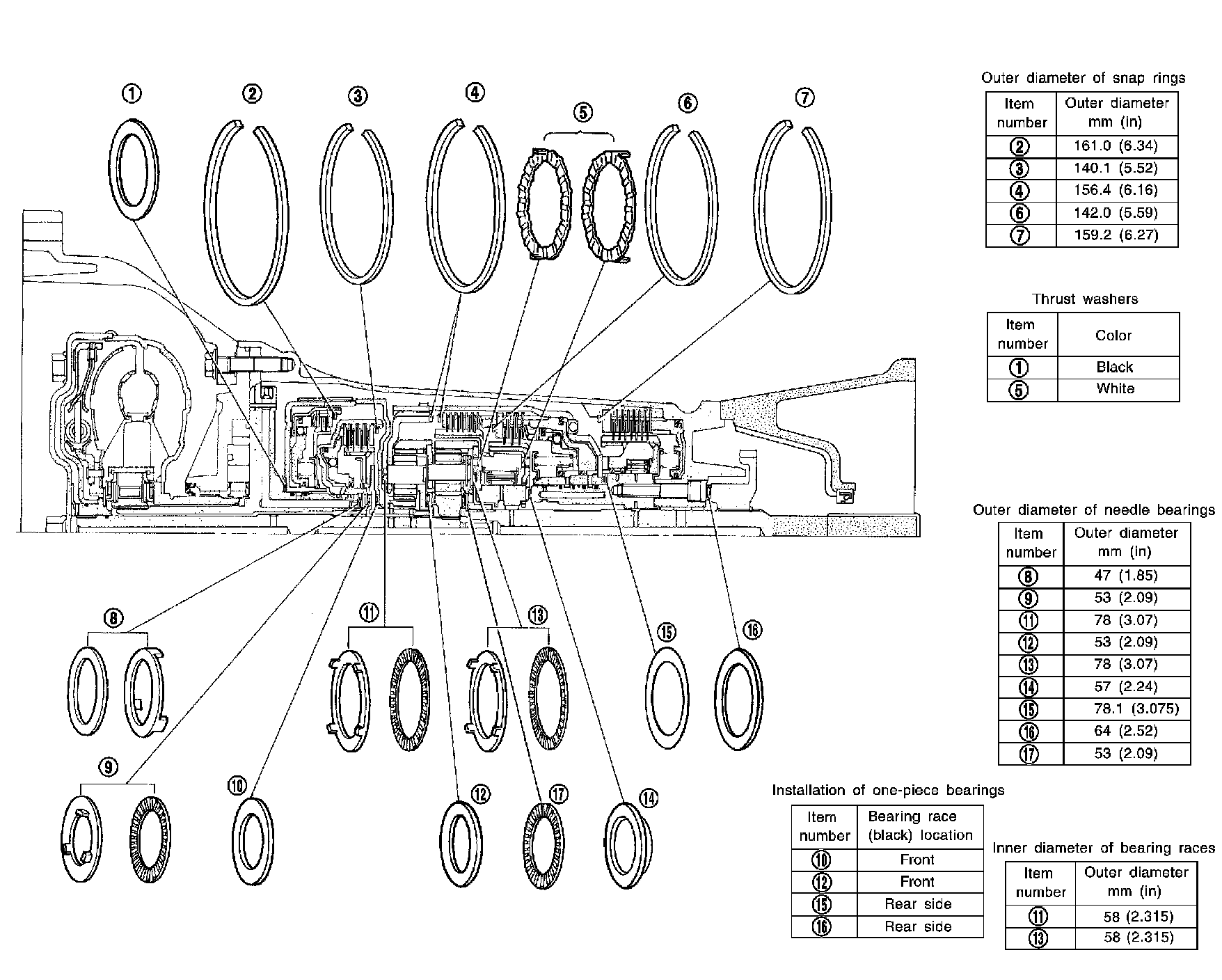

Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap Rings:
