Front Bumper: Service and Repair

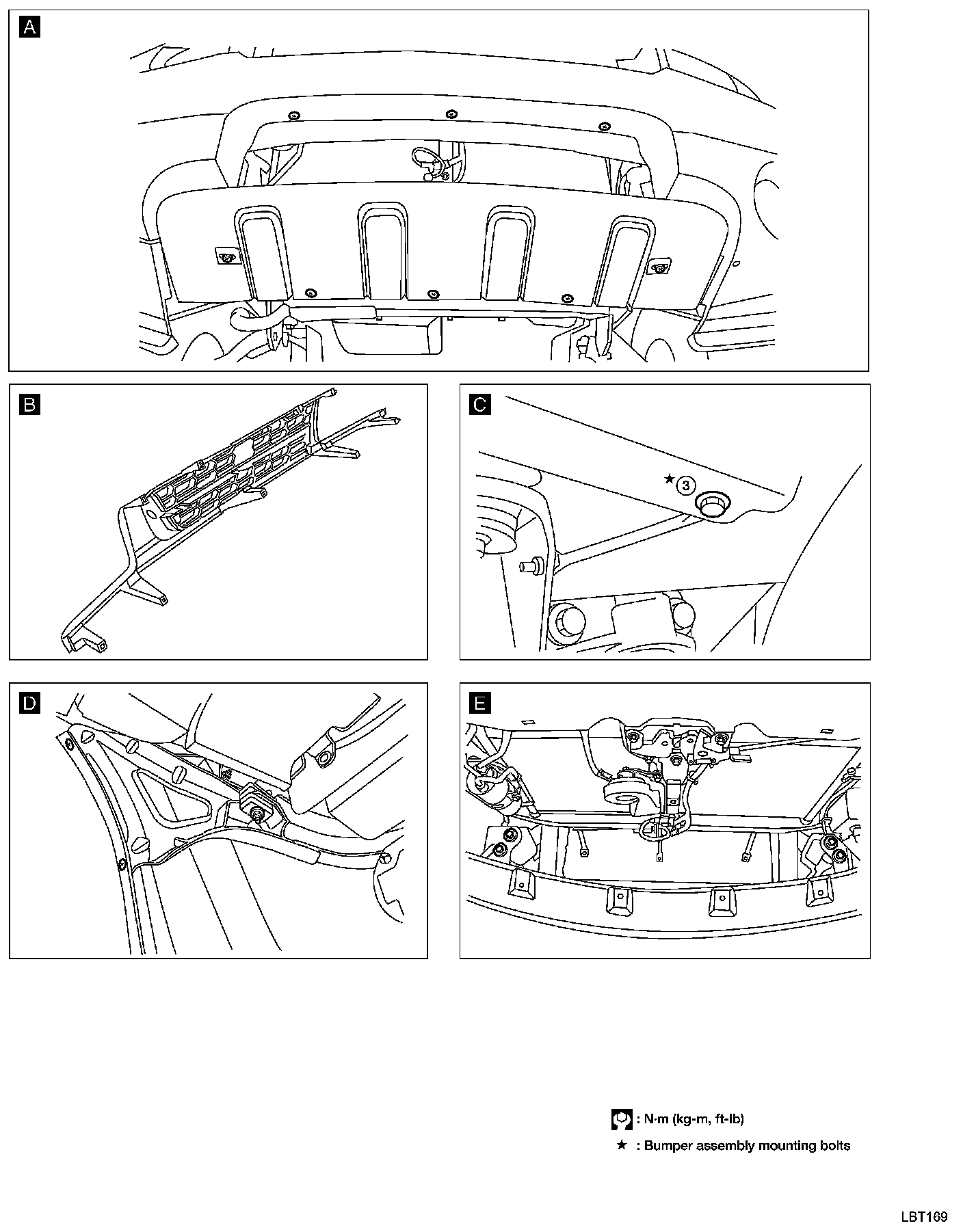

Part 1:

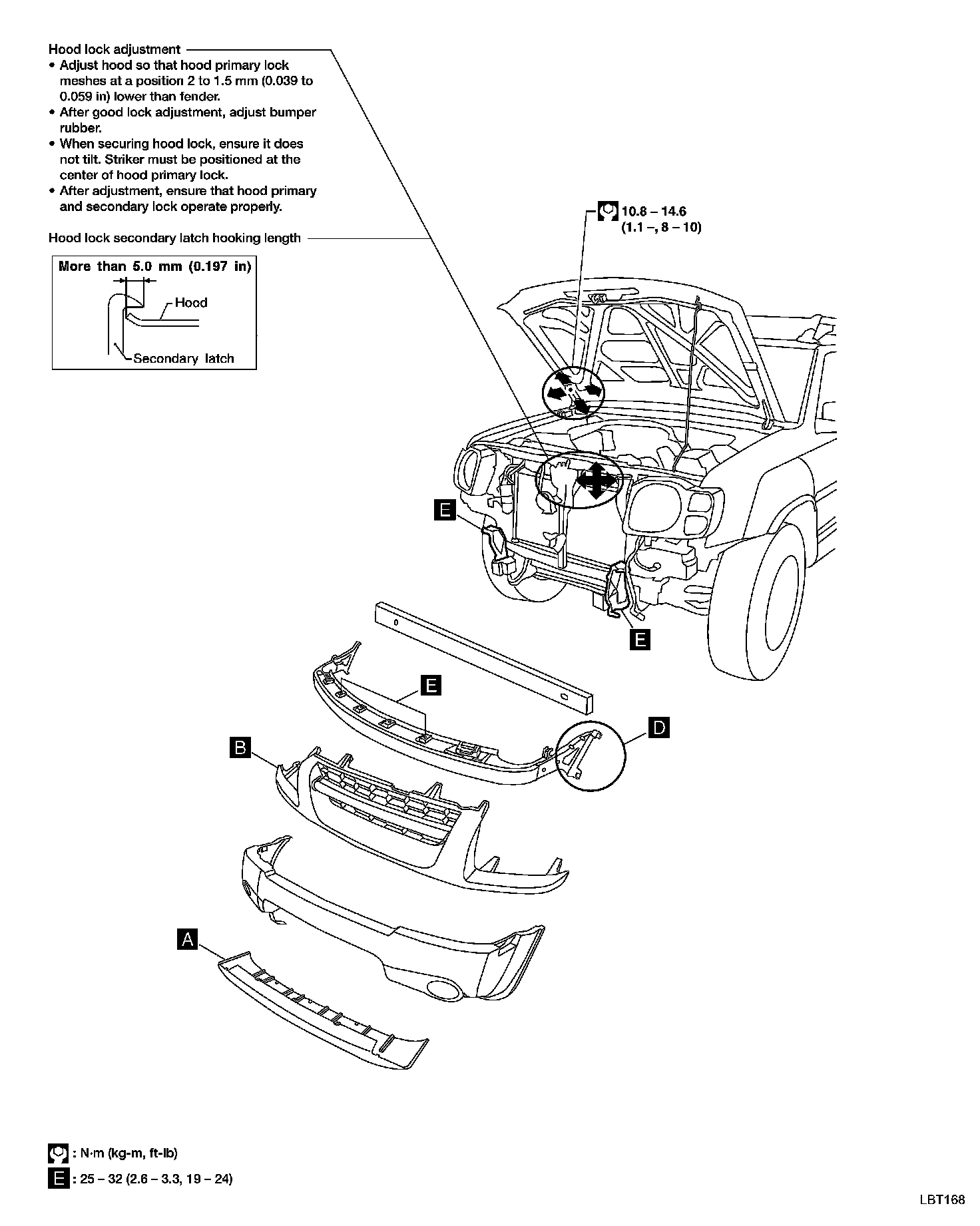

Part 2:

FRONT BUMPER ASSEMBLY
1. Remove clips securing front grille and remove the front grille. B
2. Remove the side marker lamps.
3. Remove bolts securing left and right bumper stays. C
4. Remove the lower grille opening trim. A
5. Remove bolts securing left and right bumper side brackets. D
6. Remove the front fascia.
7. Remove bolts securing left and right bumper from bumper brackets. E
8. Remove bumper assembly.
9. Remove the frame crossmember.
