ABS Actuator Solenoid Valve or Solenoid Valve Relay

ABS Actuator Solenoid Valve or Solenoid Valve Relay
Malfunction code No. 71

DIAGNOSTIC PROCEDURE

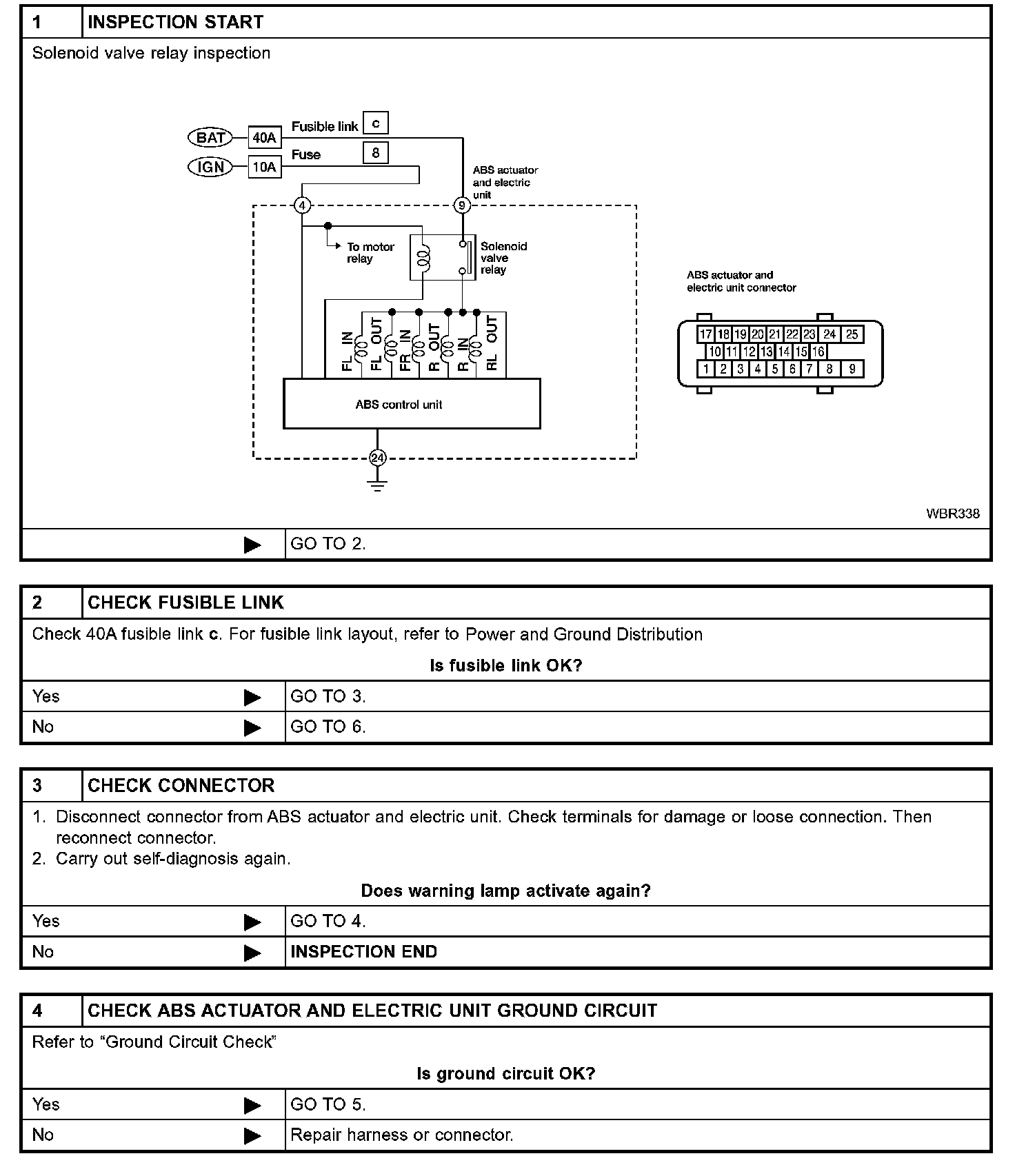

Procedure 1 - 4

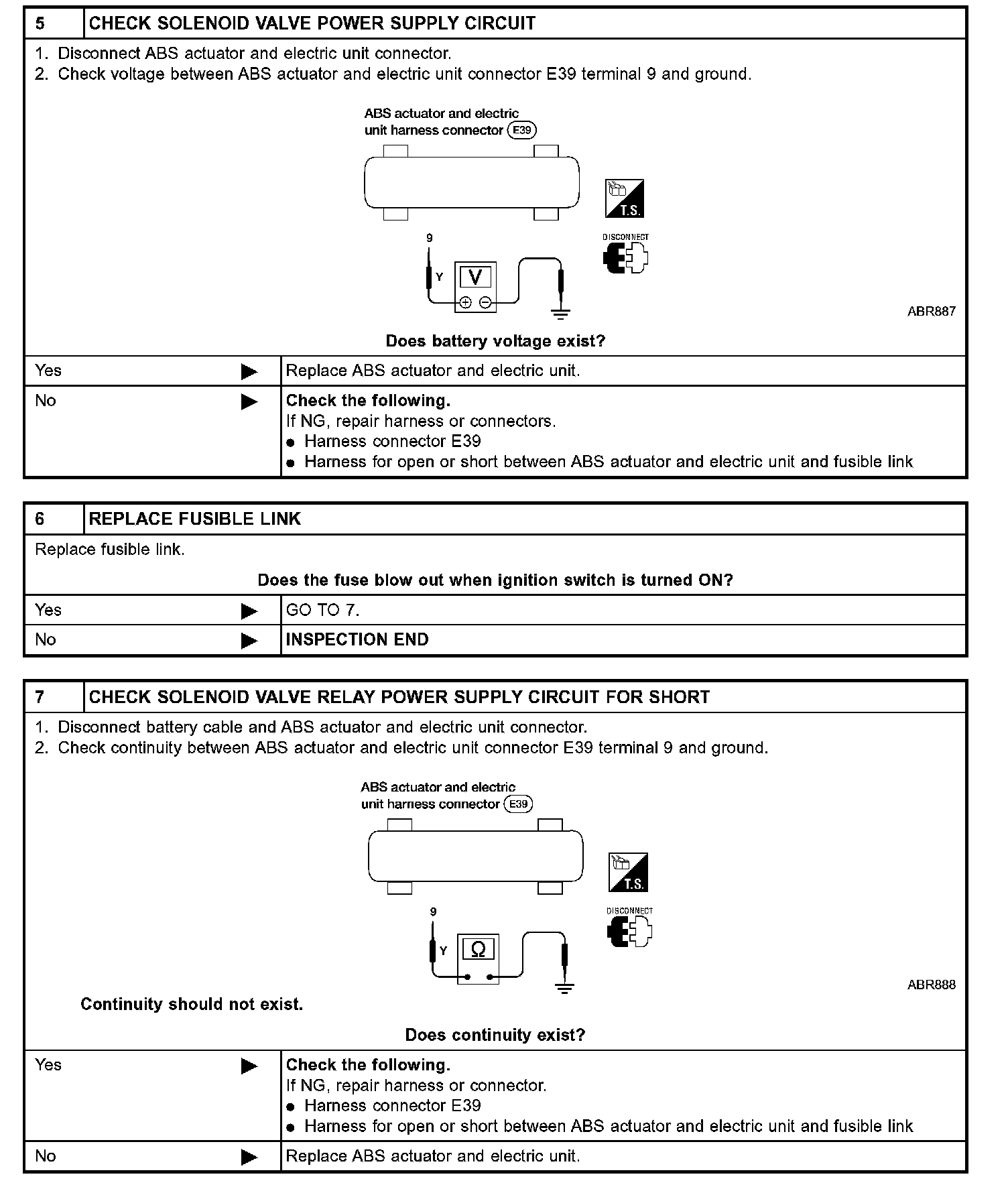

Procedure 5 - 7
