Shift Control Components

Shift Control Components / ASSEMBLY

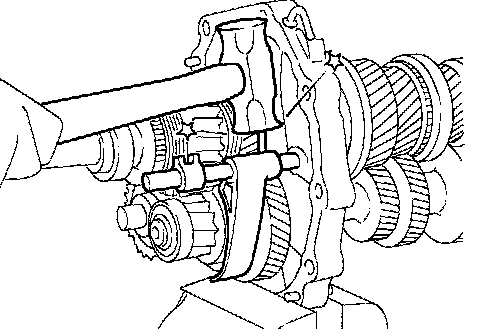

1. Install OD fork rod and OD shift fork. Then install retaining pin into OD shift fork.
2. Install 1st and 2nd, 3rd and 4th and reverse shift fork onto coupling sleeve.

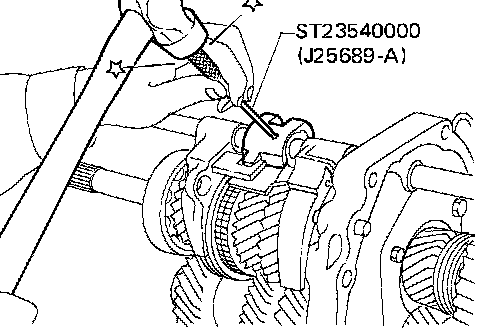

3. Install striking rod into hole of shift forks, striking lever and interlock and then install retaining pin into striking lever.
Make sure that striking rod moves smoothly.
