ASCD Brake Switch (Shift Lock Brake Switch)









ASCD BRAKE SWITCH (SHIFT LOCK BRAKE SWITCH)

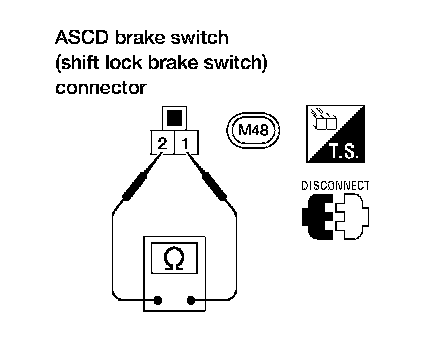

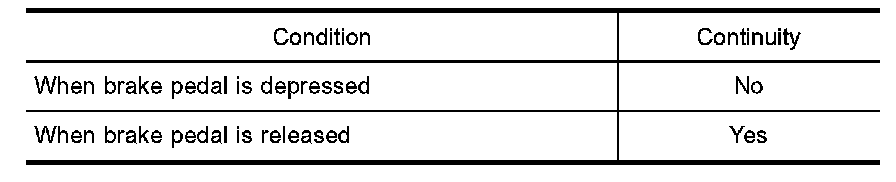

Check continuity between ASCD brake switch (shift lock brake switch) harness connector terminals 1 and 2.







Check ASCD brake switch (shift lock brake switch) after adjusting brake pedal.
