Assembly

Band Servo Piston Assembly
ASSEMBLY

1. Install O-rings onto servo piston retainer.
- Apply ATF to O-rings.
- Pay attention to position of each O-ring.

2. Install servo cushion spring retainer onto band servo piston.

3. Install E-ring onto servo cushion spring retainer.

4. Install D-rings onto band servo piston.
Apply ATF to D-rings.

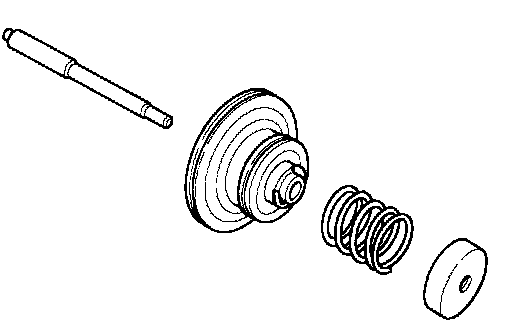

5. Install servo piston spring retainer, return spring C and piston stem onto band servo piston.

6. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

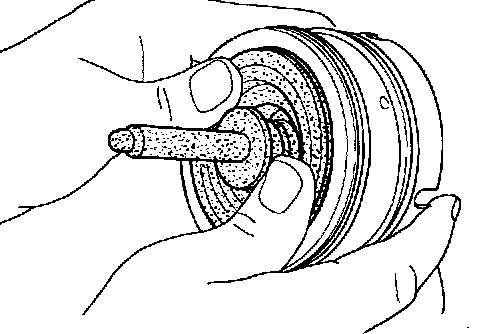

7. Install band servo piston assembly onto servo piston retainer by pushing it inward.

8. Install D-ring on OD band servo piston.
Apply ATF to D-ring.

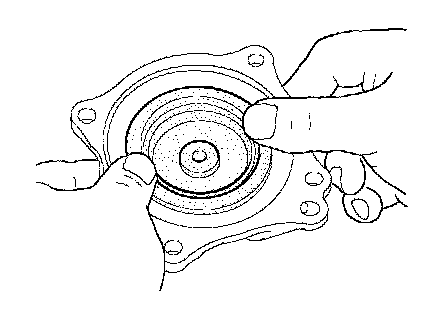

9. Install OD band servo piston onto servo piston retainer by pushing it inward.
