Nissan-Datsun Truck
>>
2002
>>
Xterra XE 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>
Overall A/T System
Overall A/T System

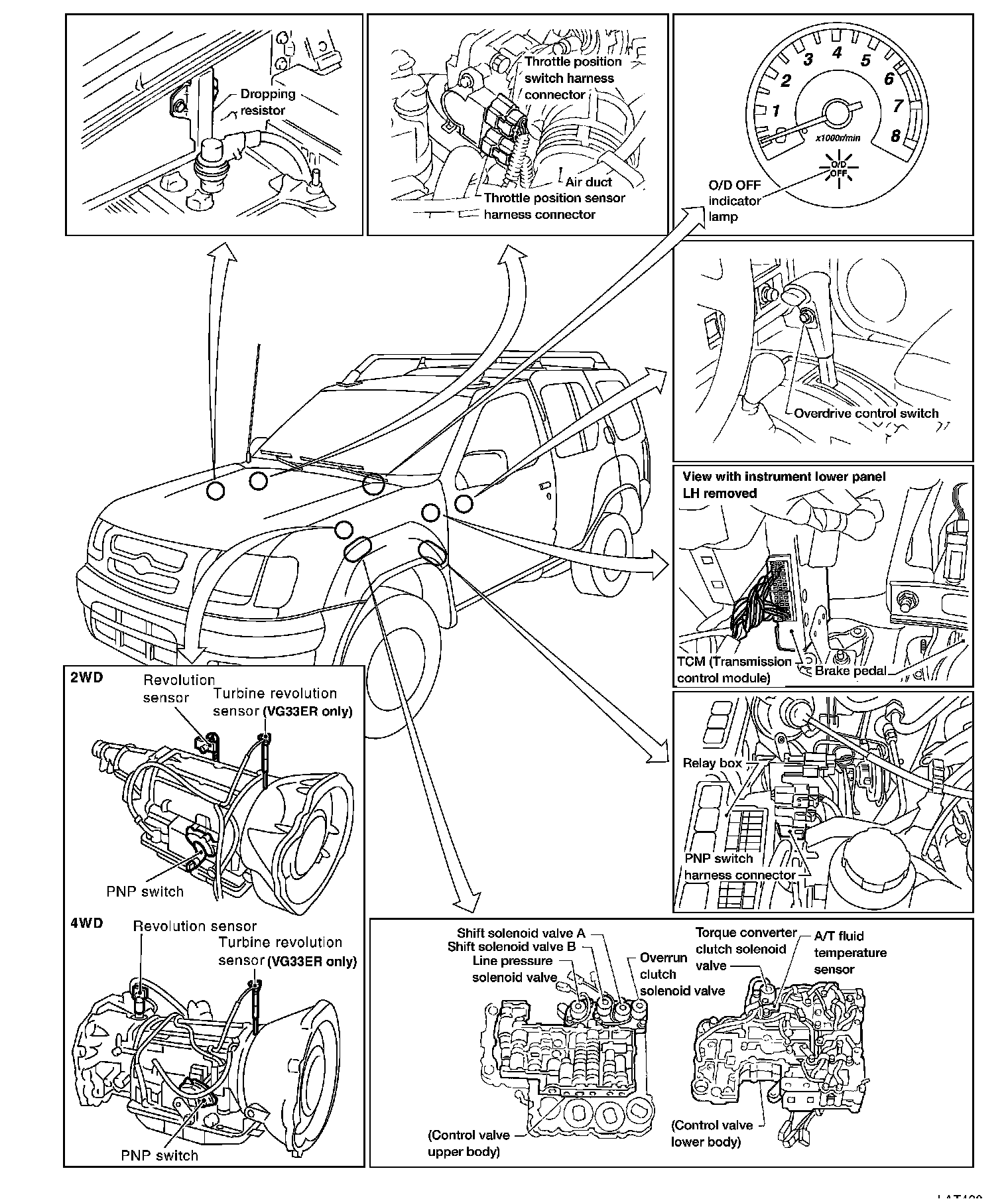

A/T Electrical Parts Location:
