Grounding Point: Locations

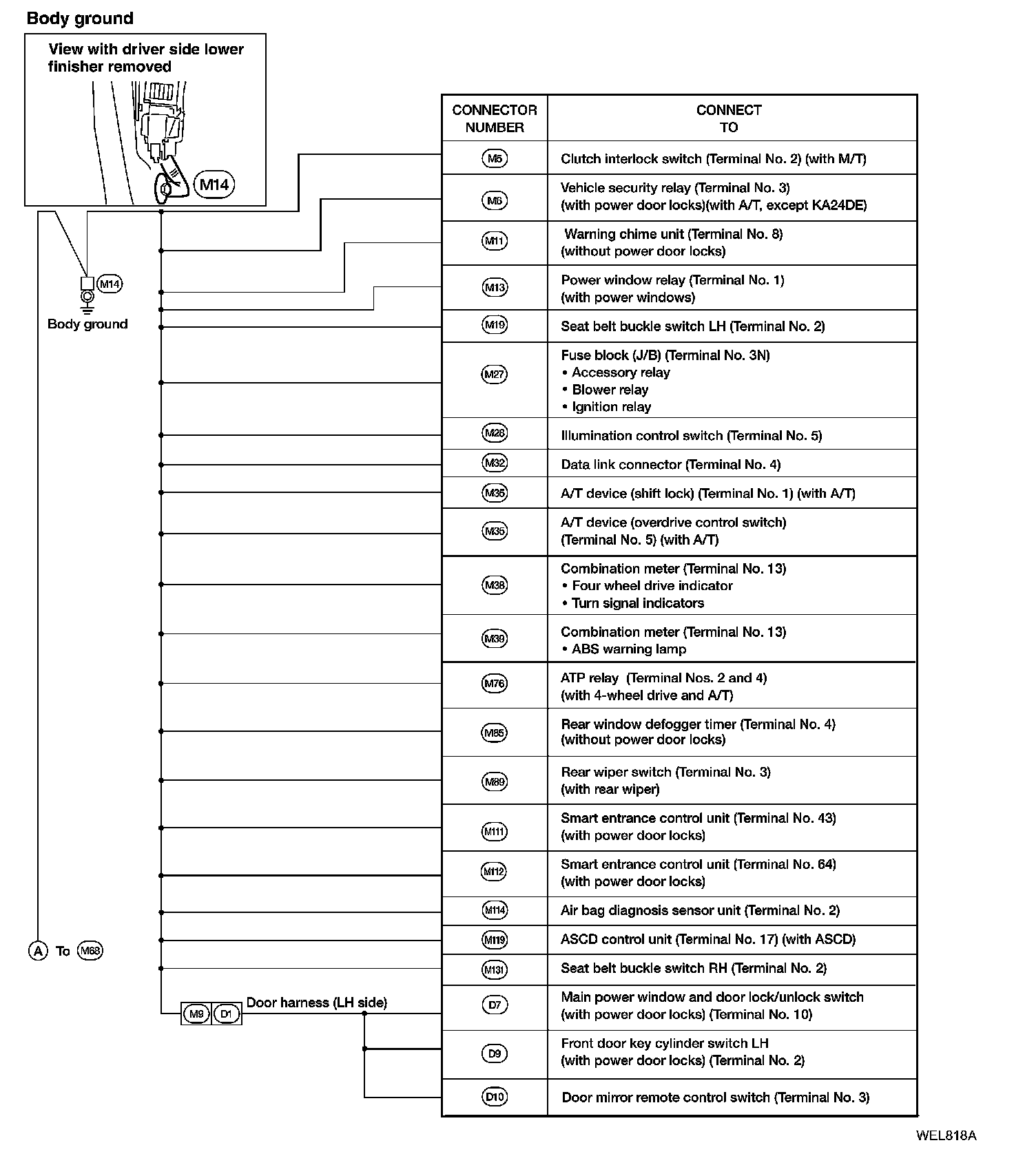

Main Harness Part 1:

Main Harness Part 2:

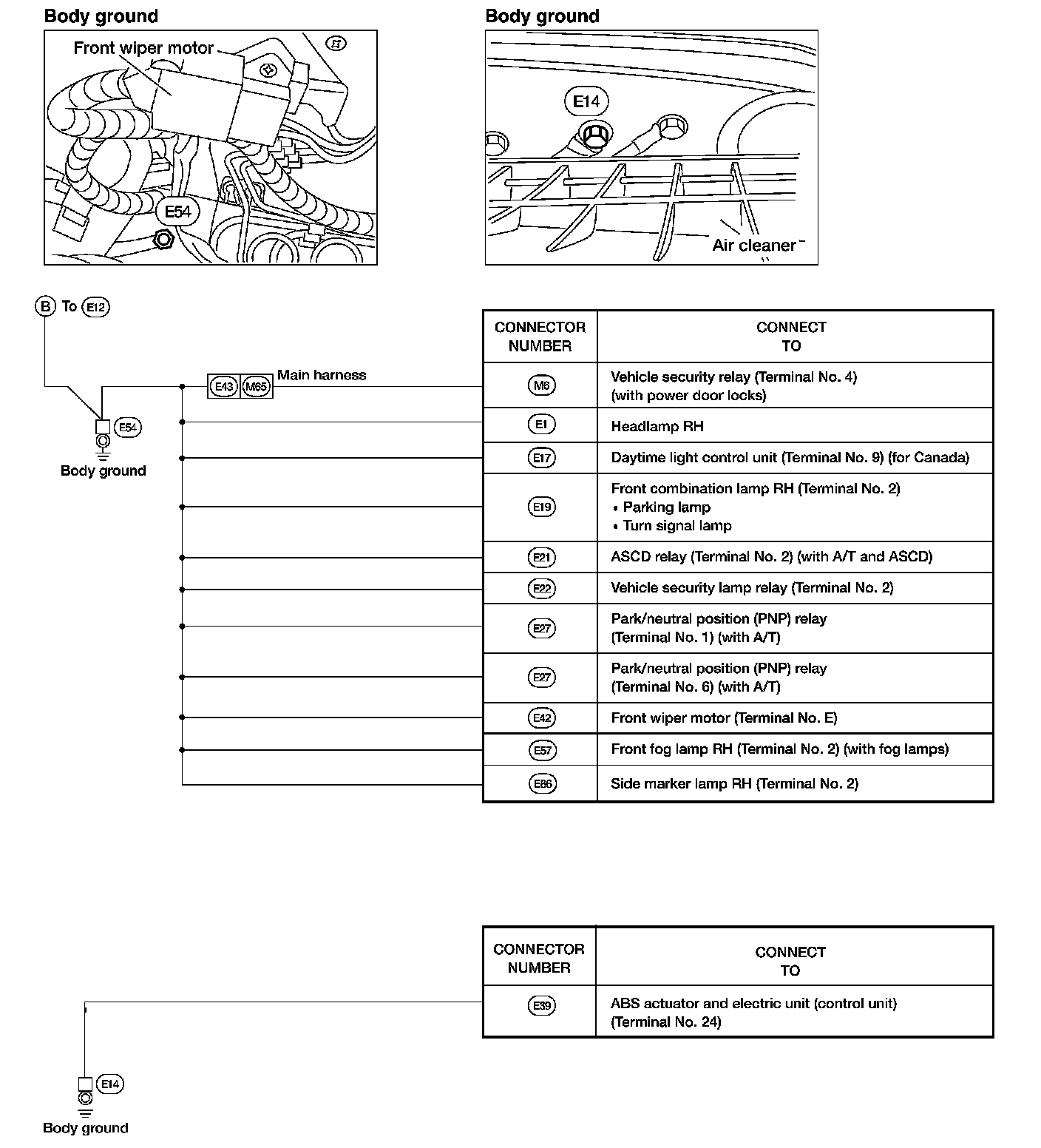

Engine Room Harness Part 1:

Engine Room Harness Part 2:

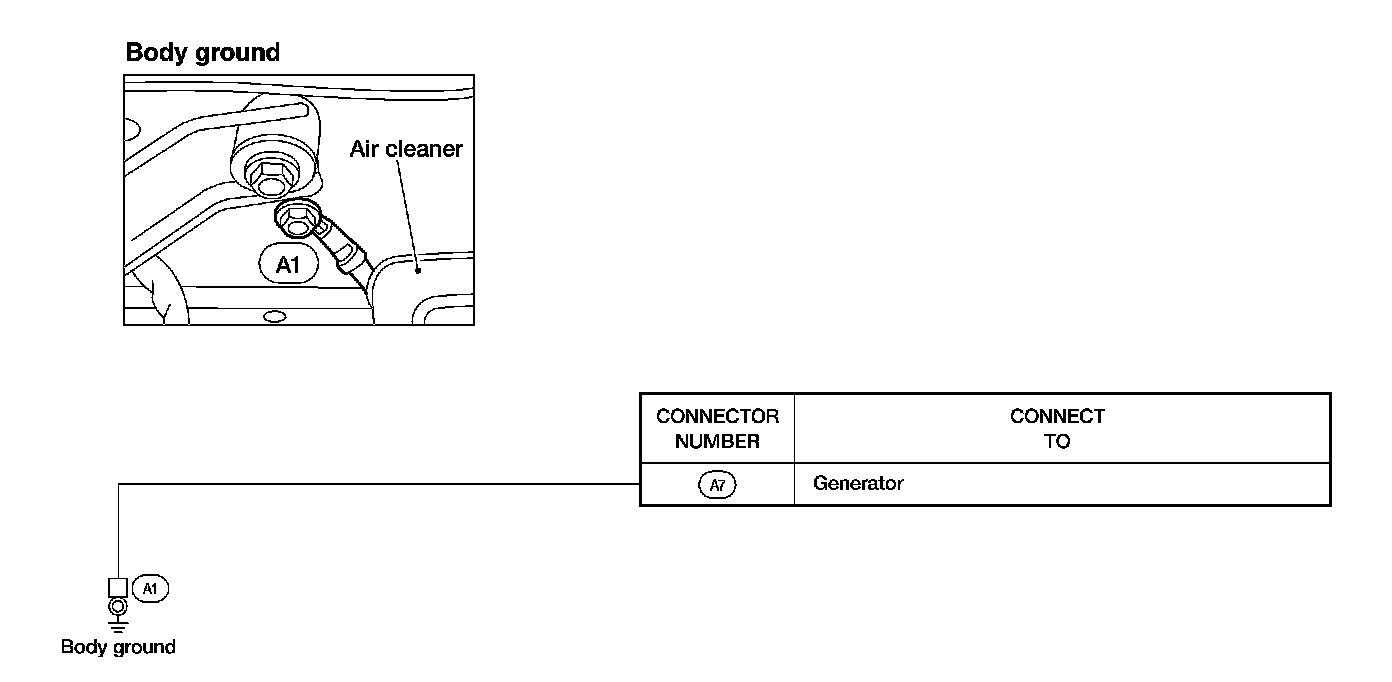

Generator Harness:

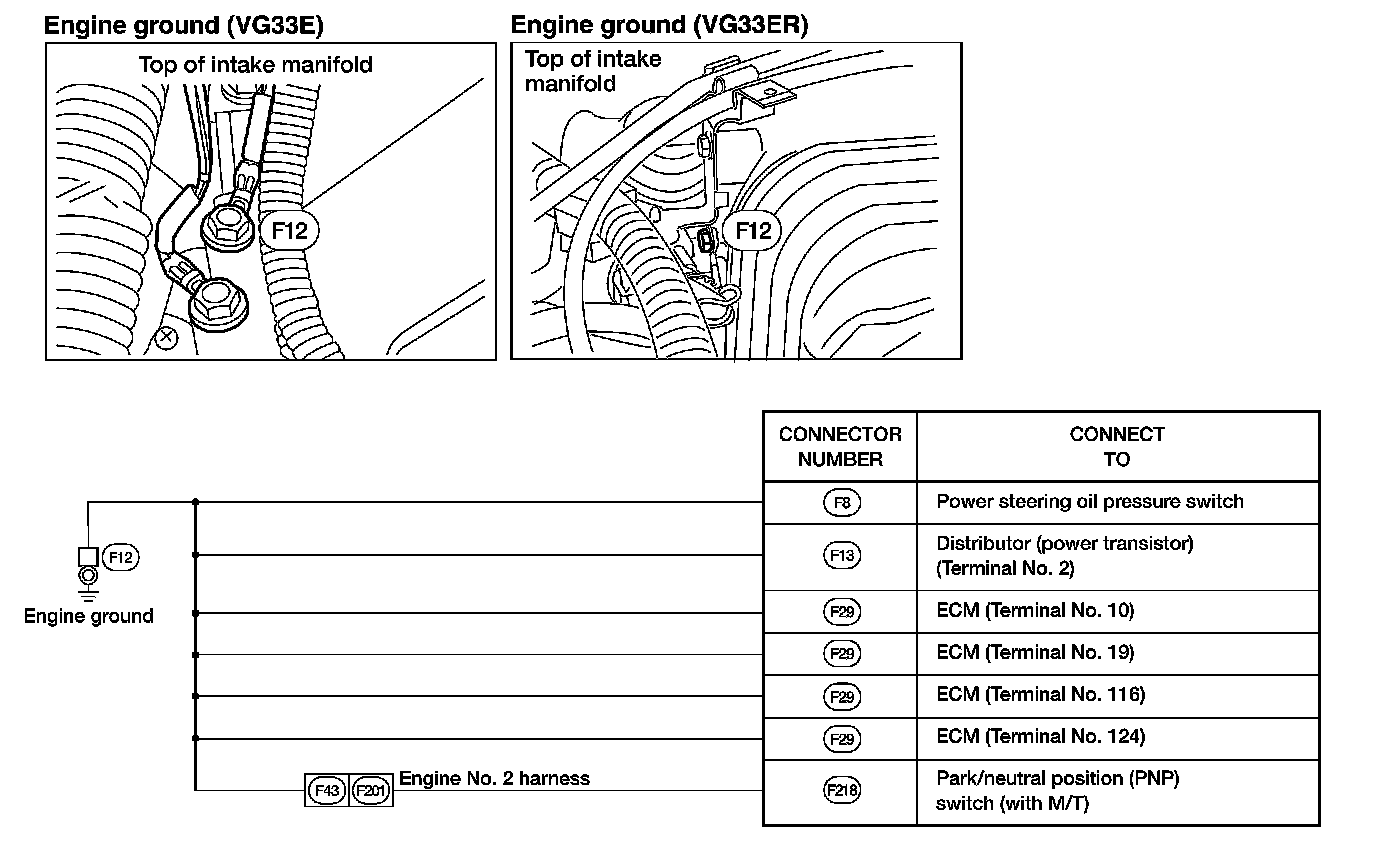

Engine Control Harness Part 1:

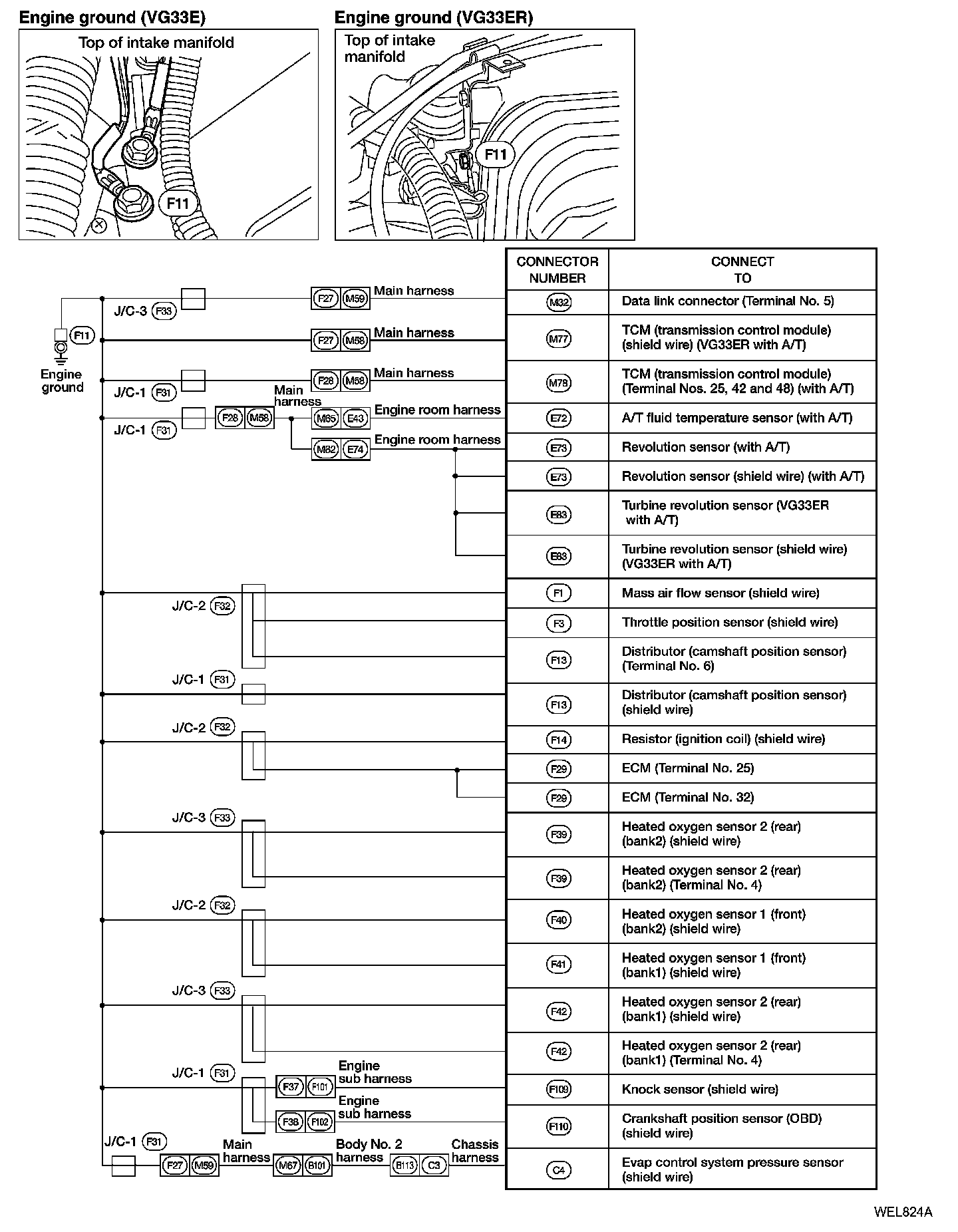

Engine Control Harness Part 2:

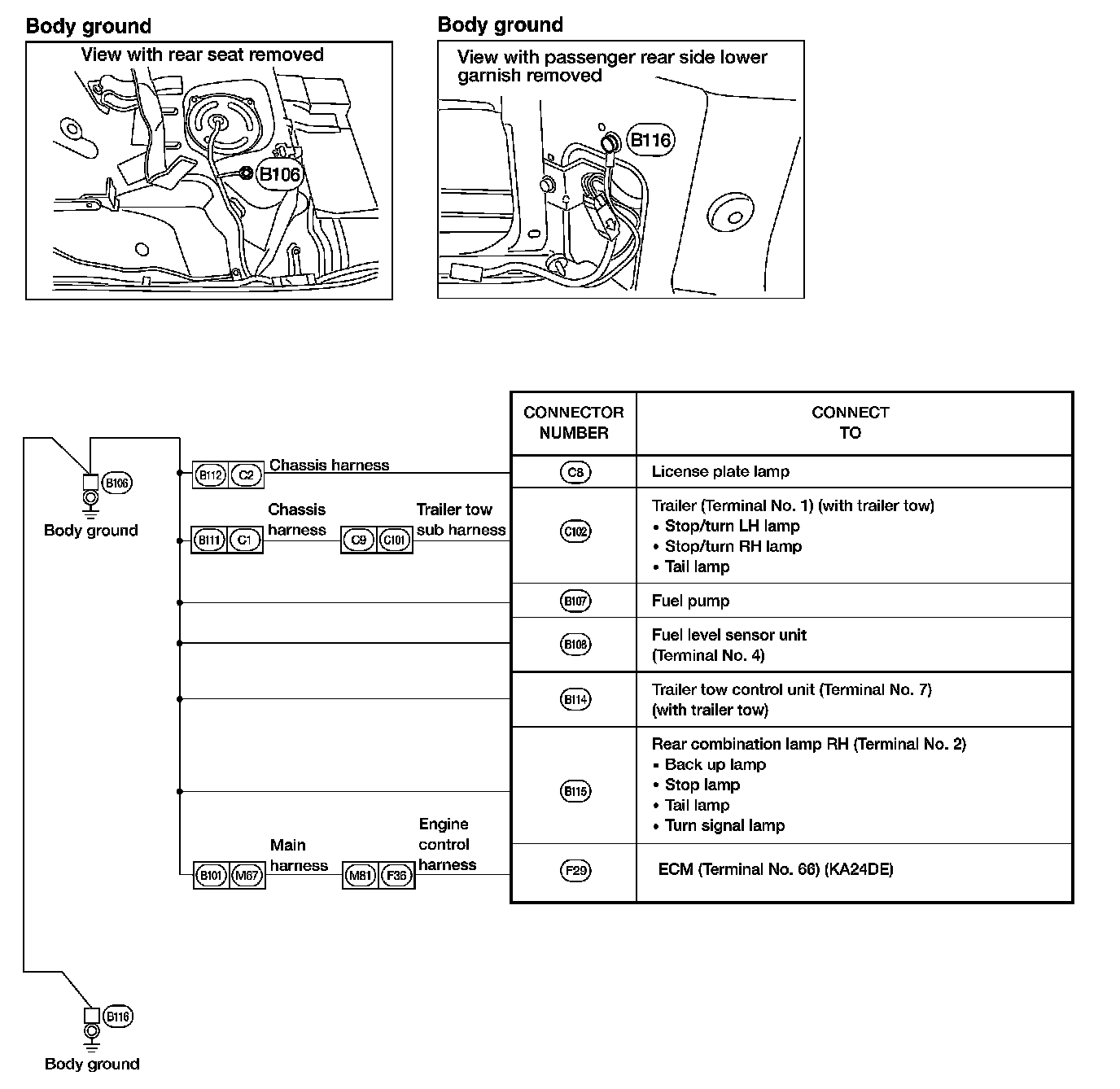

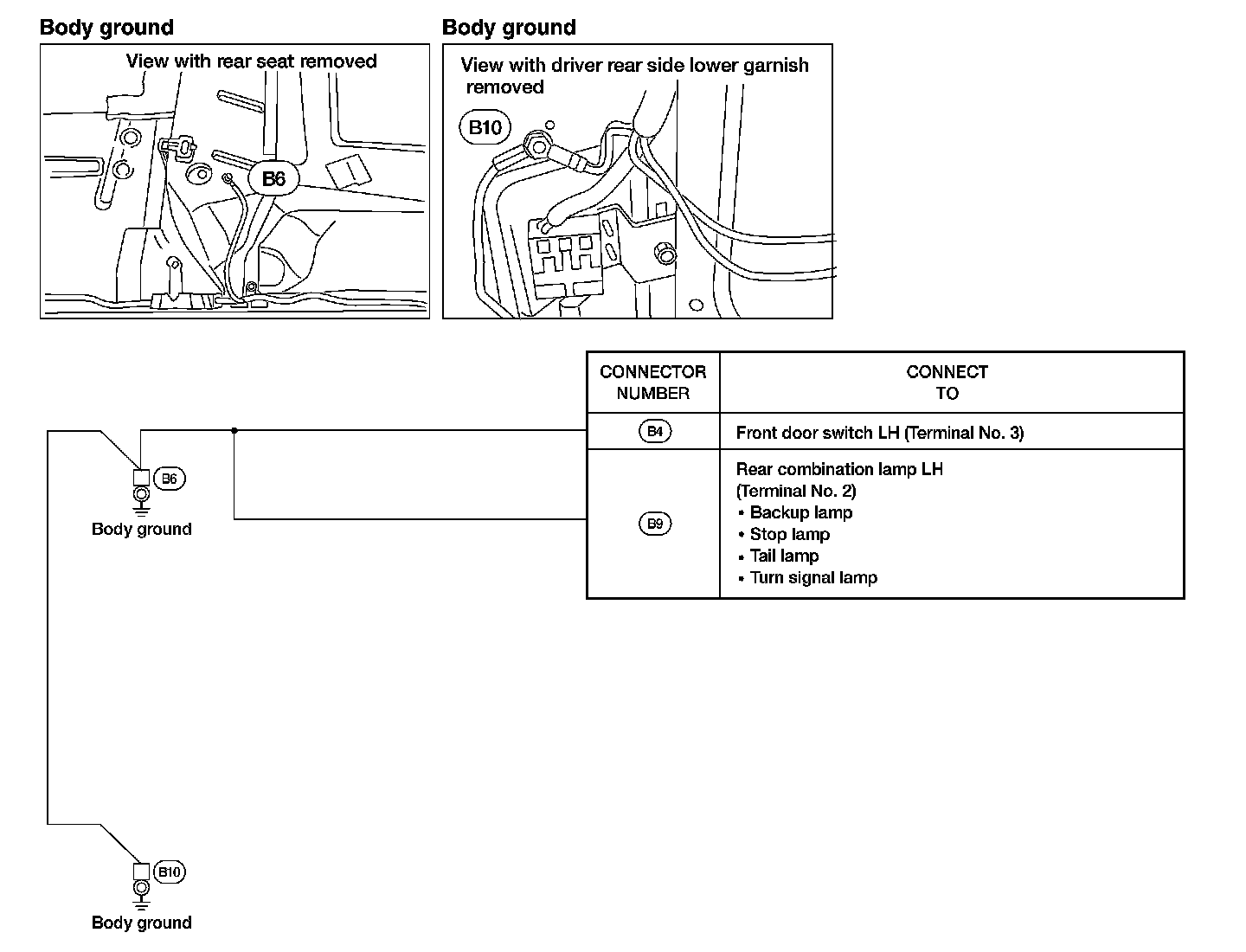

Body Harness:

Body No. 2 Harness:

Back Door No. 2 Harness:
