Home >> Nissan-Datsun Truck >> 2002 >> Xterra XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Starting and Charging >> System Specifications >> Generator

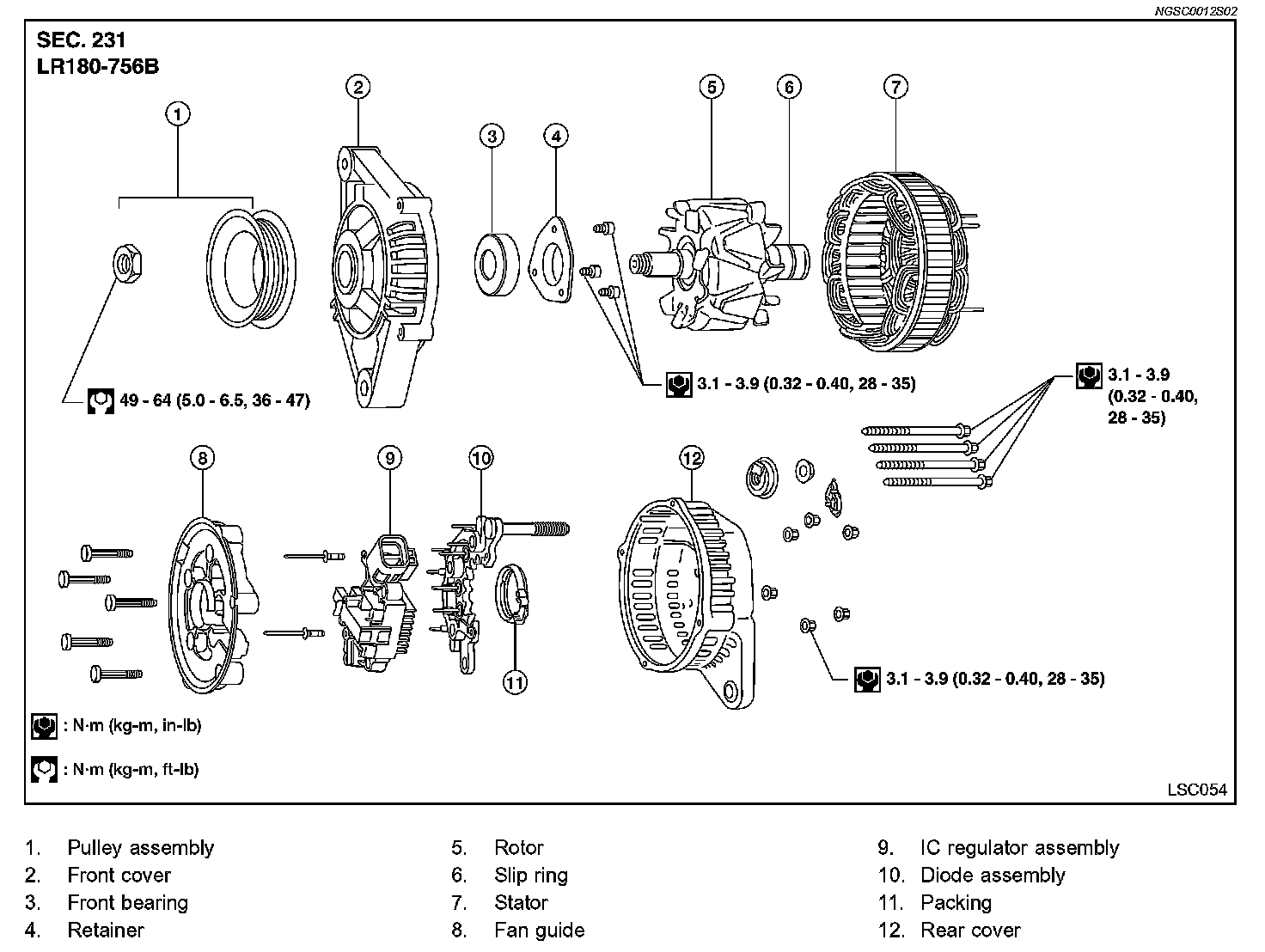

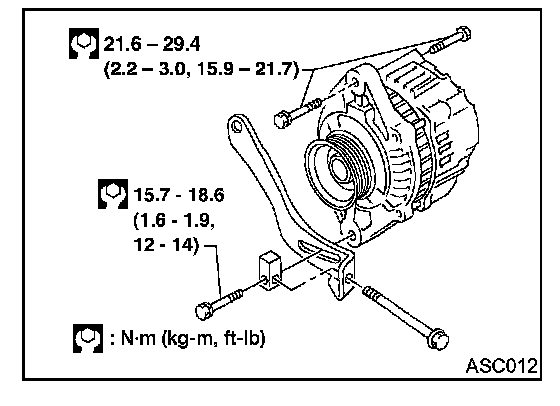

Generator

ALTERNATOR / VG33E & VG33ER:



Generator / VG33E & VG33ER:



Generator:
