Compressor Clutch

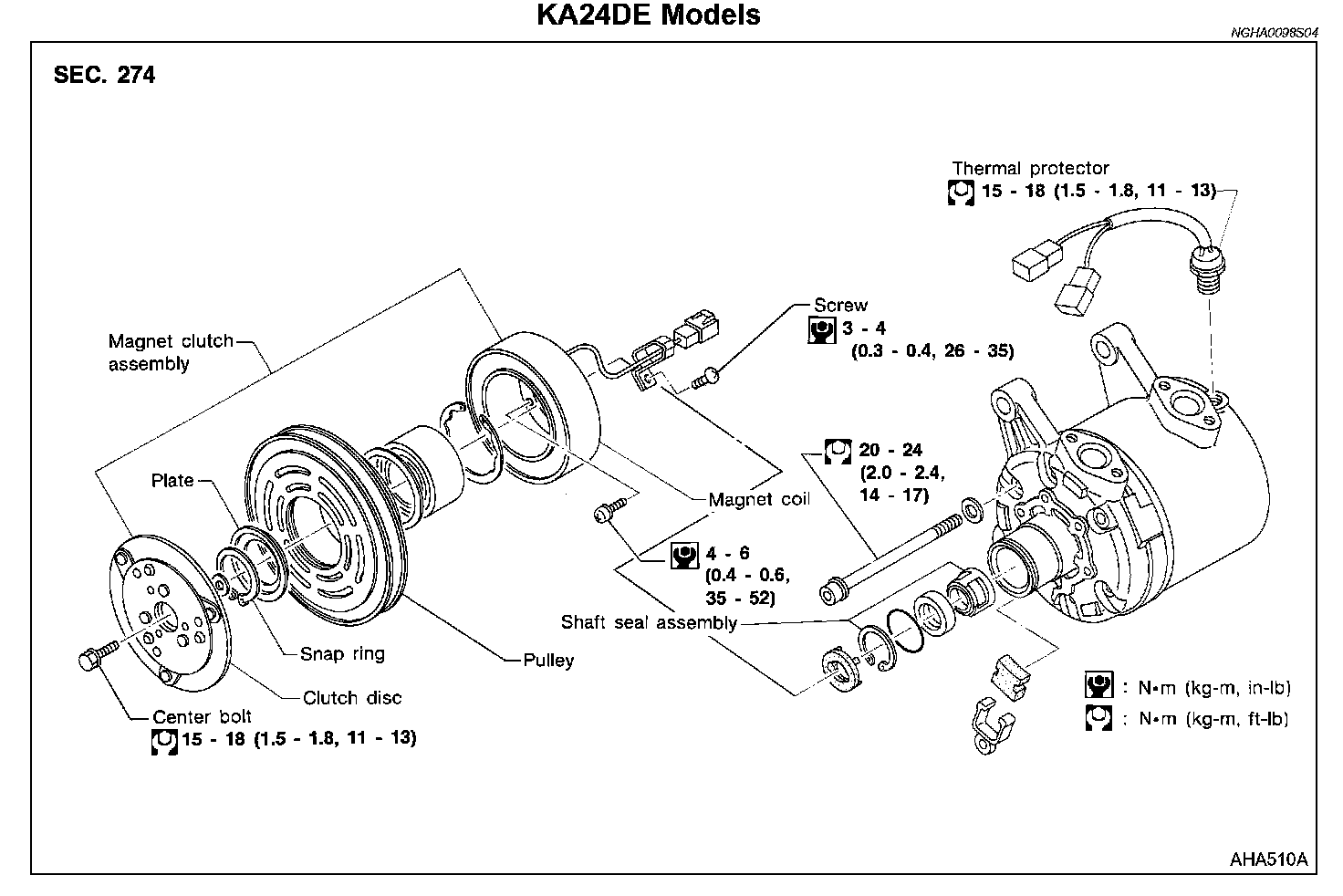

Magnet Clutch Mounting / XTERRA 2.4L (KA24DE):

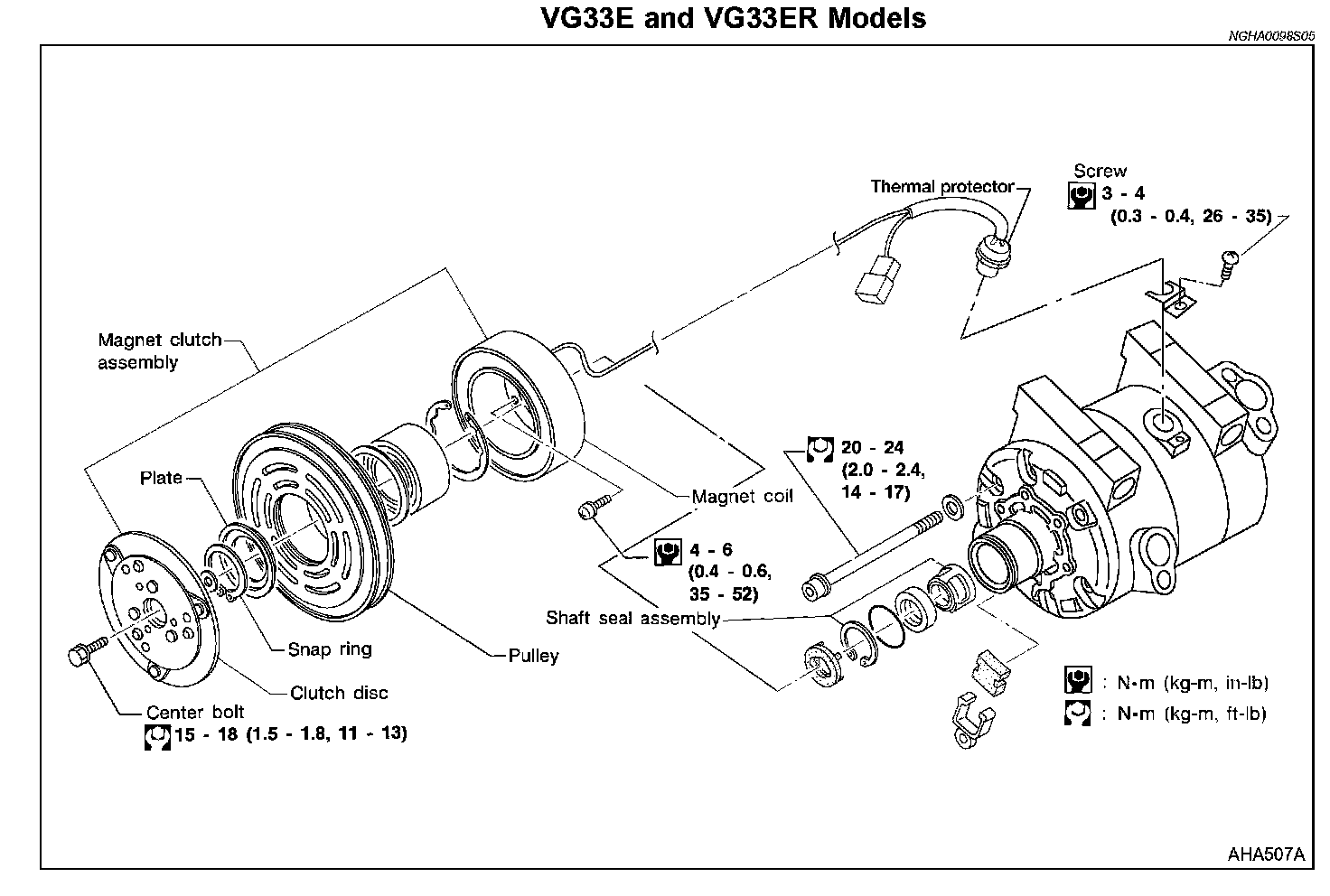

Magnet Clutch Mounting / XTERRA 3.3L (VG33E & VG33ER):

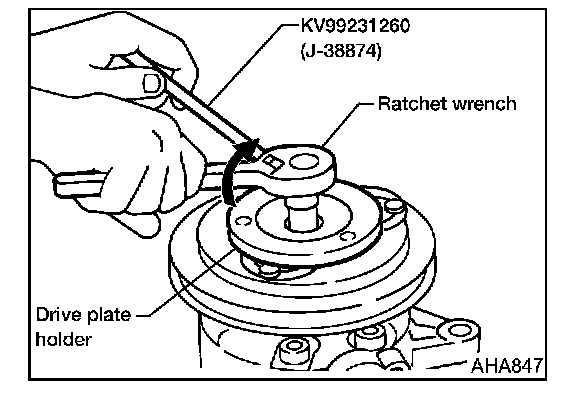

Center Bolt 12 to 15 N.m (1.2 to 1.5 kg-m, 9 to 11 ft-lb)
Disc-to-pulley clearance: 0.3 - 0.6 mm (0.012 - 0.024 in)
Center Bolt 12 to 15 N.m (1.2 to 1.5 kg-m, 9 to 11 ft-lb)
Disc-to-pulley clearance: 0.3 - 0.6 mm (0.012 - 0.024 in)
